product name

Troy-Bilt TPB720 41AJBA-C902 Handheld Product

Model: TPB720 41AJBA-C902

Save
 Part Not Listed?Part Not Listed?
product name

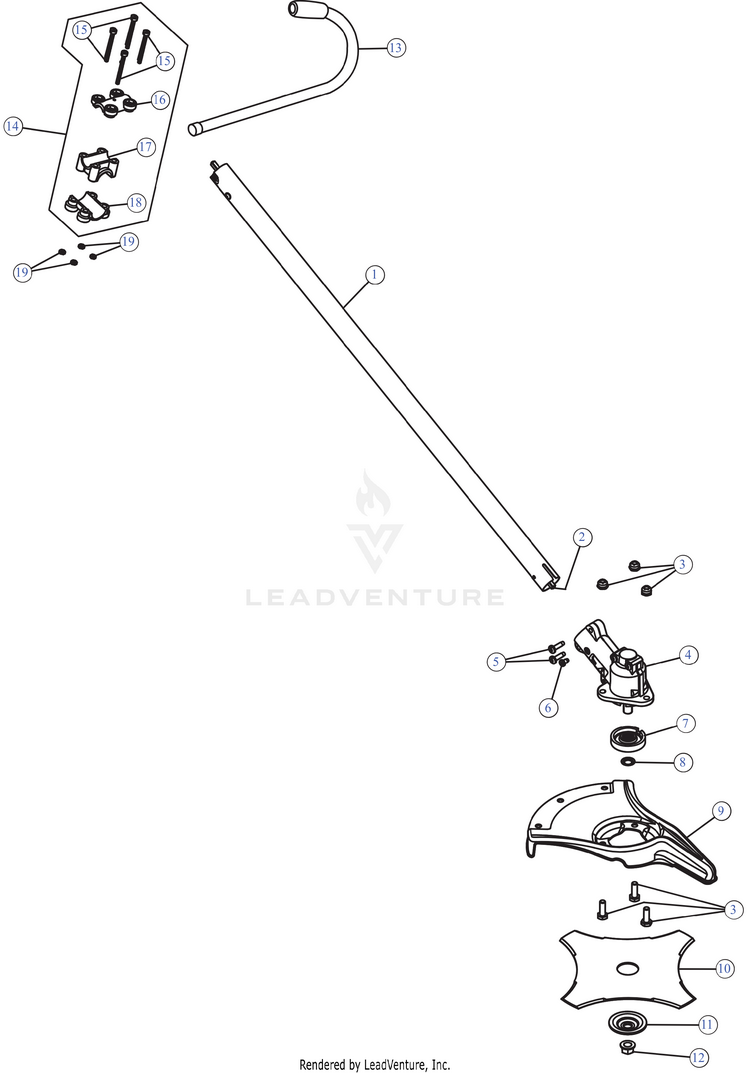

General Assembly

...
...
1
LOWER DRIVE SHAFT HOUSING ASSEMBLY MTD-791-180804
...
2
SHAFT, DRIVE MTD-791-613300
...
3
SCREW SET-GUARD MT MTD-791-182200
...
4
GEARBOX ASSEMBLY (Incl. 5-6) MTD-791-182193
...
5
SCREW #10-24X11/16 T-25 MTD-791-182195
...
6
SCREW, 8-32 x .312 P MTD-791-182519
...
7
SPACER-GEARBOX MTD-791-182196
...
8
PALNUT:3/8" DIAM MTD-753-04348
...
9
SHIELD-BLADE CAST MTD-791-147492
...
10
BLADE 4-TOOTH MTD-791-145873B
...
11
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
12
BLADE LOCK NUT MTD-712-04105
...
13
HANDLE ASSEMBLY-JAY MTD-791-181099
...
14
HANDLE BRACKET ASSEMBLY (Incl. 15-18) MTD-791-683295
...
15
CLAMP SCREW MTD-791-181811
...
16
HANDLE UPPER CLAMP MTD-791-181812
...
17
HANDLE MIDDLE CLAMP MTD-791-181813
...
18
HANDLE LOWER CLAMP MTD-791-181814
...
19
NUT-CLAMP MTD-791-181815
...
xx
KIT, BLADE RETAINING ST SHAFT (Incl. 11 & 12) MTD-791-180014B
...
xx
TOOL-LOCKING ROD MTD-791-613226
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
...
xx
SHOULDER STRAP CLAMP MTD-4301A
...
xx
HANGER MTD-731-08926
...
...
...
