Troy-Bilt TBSS 41AJSS-C966 Handheld Add Ons

Model: TBSS 41AJSS-C966, 41AJSS-C966 TBSS

Save Part Not Listed?
product name

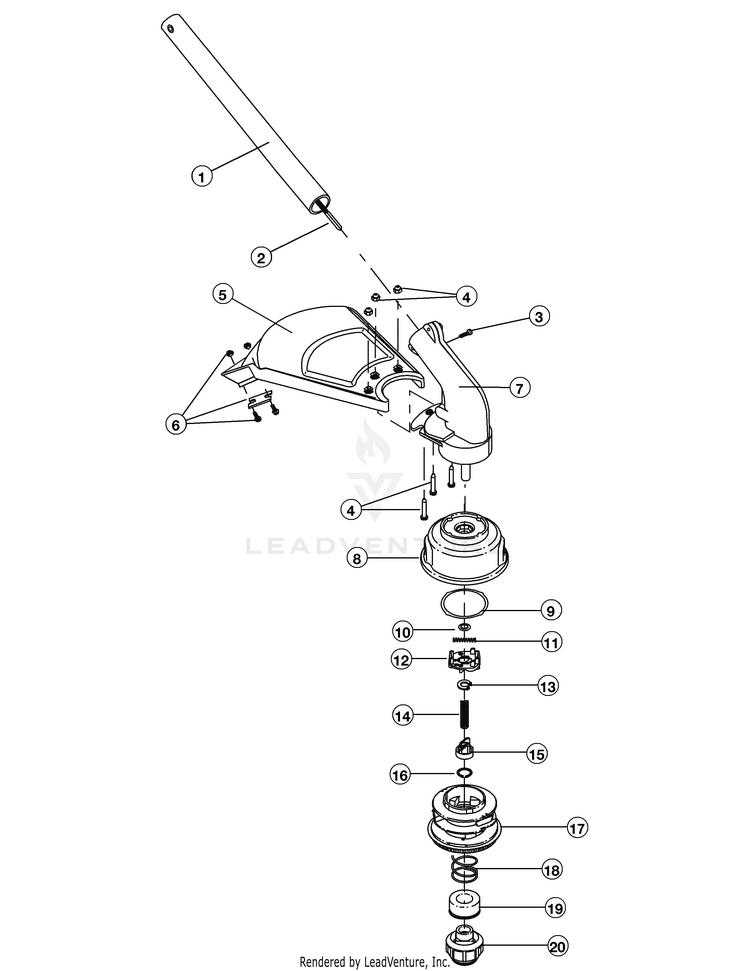

General Assembly

...
...
1
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
2
Lower Flexible Drive Shaft MTD-753-05182
...
3
Anti-Rotation Screw MTD-791-145569
...
4
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
5
ASSEMBLY, GUARD AND BLADE MTD-791-180548
...
6
Blade Assembly MTD-791-682061
...
7
GEARBOX ASSEMBLY SPDSPL MTD-753-05188
...
8
Outer Spool Assembly (includes 10) MTD-791-181457
...
9
Thrust Washer MTD-791-181561
...
10
Retaining Ring MTD-791-181458
...
11
SPRING, SPEED SPOOL S MTD-791-181459
...
12
Slider MTD-753-04257
...
13
E-Clip MTD-791-181532
...
14
SPRING, PLUNGER MTD-791-181531
...
15
PLUNGER, SPEED SPO MTD-791-181462
...
16
C-CLIP MTD-791-181463
...
17
Reel and Line Assembly MTD-791-181460B
...
18
Large Spring MTD-791-181465B
...
19
SEAL, SPEED SPOOL MTD-791-181467
...
20
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly Items Not Shown MTD-791-181460B
...
xx
Reel and Line Assembly Items Not Shown MTD-791-181460B
...
xx
Hanger Items Not Shown MTD-731-08926
