Troy-Bilt TBSS 41AJSS-C063 Handheld Add Ons

Model: TBSS 41AJSS-C063, 41AJSS-C063 TBSS

Save Part Not Listed?
product name

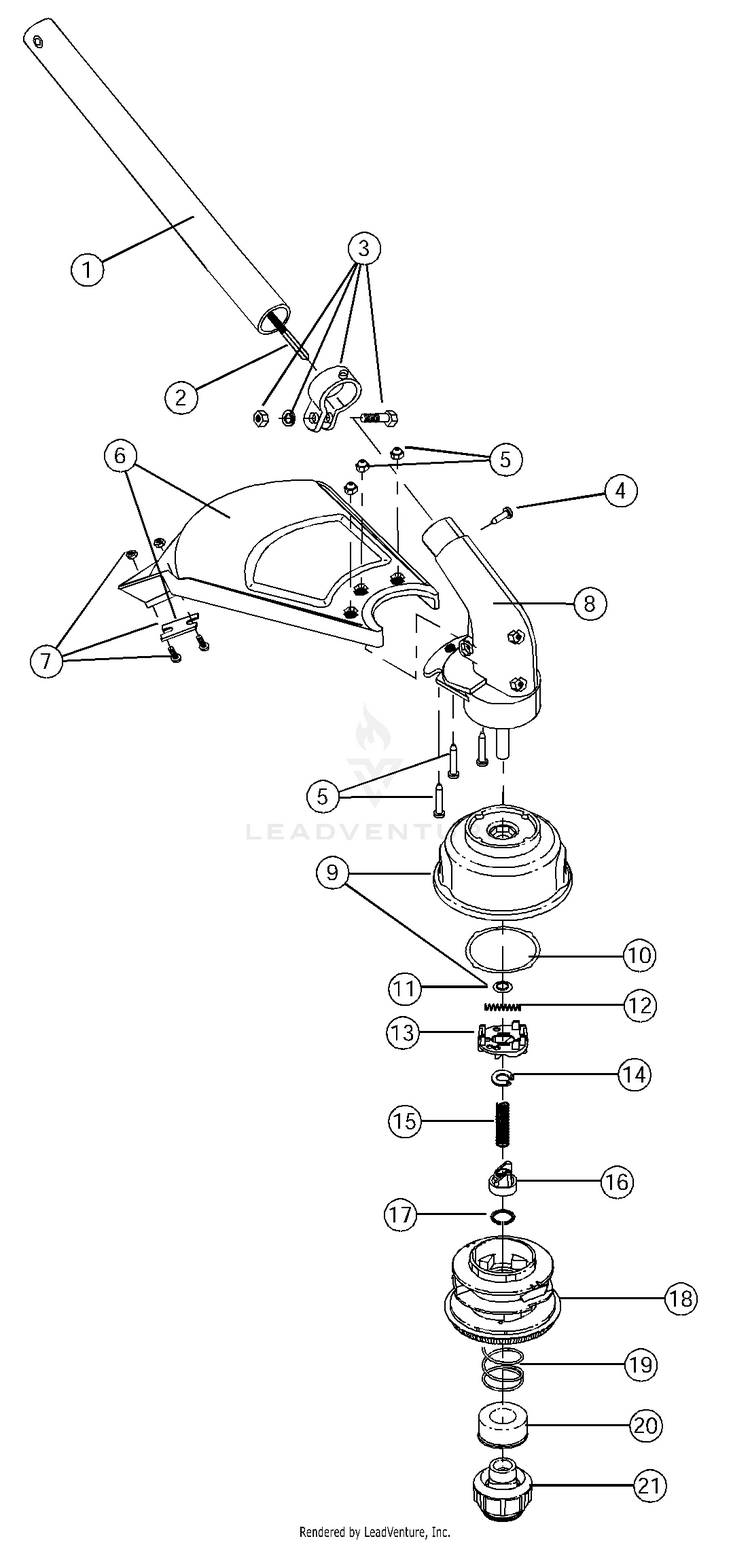

Boom And Trimmer Parts

...
...
1
TRIMMER BOOM ASSEMBLY (includes 2) MTD-753-04089
...
2
Lower Flexible Drive Shaft MTD-791-181166
...
3
CLAMP ASSEMBLY-LOWER (includes 4) MTD-791-153597
...
4
Anti-Rotation Screw MTD-791-145569
...
5
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
6
ASSEMBLY, GUARD AND BLADE (includes 21) MTD-791-180548
...
7
Blade Assembly MTD-791-682061
...
8
SPEED SPOOL GEARBOX ASSEMBLY (includes 9 & 10) MTD-791-181566
...
9
Outer Spool & Eyelet Assembly MTD-791-181457
...
10
Thrust Washer MTD-791-181561
...
11
Retaining Ring MTD-791-181458
...
12
SPRING, SPEED SPOOL S MTD-791-181459
...
13
Slider MTD-753-04257
...
14
E-Clip MTD-791-181532
...
15
SPRING, PLUNGER MTD-791-181531
...
16
PLUNGER, SPEED SPO MTD-791-181462
...
17
C-CLIP MTD-791-181463
...
18
Reel and Line Assembly MTD-791-181460B
...
19
Large Spring MTD-791-181465
...
20
SEAL, SPEED SPOOL MTD-791-181467
...
21
BUMP HEAD KNOB ASSEMBLY (includes 19 & 20) MTD-791-181468B
...
xx
Reel and Line Assembly Optional Accessory; Item MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessory; Item MTD-791-181460B
...
xx
Shoulder Harness Optional Accessory; Item MTD-791-682075B
...
xx
Hanger Optional Accessory; Item MTD-731-08926
...
xx
GEAR BOX ASSEMBLY W/SPINDLE (includes 4, 5, 8-21); Optional Accessory; Item MTD-791-181470
