Troy-Bilt TBPS 41AJPS-C711 Handheld Add Ons

Model: TBPS 41AJPS-C711, 41AJPS-C711 TBPS

Save Part Not Listed?
product name

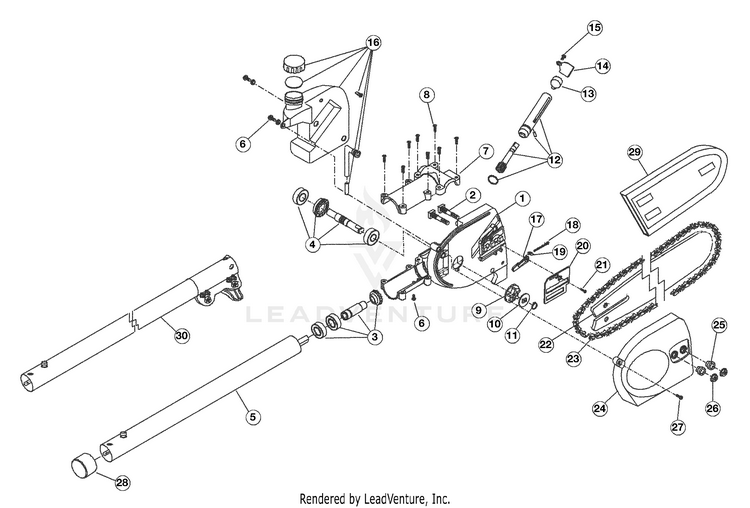

Replacement Parts

...
...
1
GEARBOX MTD-753-04621
...
2
SCREW MTD-753-04622
...
3
SHAFT ASSEMBLY MTD-753-04623
...
4
SPINDLE AS MTD-753-04624
...
5
CONNECTION STICK ASSEMBLY MTD-753-04625
...
6
SCREW MTD-753-04626
...
7
COVER-CASE MTD-753-04627
...
8
SCREW MTD-753-04628
...
9
SPROCKET MTD-753-04629
...
10
WASHER MTD-753-04630
...
11
RING-RETAINER MTD-753-04631
...
12
OIL PUMP ASSEMBLY MTD-753-04632
...
13
CORK-RUBBE MTD-753-04633
...
14
PLATE-FIXE MTD-753-04634
...
15
SCREW MTD-753-04635
...
16
OILER ASSEMBLY MTD-753-04636
...
17
PAD-ANTI SPILLAGE MTD-MC-9014-A10702
...
18
SCREW-BAR ADJUST MTD-MC-6214-210801
...
19
REGULATION CAP MTD-753-04639
...
20
ADJUSTABLE PLATE MTD-753-04640
...
21
SCREW-BAR MTD-753-04641
...
22
BAR 8" MTD-753-04642
...
23
SAW CHAIN MTD-753-04643
...
24
GUARD MTD-753-04644
...
25
FIXED RING MTD-753-04645
...
26
NUT-BAR RETAI MTD-753-04646
...
27
SCREW MTD-753-04647
...
28
COVERING MTD-MC-9105-330301
...
29
GUARD MTD-753-04650
...
30
INNER PIPE MTD-753-04648
