Troy-Bilt TBLE 41AJLE-C711 Handheld Add Ons

Model: TBLE 41AJLE-C711, 41AJLE-C711 TBLE

Save Part Not Listed?
product name

Lawn Edger Add-On

...
...
1
Boom Assembly MTD-753-04259
...
2
Drive Shaft MTD-791-181570
...
3
SCREW #10-24X11/16 T-25 MTD-791-182195
...
4
Anti-Rotation Screw MTD-791-182519
...
5
Guard Mounting Hardware MTD-753-1217
...
6
Gearbox Assembly MTD-753-04258
...
7
Blade Guard MTD-753-04260
...
8
GD:DEFL:EDGER MTD-753-04262
...
9
SPACER MTD-792-10785
...
10
EDGER BLADE MTD-797-00045
...
11
Blade Clamp Washer MTD-791-180014B
...
12
BLADE LOCK NUT MTD-712-04105
...
13
Wheel Bracket Mounting Bolt MTD-753-04270
...
14
Hex Lock Nut, 3/8-16 MTD-712-3000
...
15
BRACKET:GUIDE:EDGER MTD-753-04265
...
16
WHEEL MTD-791-181242
...
17
SHOULDER SCREW 0.498x1.494 3/8-16 MTD-5556
...
18
WASH, FLAT .734 OD MTD-791-182216
...
19
Lock Washer MTD-936-0329
...
20
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
21
KNOB, 1/4- MTD-791-182214
...
xx
Hanger Optional and Not Shown MTD-731-08926
...
xx
Tool Locking Rod Optional and Not Shown MTD-791-613226

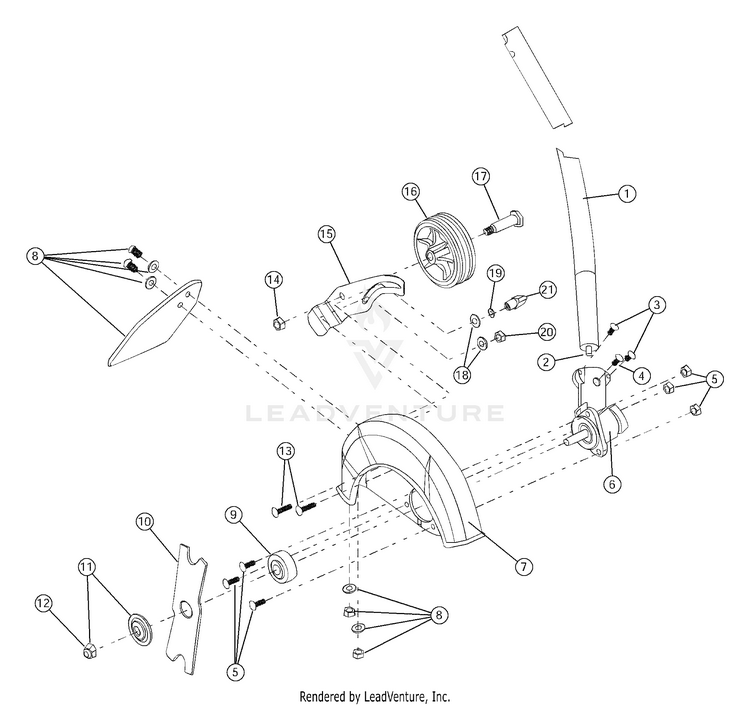

Schematic Image Zoomed
