Troy-Bilt TBE252 41ADE252766 Handheld Product

Model: TBE252 41ADE252766

Save
 Part Not Listed?Part Not Listed?
product name

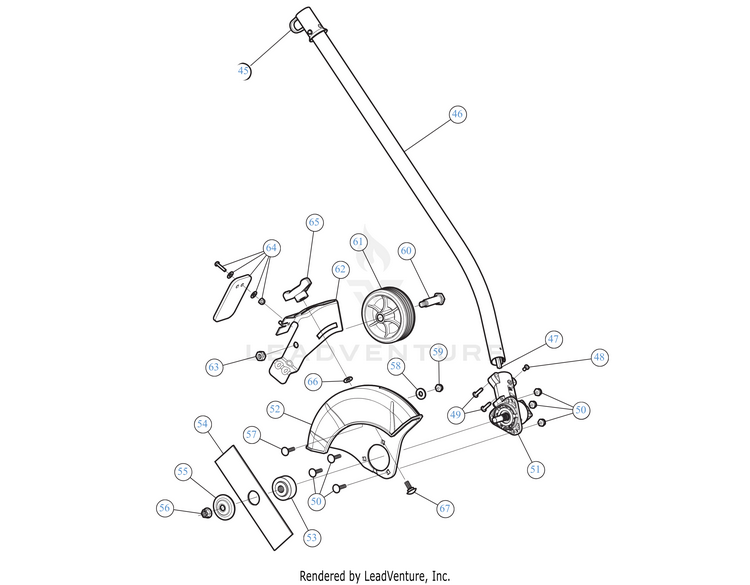

Edger Assembly

...
...
45
PLUG CAP MTD-1831
...
46
BOOM ASSEMBLY LE MTD-753-08036
...
47
LOWER DRIVE SHAFT MTD-753-05267
...
48
SCREW, 8-32 x .312 P MTD-791-182519
...
49
SCREW #10-24X11/16 T-25 MTD-791-182195
...
50
HDWR ASM:GUARD MT MTD-753-1217
...
51
GRBX ASSEMBLY MTD-753-04258
...
52
GUARD MTD-753-08019
...
53
SPACER MTD-792-10785
...
54
EDGER BLADE MTD-797-00045
...
55
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
56
BLADE LOCK NUT MTD-712-04105
...
57
CARRIAGE BOLT 1/4-20 x 1 MTD-710-04063
...
58
FLAT WASHER MTD-3010
...
59
NUT 1/4-20 NYLOC MTD-2952
...
60
SHOULDER SCREW 0.498x1.494 3/8-16 MTD-5556
...
61
WHEEL 3.75" (WHITE) MTD-6356
...
62
BRACKET GUARD MTD-753-08021
...
63
LOCK NUT 3/8-16 MTD-712-3000
...
64
DEFLECTOR W/HDW (with Hardware) MTD-753-08020
...
65
WING KNOB 5/16-18 MTD-720-04124
...
66
WASHER .406X1.0X.095 MTD-736-04107
...
67
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
xx
TOOL-LOCKING ROD MTD-791-613226

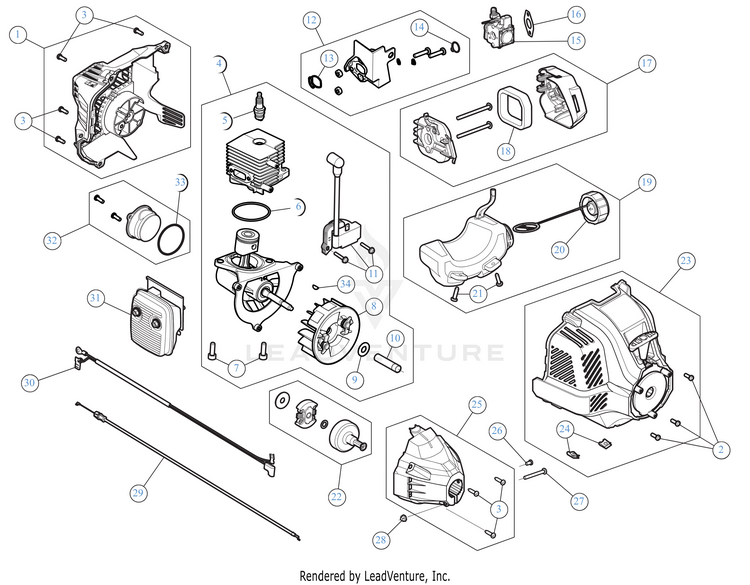

Engine Assembly

...
...
1
REAR ENGINE COVER (Incl. 3) MTD-753-10406
...
2
SCREW #10-24X11/16 T-25 MTD-791-182195
...
3
SCREW 8-16 x 3/4 MTD-710-04194
...
4
SHORT BLOCK 25cc (Incl.  5 - 11 & 32<BR/> - 34) MTD-841P014182S
...
5
SPARK PLUG MTD-753-06847
...
6
O-RING SEAL CYLINDER MTD-753-09085
...
7
SCREW 5/16-18x3/4 T40 MTD-710-06241
...
8
FLYWHEEL ASSEMBLY MTD-753-09125
...
9
BELL WASHER MTD-753-06247
...
10
SPACER :2.165" MTD-750-04434
...
11
MODULE MTD-753-10464
...
12
INTAKE ASSEMBLY (Incl. 13 & 14) MTD-753-09105
...
13
INSL/CYL SEAL MTD-721-04973
...
14
CARBURETOR SEAL MTD-721-04972
...
15
CARBURETOR MTD-753-06190
...
16
GASKET CARB MTD-753-06253
...
17
AIR CLEANER COVER (Incl. 18) MTD-753-10524
...
18
AIR FLITER MTD-753-06417
...
19
FUEL TANK ASSEMBLY (Incl. 20 & 21) MTD-753-06183
...
20
FUEL CAP ASSEMBLY MTD-791-182612
...
21
SCREW:10-6 x .75 MTD-791-181930
...
22
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
23
STARTER HOUSING (Incl. 2 & 24) MTD-753-10644
...
24
NUT, TINNERMAN U-T MTD-791-182366
...
25
CLUTCH COVER (Incl. 3) MTD-753-10405
...
26
SCREW, 8-32 x .312 P MTD-791-182519
...
27
SCREW 10-24 X 1.12 MTD-2986
...
28
HEX NUT MTD-712-0161
...
29
THROTTLE CABLE MTD-746P06311A
...
30
LEAD WIRES MTD-794-00244
...
31
MUFFLER MTD-841P014184S
...
32
CRANKCASE COVER (Incl. 33) MTD-841P014301S
...
33
O-RING SEAL CRANKCASE MTD-753-09086
...
34
WOODRUFF KEY #403-.125 x .375 MTD-914-04016

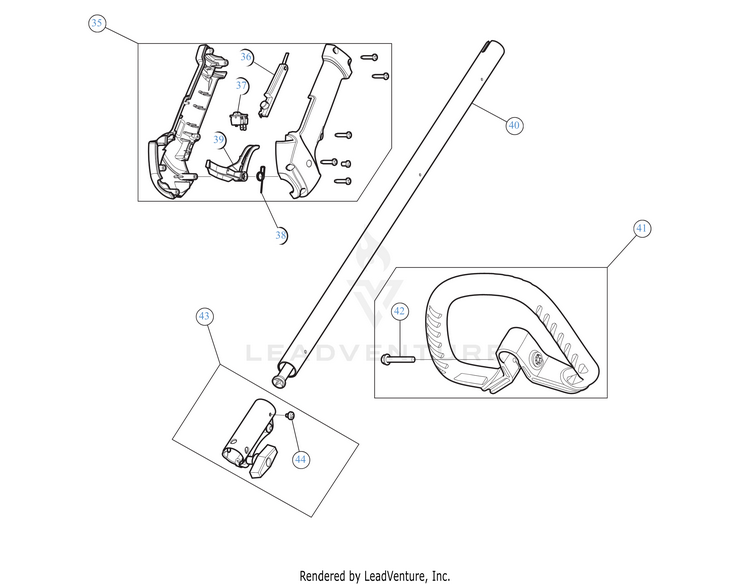

General Assembly

...
...
35
THROTTLE GRIP ASSEMBLY (Incl. 36 - 39) MTD-753-08344
...
36
LEVER LOCK OUT MTD-731-08433C-10
...
37
SW, MOMENTARY ON/O MTD-791-182405
...
38
TRIGGER SPRING MTD-753-05007
...
39
THROTTLE TRIGGER MTD-731-04970B-10
...
40
BOOM ASSEMBLY UPR MTD-753-06880
...
41
HANDLE ASSEMBLY (Incl. 42) MTD-753-06039
...
42
BOLT 1/4-20X1 1/2 MTD-753-06040
...
43
SPLIT BOOM COUPLER KIT (Incl. 44) MTD-753-1190
...
44
SCREW, 10-32X.250 TA MTD-791-182057
...
...
...
