Troy-Bilt TBAH 41AJAH-C966 Handheld Add Ons

Model: TBAH 41AJAH-C966, 41AJAH-C966 TBAH

Save Part Not Listed?
product name

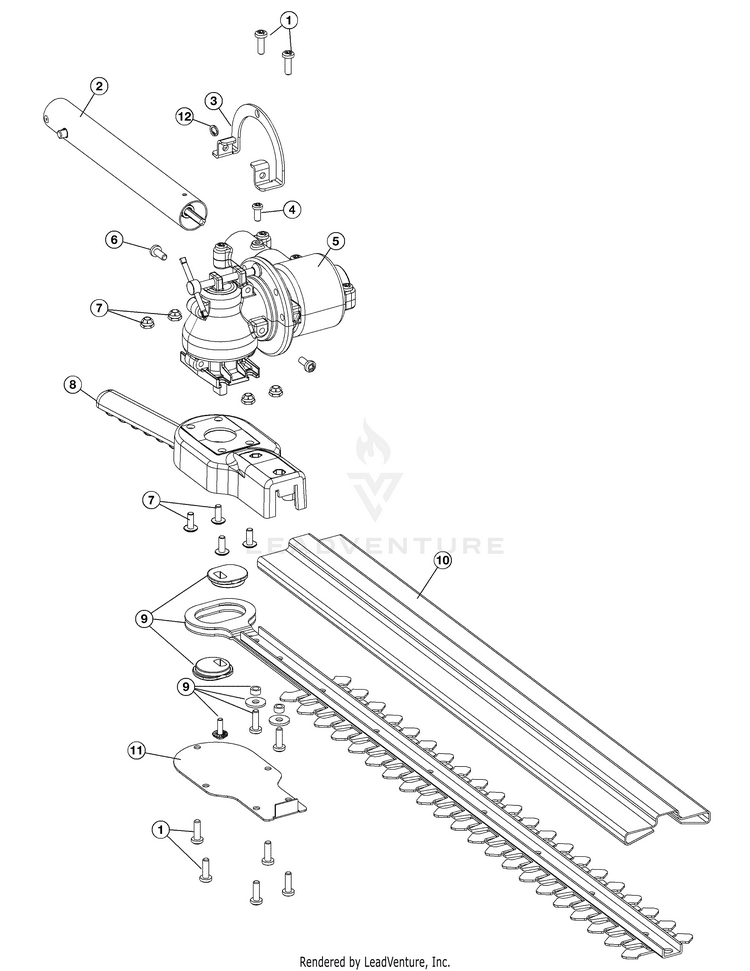

General Assembly

...
...
1
SCREW, 10-24X.625 PH MTD-791-182886
...
2
BOOM ASSEMBLY MTD-753-08007
...
3
INDEXING RING MTD-797-00053
...
4
Anti-Rotation Screw MTD-7039
...
5
GEARBOX ASSEMBLY MTD-753-05618
...
6
SCREW 10-24X.50 MTD-710-04394
...
7
BLADE HOUSING HDW MTD-753-05620
...
8
BLADE HOUSING TOP MTD-753-05621
...
9
BLADE ASSEMBLY MTD-753-05623
...
10
GUARD BLADE MTD-731-05906-1
...
11
BLADE HOUSING BTM MTD-797-00055
...
12
Lock Washer MTD-936-0329
