Troy-Bilt TB75SS 41ADT75C766 Gas Trimmer

Model: TB75SS 41ADT75C766, 41ADT75C766 TB75SS

Back To Assemblies

Save Part Not Listed?
product name

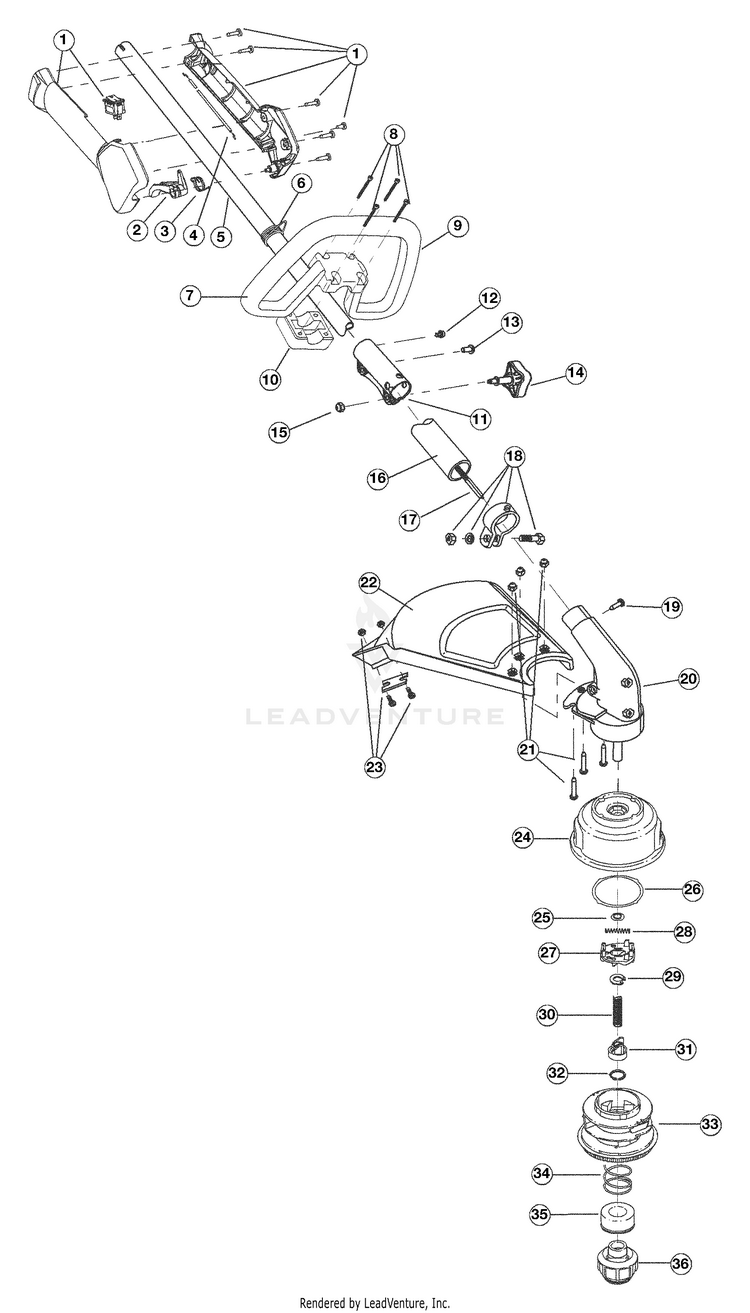

Boom And Trimmer

...
...
1
Throttle Housing Assembly (includes 2 & 3) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Throttle Cable Assembly MTD-791-182877
...
5
Upper Drive Shaft Housing Assembly MTD-753-04236
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Harness Clip MTD-791-610327
...
7
D-HANDLE A (includes 8-10) MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
EZ-Link(TM) Coupler (includes 12-15) MTD-753-1190
...
12
Screw MTD-791-182057
...
13
Bolt MTD-791-181617
...
14
CLICK LINK CLAMP MTD-697-00661-9
...
15
NUT, ELASTIC LOCK MTD-791-181886
...
16
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
17
Lower Flexible Drive Shaft MTD-791-181166
...
18
CLAMP ASSEMBLY-LOWER (includes 19) MTD-791-153597
...
19
Anti-Rotation Screw MTD-791-145569
...
20
GEARBOX ASSEMBLY W/BUMP HEAD MTD-753-04309
...
21
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
22
GUARD & BLADE ASSEMBLY (includes 23) MTD-1A6902
...
23
BLADE ASSEMBLY MTD-791-181823
...
24
Outer Spool Assembly (includes 25) MTD-791-181457
...
25
Retainer MTD-791-181458
...
26
Thrust Washer MTD-791-181561
...
27
Slider MTD-753-04257
...
28
SPRING, SPEED SPOOL S MTD-791-181459
...
29
E-Clip MTD-791-181532
...
30
SPRING, PLUNGER MTD-791-181531
...
31
PLUNGER, SPEED SPO MTD-791-181462
...
32
C-CLIP MTD-791-181463
...
33
Reel and Line Assembly MTD-791-181460B
...
34
Large Spring MTD-791-181465B
...
35
SEAL, SPEED SPOOL MTD-791-181467
...
36
BUMP HEAD KNOB ASSEMBLY (includes 34 & 35) MTD-791-181468B
...
xx
REEL & LINE:RPL:09 Optional Accessory; Item Not Shown MTD-753-04218
...
xx
Shoulder Strap Optional Accessory; Item Not Shown MTD-791-682075B
