Troy-Bilt TB6042XP 41BDZ4PC766 Gas Trimmer

Model: TB6042XP 41BDZ4PC766, 41BDZ4PC766 TB6042 XP

Back To Assemblies

Save Part Not Listed?
product name

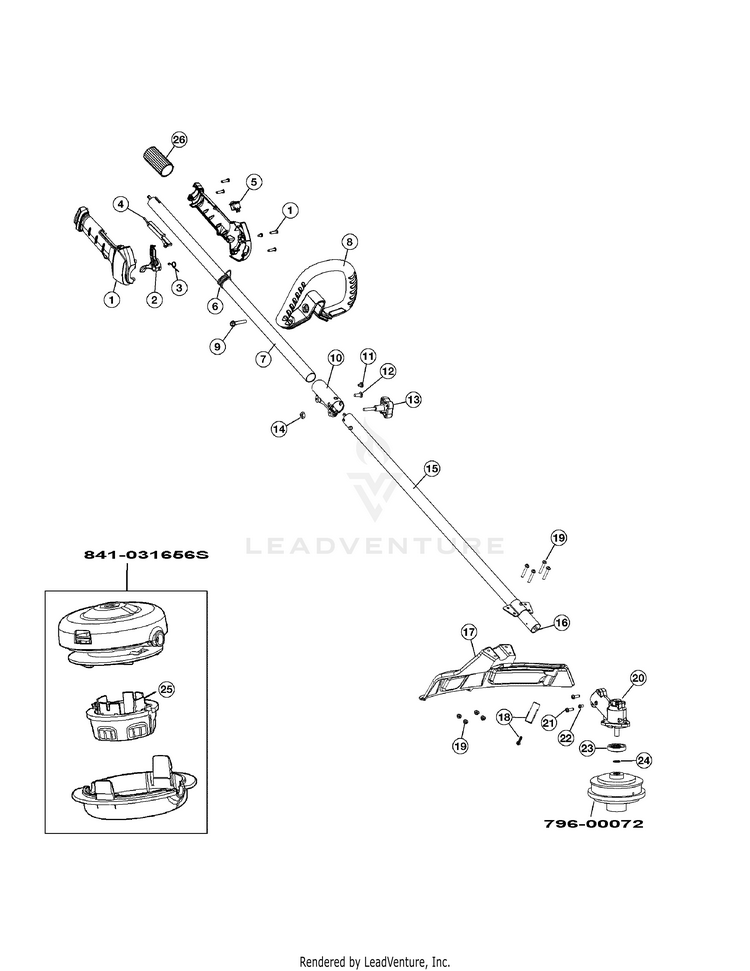

General Assembly

...
...
1
THROTTLE GRIP (Incl. Ref No. 2-5) MTD-753-09645
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
Upper Drive Shaft Housing Assembly MTD-753-04236
...
8
D-Handle Assembly (Incl. Ref No. 9) MTD-753-06039
...
9
Bolt MTD-753-06040
...
10
Split Boom Coupler (Incl. Ref No. 11-14) MTD-753-1190
...
11
Coupler Anti-Rotation Screw MTD-791-182057
...
12
Screw MTD-791-181617
...
13
CLICK LINK CLAMP MTD-697-00661-9
...
14
Knob Retaining Nut MTD-712-04018A
...
15
Lower Drive Shaft Housing Assembly MTD-753-08164
...
16
LOWER DRIVE SHAFT MTD-753-05267
...
17
Shield Assembly (Incl. Ref No. 18) MTD-753-05820
...
18
Blade Assembly MTD-753-05821
...
19
Shield Mounting Screw & Nut MTD-753-05822
...
20
Gearbox MTD-791-182193
...
21
SCREW #10-24X11/16 T-25 MTD-791-182195
...
22
Anti-Rotation Screw MTD-791-182519
...
23
Blade Driver MTD-791-182196
...
24
Palnut MTD-753-04348
...
25
Bump Knob MTD-753-08163
...
26
SPACER (If equipped) MTD-753-06168
...
841-031656S
Cutting Head Assembly (replaces 796-00072) (includes 25) MTD-841-032392S
...
796-00072
Cutting Head Assembly MTD-841-032392S
...
xx
ROUND LINE-.095 (Optional Accessory)(not shown) MTD-49U2341K953
...
xx
Maxi Edge .095, 200' Trimmer Line (Optional Accessory)(not shown) MTD-WLM-195
