Troy-Bilt TB6040XP 41DD604C966 Gas Trimmer

Model: TB6040XP 41DD604C966, 41DD604C966 TB6040XP

Back To Assemblies

Save Part Not Listed?
product name

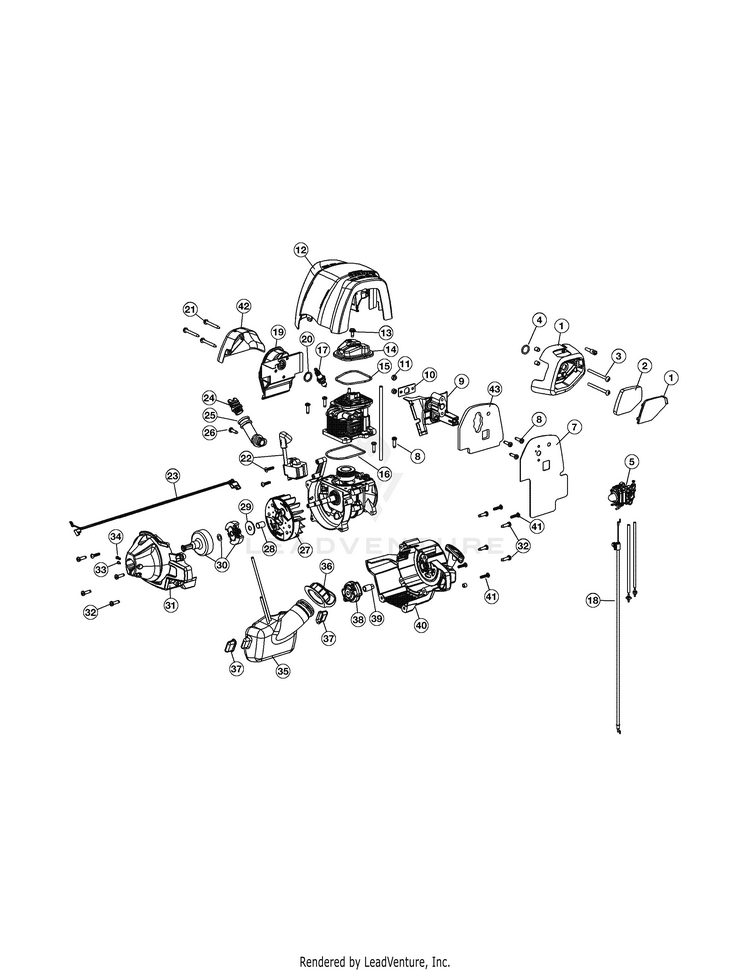

Engine Assembly

...
...
1
AIR CLEANER ASSEMBLY (Incl. Ref No. 2) MTD-753-06084
...
2
Air Filter MTD-753-06085
...
3
Screw MTD-710-04517
...
4
Carburetor O-Ring MTD-791-181751
...
5
Carburetor Assembly MTD-753-06083
...
5
Carburetor Gasket (not shown) MTD-791-181709
...
7
Carburetor Baffle MTD-753-06082
...
8
SCREW, M5 X18 MTD-9052-1
...
9
Insulator MTD-753-05904
...
10
Insulator Gasket MTD-753-05673
...
11
Nut MTD-712-04099
...
12
ENGINE COVER AC5 MTD-753-06369
...
13
Screw MTD-791-181025
...
14
Valve Cover MTD-753-05901
...
15
Valve O-Ring MTD-753-05902
...
16
Cylinder O-Ring MTD-753-05910
...
17
Spark Plug MTD-794-00082
...
18
Throttle Cable MTD-753-06166
...
19
Muffler Assembly MTD-753-06334
...
20
Muffler Gasket MTD-753-05244
...
21
SCREW M5 x 44MM MTD-710-04809
...
22
Module Assembly MTD-753-05907
...
23
Lead Wire MTD-794-00047A
...
24
Oil Plug (Incl. 5) MTD-753-05408
...
25
OIL FILL TUBE (includes 26) MTD-753-06087
...
26
SCREW M5X0.8 MTD-710-04604A
...
27
FLYWHEEL AC4 MTD-753-05815
...
28
Spacer MTD-753-05814
...
29
Clutch Washer MTD-9162-1
...
30
Clutch Assembly MTD-753-05860
...
31
Clutch Cover Assembly MTD-753-06335
...
32
SCREW M5X0.8 MTD-710-04604A
...
33
Anti Rotation Screw MTD-791-182519
...
34
SCREW:CLMPNG W/NUT MTD-753-04291
...
35
Fuel Tank (Incl. Ref No. 36) MTD-753-06093
...
36
Fuel Cap MTD-753-05289
...
37
Fuel Tank Pad MTD-753-05259
...
38
Pawl Assembly MTD-753-06091
...
39
Electric Start Adapter MTD-753-06104
...
40
Starter Cover Assembly MTD-753-06108
...
41
Screw MTD-710-04194
...
42
MUFFLER SHLD MTD-753-06101
...
43
HEAT SHLD CARB AC5 MTD-753-06122
...
xx
SHORT BLOCK (not shown) MTD-753-06088
