product name

Troy-Bilt TB51BP 41AR51BP866 Gas Blowers

Model: TB51BP 41AR51BP866

Save
 Part Not Listed?Part Not Listed?
product name

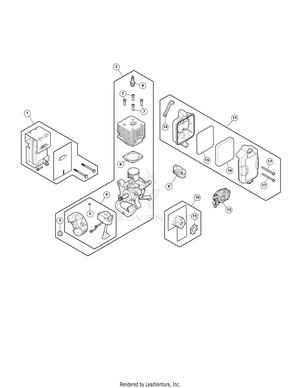

Engine Assembly

...
...
1
MUFFLER MTD-753-11137
...
2
SHORTBLOCK (Incl. 3 - 8) MTD-753-11138
...
3
NUT 3/8-24 MTD-712-04137
...
4
FLYWHEEL/MODULE (W/KEY) (Incl. 5) MTD-753-11373
...
5
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
...
6
CYLINDER GASKET MTD-753-11191
...
7
SCREW MTD-710-11494
...
8
SPARK PLUG MTD-794-00046
...
9
PAWL ASSEMBLY MTD-753-11141
...
10
INTAKE (Incl. 11) MTD-753-11142
...
11
INTAKE GASKET MTD-753-11143
...
12
CARBURETOR MTD-751-20089
...
13
AIR CLEANER (Incl. 14 - 17) MTD-753-11144
...
14
CHOKE LEVER MTD-731-22551-10
...
15
PRE FILTER MTD-753-11153
...
16
AIR FILTER MTD-753-11154
...
17
SCREW 10-32X2.5 MTD-710-04517

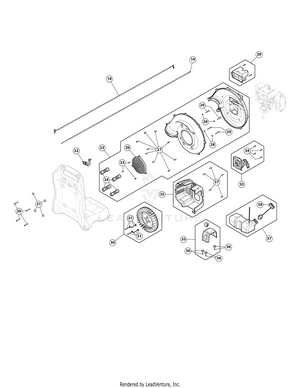

General Assembly

...
...
18
WIRE LEAD MTD-753-11196
...
19
THROTTLE CABLE MTD-753-06434
...
20
SCREW MTD-9689A
...
21
FLAT WASHER 0.195X0.810X0.062 MTD-753-11195
...
22
TETHER STRAP MTD-727-05494
...
23
IMPELLER (incl. 20, 24 - 28) MTD-753-11193
...
24
INSULATOR MOUNT MTD-753-11159
...
25
SCREW-10-9 x .50 MTD-1755
...
26
INTAKE COVER MTD-753-11160
...
27
SCREW 8-16 x 3/4 MTD-710-04194
...
28
WASH, FLAT .437X.2 MTD-791-182409
...
29
ENGINE VENT MTD-753-11155
...
30
IMPELLER ASSEMBLY (Incl. 31) MTD-841-015063S
...
31
IMPELLER HARDWARE MTD-753-11161
...
32
ENGINE COVER (Incl. 27) MTD-753-11194
...
33
STARTER (Incl. 34) MTD-753-11162
...
34
SCREW #10-24X11/16 T-25 MTD-791-182195
...
35
FUEL TANK BRACKET (Incl. 36) MTD-753-11164
...
36
FUEL TANK BRACKET HARDWARE MTD-753-11163
...
37
FUEL TANK (Incl. 38) MTD-753-11165
...
38
FUEL CAP MTD-753-06857

Harness

...
...
39
RIVET .70X.80 MTD-728-05208
...
40
BACK PAD MTD-727-05823
...
41
BACKPACK BLOWER FRAME MTD-731-27479
...
42
BACKPACK BLOWER STRAP MTD-727-05850

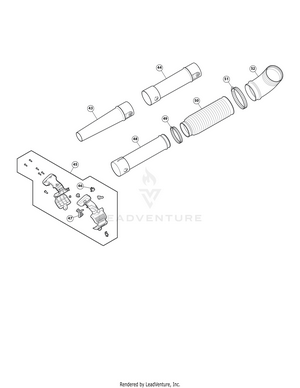

Throttle & Nozzle

...
...
43
LOWER TUBE MTD-731-22356
...
44
UPPER TUBE MTD-731-22355
...
45
THROTTLE GRIP ASSEMBLY (Incl. 46 & 47) MTD-753-11192
...
46
MOMENTARY SWITCH ON/OFF MTD-725-05280
...
47
TRIGGER MTD-731-06509-10
...
48
TUBE GRIP W/SWIVEL MTD-631-07579
...
49
HOSE CLAMP MTD-726-04080
...
50
FLEX TUBE MTD-731-22351
...
51
CLAMP MTD-726-05432
...
52
ELBOW TUBE MTD-731-22354
...
...
...
