Troy-Bilt TB4HBEC 41AS4ESG766 Gas Blower

Model: TB4HBEC 41AS4ESG766, 41AS4ESG766 TB4HB EC

Save Part Not Listed?
product name

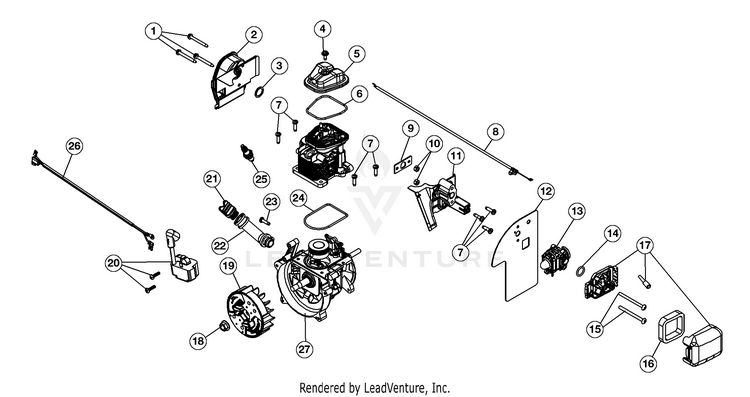

Engine Assembly

...
...
1
SCREW M5 x 44MM MTD-710-04809
...
2
MUFFLER ASSEMBLY MTD-753-05900
...
3
Muffler Gasket MTD-753-05244
...
4
Screw MTD-791-181025
...
5
Rocker Cover MTD-753-05901
...
6
O-Ring MTD-753-05902
...
7
SCREW, M5 X18 MTD-9052-1
...
8
Throttle Cable MTD-753-05903
...
9
Insulator Gasket MTD-753-05673
...
10
Nut MTD-712-04099
...
11
Insulator MTD-753-05904
...
12
Carburetor Gasket MTD-753-05905
...
13
CARB AC5 MTD-753-05908
...
14
Carburetor O-Ring MTD-791-181751
...
15
Screw MTD-710-04517
...
16
Air Filter MTD-791-181757
...
17
Air Cleaner Assembly (Incl. 16) MTD-753-04223
...
18
Nut MTD-712-04137
...
19
FLYWHEEL ASSEMBLY MTD-753-05906
...
20
Module MTD-753-05907
...
21
Oil Plug (Incl. 5) MTD-753-05408
...
22
OIL TUBE ASM AC4 NLAUD MTD-753-05682
...
23
SCREW M5X0.8 MTD-710-04604A
...
24
O-Ring MTD-753-05910
...
25
Spark Plug MTD-794-00082
...
26
Lead Wire MTD-753-05911
...
xx
Short Block Assembly (Incl. 4-7 & 21-25) (not shown) MTD-753-06677
...
xx
Electric Start Accessory (not shown) MTD-625-04120
...
xx
START CHUCK (TROY-BILT) (not shown) MTD-49MASCBP966

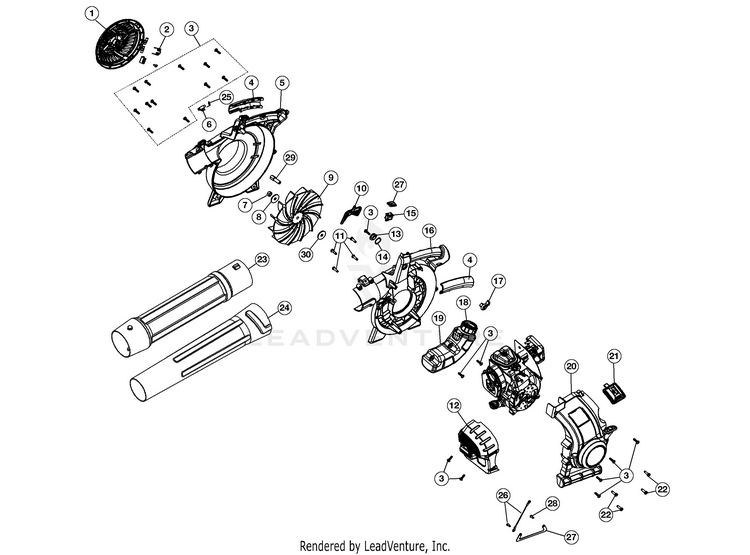

General Assembly

...
...
1
COVER ASSEMBLY INTAKE MTD-753-06719
...
2
Spring MTD-753-05918
...
3
Screw MTD-710-04194
...
4
Handle Grips MTD-753-05919
...
5
Impeller Housing (Incl. 4) MTD-753-06679
...
6
Latch Tube MTD-753-05926
...
7
Nut MTD-753-05927
...
8
Washer MTD-753-06444
...
9
Impeller MTD-753-05929
...
10
THROTTLE TRIGGER MTD-753-05930
...
11
SCREW, M5 X18 MTD-9052-1
...
12
COVER MUFFLER MTD-753-05931
...
13
Inner Trigger Lock MTD-753-05924
...
14
Wave Washer, .65 ID x .855 x .010 MTD-736-04353
...
15
Switch MTD-791-182405
...
16
Impeller Housing MTD-753-06693
...
17
Outer Trigger Lock MTD-753-05932
...
18
Fuel Cap MTD-753-05289
...
19
Fuel Tank Assembly (Incl. 18) MTD-753-05933
...
20
ENGINE COVER ASSEMBLY MTD-753-05941
...
21
Spark Plug Cover MTD-753-05935
...
22
SCREW M5X0.8 MTD-710-04604A
...
23
Upper Tube MTD-753-05936
...
24
Lower Tube MTD-753-05937
...
25
Latch Spring MTD-753-05939
...
26
Wire Ground MTD-753-05964
...
27
STRAP GROUND MTD-753-05965
...
28
Screw MTD-1755
...
29
Adapter MTD-753-06700
...
30
Spacer MTD-753-06806
