Troy-Bilt TB4BVEC 41AS4BVG866 Gas Blower

Model: TB4BVEC 41AS4BVG866, 41AS4BVG866 TB4BVEC

Back To Assemblies

Save Part Not Listed?
product name

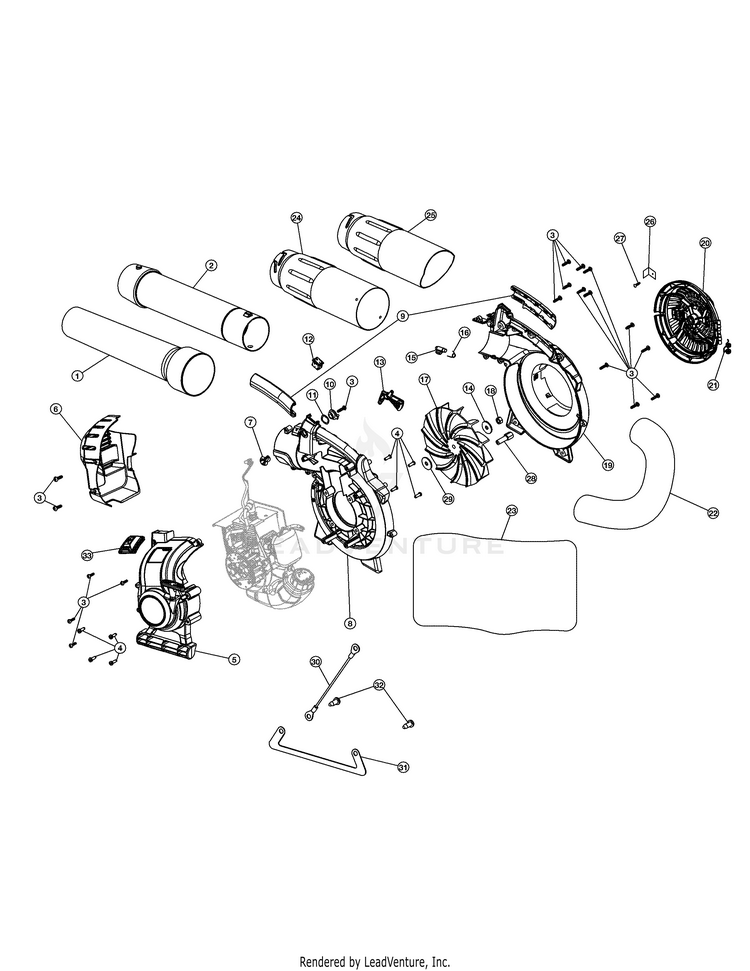

General Assembly

...
...
1
Lower Tube MTD-753-05937
...
2
Upper Tube MTD-753-05936
...
3
Screw MTD-710-04194
...
4
SCREW M5X0.8 MTD-710-04604A
...
5
Engine Cover Assembly (Incl. 3, 4 & 33) MTD-753-06853
...
6
COVER MUFFLER MTD-753-05931
...
7
Outer Trigger Lock MTD-753-06980
...
8
Impeller Housing MTD-753-06693
...
9
Handle Grips MTD-753-06711
...
10
Inner Trigger Lock MTD-753-06979
...
11
Wave Washer, .65 ID x .855 x .010 MTD-736-04353
...
12
Switch MTD-791-182405
...
13
Throttle Trigger MTD-753-06981
...
14
Washer MTD-753-05928
...
15
Latch Tube MTD-753-05926
...
16
Latch Spring MTD-753-05939
...
17
Impeller MTD-753-05929
...
18
Nut MTD-912-0237
...
19
Impeller Housing MTD-753-06679
...
20
INTAKE COVER MTD-753-07013
...
21
Spring MTD-753-05918
...
22
Elbow MTD-753-06658
...
23
Bag MTD-753-06659
...
24
Upper Vac Tube MTD-753-06660
...
25
Lower Vac Tube MTD-791-180467
...
26
Door Lock MTD-753-06696
...
27
Screw MTD-1755
...
28
Adapter MTD-753-06700
...
29
Spacer MTD-753-06806
...
30
Wire Ground MTD-753-05964
...
31
STRAP GROUND MTD-753-05965
...
32
Screw MTD-1755
...
33
Spark Plug Cover MTD-753-05935
