Troy-Bilt TB4620H XP 41AY46HS766 Handheld Product

Model: TB4620H XP 41AY46HS766

Save
 Part Not Listed?Part Not Listed?
product name

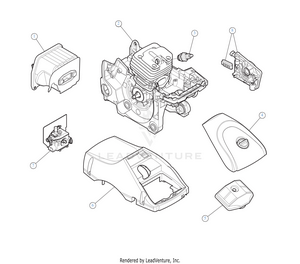

Engine Assembly

...
...
1
MUFFLER ASSEMBLY MTD-953-08106
...
2
SHORTBLOCK 46CC MTD-953-08217
...
3
SPARK PLUG:L8RTF YD4500-26200 MTD-953-08107
...
4
AIR FILTER COVER ASSEMBLY MTD-953-08129
...
5
AIR FILTER W/SEAL MTD-953-08134
...
6
COVER (with Plate and Screws (x5)) MTD-953-08135
...
7
CARBURATOR MTD-953-08137
...
8
OIL PUMP MTD-753-11219

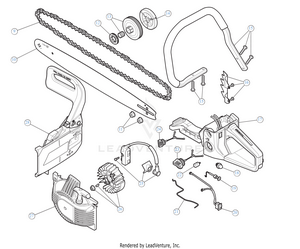

General Assembly

...
...
9
20" CHAINSAW CHAIN MTD-913-05044
...
10
20" GUIDE BAR MTD-795-01026
...
11
BAR NUT M8 MTD-953-08105
...
12
SPROCKET MTD-953-08219
...
13
CLUTCH DRUM ASSEMBLY MTD-953-08220
...
14
CLUTCH ASSEMBLY MTD-953-08145
...
15
HANDLE ASSEMBLY (with Screws (x4)) MTD-953-08130
...
16
SPIKE PLATE W/HDW MTD-953-08128
...
17
FUEL HOUSING ASSEMBLY MTD-953-08142
...
18
PRIMER BULB YD2500-18410 MTD-953-08127
...
19
CHOKE LEVER MTD-753-11111
...
20
SWITCH ASSEMBLY MTD-953-08223
...
21
THROTTLE ROD MTD-953-08132
...
22
FUEL FILTER YD4600-18034 MTD-953-08123
...
23
FUEL CAP ASSEMBLY MTD-753-08133
...
24
OIL CAP ASSEMBLY MTD-953-08222
...
25
MODULE (with Screws (x2)) MTD-953-08138
...
26
FLYWHEEL MTD-953-08131
...
27
STARTING HOUSING MTD-753-11108
...
28
BRAKE MTD-753-11110
...
...
...
