Troy-Bilt TB45E 41ACT45P966 Trimmer

Troy-Bilt TB45E 41ACT45P966 Trimmer

Model: TB45E 41ACT45P966, 41ACT45P966 TB45E

Save Part Not Listed?

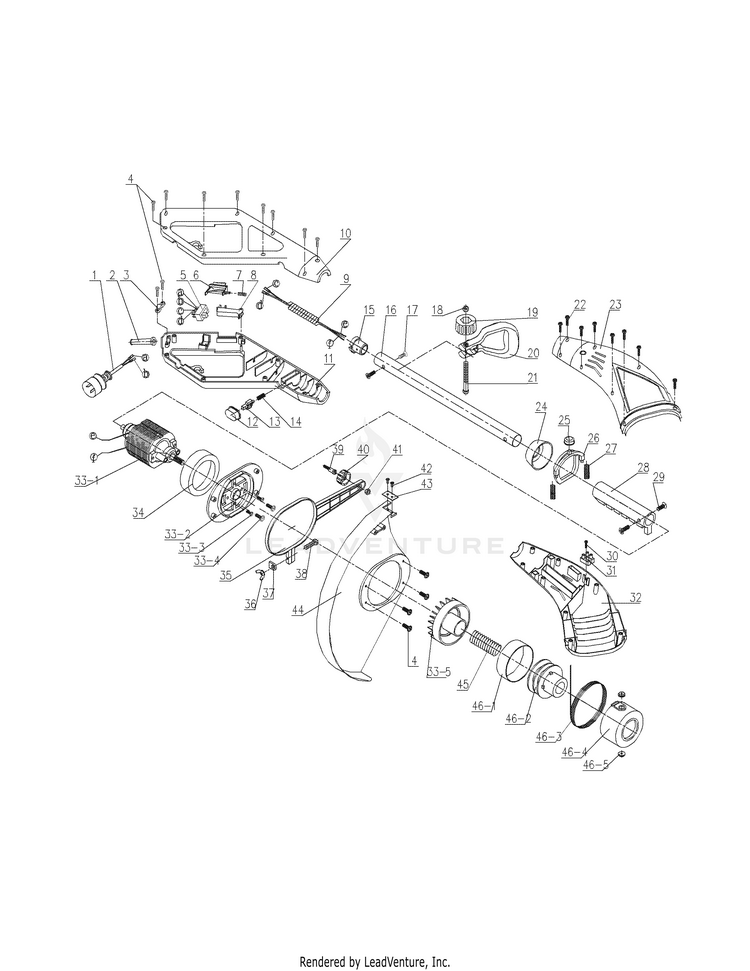

General Assembly

1

CORD:POWER MTD-MC-6011-202A02

2

GUARD:CORD MTD-MC-6199-202A01

3

GASK MTD-MC-6043-202A01

4

SCREW MTD-MC-6SDABB04-14

5

SW MTD-MC-6022-202A01

6

TRIG MTD-MC-6134-202A01

7

SPRING MTD-MC-6024-202A01

8

TRIG MTD-MC-6134-202A02

9

WIRE MTD-MC-6010-202A01

10

UPPER HANDGRIP (R)-MTD RED MTD-MC-6068-202A04

11

UPPER HANDGRIP (L)-MTD RED MTD-MC-6068-202A03

12

BUTTON MTD-MC-6056-202A03

13

LEVER MTD-MC-6021-202A01

14

SPRING MTD-MC-6024-202A02

15

PIPE:JOIN MTD-MC-6131-202A01

16

TUBE:CENTR MTD-MC-6129-202A01

17

SCREW MTD-MC-6SDABB04-06

18

NUT MTD-MC-6NGB-06

19

KNOB MTD-MC-6056-230302

20

HANDLE MTD-MC-6196-202601

21

SCREW MTD-MC-6SHDB-06-52

22

SCREW MTD-MC-6SDABB04-18

23

HOUSING:R MTD-MC-6038-202A03

24

JACKET MTD-MC-6059-202A01

25

BUTTON MTD-MC-6056-202A04

26

RING:FIXED MTD-MC-6239-202A01

27

SPR MTD-MC-6024-202A03

28

RING:EXPAN MTD-MC-6131-202A02

29

SCREW MTD-MC-6SVABB04-10

30

SCREW MTD-MC-6SDABA03-16

31

BLOCK:TERM MTD-MC-6041-840001

32

HOUSING:L MTD-MC-6038-202A04

33-1

MTR MTD-MC-6099-202B01

33-2

PLATE:FIXED MTD-MC-6187-202A01

33-3

SCREW MTD-MC-6SADB-03-12

33-4

SCREW MTD-MC-6SADB-04-12

33-5

WHEEL PLATE MTD-MC-6270-202003

34

RING:CUSHO MTD-MC-6131-202A04

35

RING CUSHO MTD-MC-6114-202A02

36

NUT MTD-MC-6NBB-06

37

PLATE:CORD P MTD-MC-6043-815501

38

SCREW MTD-MC-6SXDB-06-20

39

SHAFT PIN MTD-MC-6115-202A01

40

WHEEL MTD-MC-6137-202A01

41

NUT MTD-MC-6NAB-05

42

RIVET MTD-MC-6RAE03-6.5

43

BLADE MTD-MC-6250-202503

44

SHIELD MTD-MC-6262-202A02

45

SPRING MTD-MC-6024-202A04

46-1

CVR SPOOL MTD-MC-6059-202004

46-2

SPOOL CARRIER MTD-MC-6008-202001A

46-3

CUTTING WI MTD-MC-6194-202001

46-4

SPOOL COVER MTD-MC-6059-202005

46-5

PILOT MTD-MC-6RE-04-04

46

SPOOL CAR MTD-MC-6228-202004A
