Troy-Bilt TB4400B 41AG402B766 Trimmer

Model: TB4400B 41AG402B766

Save Part Not Listed?
product name

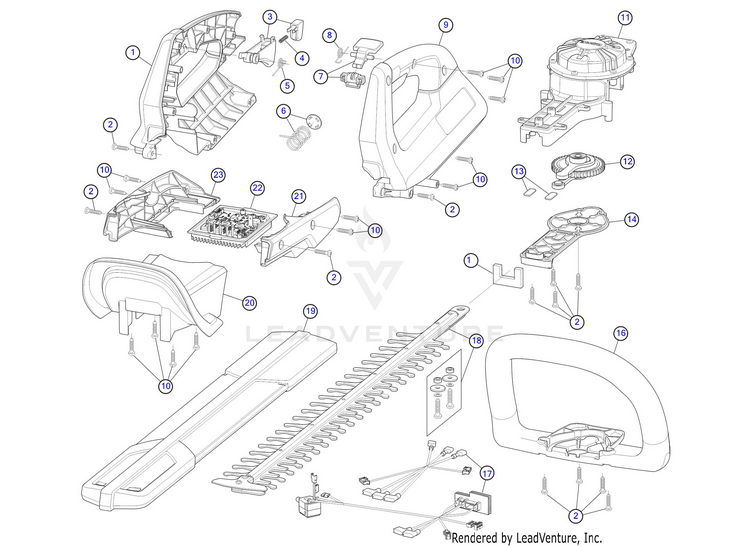

General Assembly

...
...
1
BATTERY HOUSING (RH) (Incl. 2) MTD-753-08642
...
2
SCREW - 8-32X.750:T20:SELF TAP MTD-710-06302
...
3
TRIGGER ASSEMBLY (Incl. 4 & 5) MTD-753-08643
...
4
Lockout Spring MTD-732-05434
...
5
TRIGGER SPRING MTD-753-05007
...
6
Battery Spring Assembly MTD-732-05407
...
7
LATCH BATTERY ASSEMBLY (Incl. 8) MTD-753-08644
...
8
TRIGGER SPRING MTD-753-05007
...
9
BATTERY HOUSING (LH) (Incl. 2 & 10) MTD-753-08645
...
10
Screw MTD-710-04510
...
11
Motor (Incl. 2 & 12 - 15) MTD-753-08654
...
12
GEAR AND LINK ASSEMBLY (Incl. 13) MTD-753-08646
...
13
Wear Plate MTD-731-11954
...
14
PLATE GEARBOX (Incl. 2) MTD-753-08647
...
15
SEAL FELT MTD-721-04846
...
16
HANDLE W/HARDWARE (Incl. 2) MTD-753-08648
...
17
WIRE HARNESS MTD-753-08649
...
18
BLADE ASSEMBLY W/HARDWARE MTD-753-08650
...
19
SCABBARD MTD-731-11898
...
20
GUARD W/HARDWARE (Incl. 10) MTD-753-08651
...
21
CONTROL HOUSING (Incl. 2 & 10) MTD-753-08652
...
22
Controller MTD-725-06732A
...
23
CONTROL HOUSING RT (Incl. 2 & 10) MTD-753-08653
...
xx
Troy-Bilt 40V-4AH-LITHIUM ION BATTERY (Sold Separately) MTD-490-280-Y001
...
xx
Troy-Bilt 40V-6A CHARGER (Sold Separately) MTD-490-280-Y003
...
xx
Troy-Bilt 40V-6AH-LITHIUM ION BATTERY (Sold Separately) MTD-490-280-Y002
