Troy-Bilt TB425XP 41AD254X966 Gas Trimmer

Model: TB425XP 41AD254X966

Back To Assemblies

Save Part Not Listed?
product name

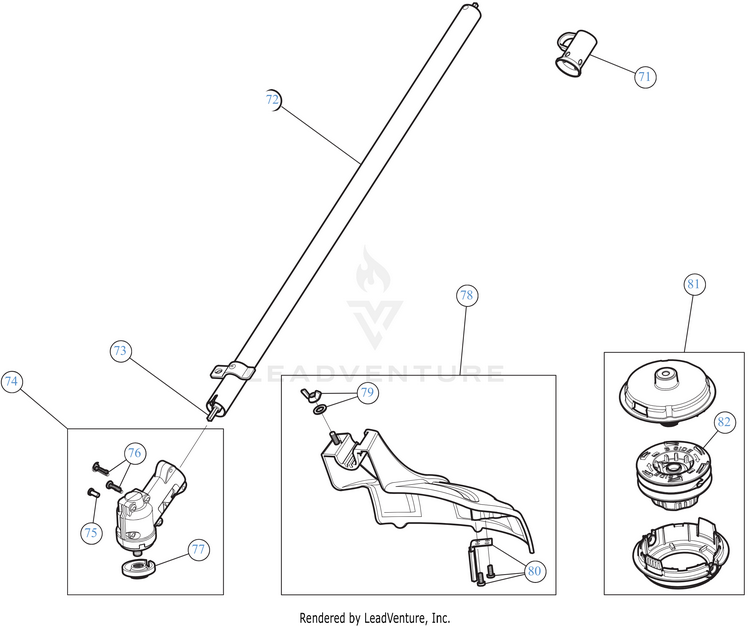

Trimmer

...
...
71
HANGER MTD-731-08926
...
72
LOWER BOOM ASSEMBLY (Incl. 73) MTD-841-031247S-1
...
73
LOWER DRIVE SHAFT MTD-753-05267
...
74
GEARBOX LCBC (Incl. 75 - 77) MTD-753-08180
...
75
SCREW, 8-32 x .312 P MTD-791-182519
...
76
SCREW #10-24X11/16 T-25 MTD-791-182195
...
77
CUTTING HEAD SPACER MTD-748-05052
...
78
GUARD/BLADE ASM (Incl. 79 & 80) MTD-841-032093S
...
79
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
80
BLADE ASSEMBLY W/HDW MTD-753-08355
...
81
COMPLETE HEAD ASSEMBLY (Incl. 82) MTD-841-013303S
...
82
BUMP KNOB MTD-753-08563
