Troy-Bilt TB425XP 41AD254X966 Gas Trimmer

Model: TB425XP 41AD254X966

Back To Assemblies

Save Part Not Listed?
product name

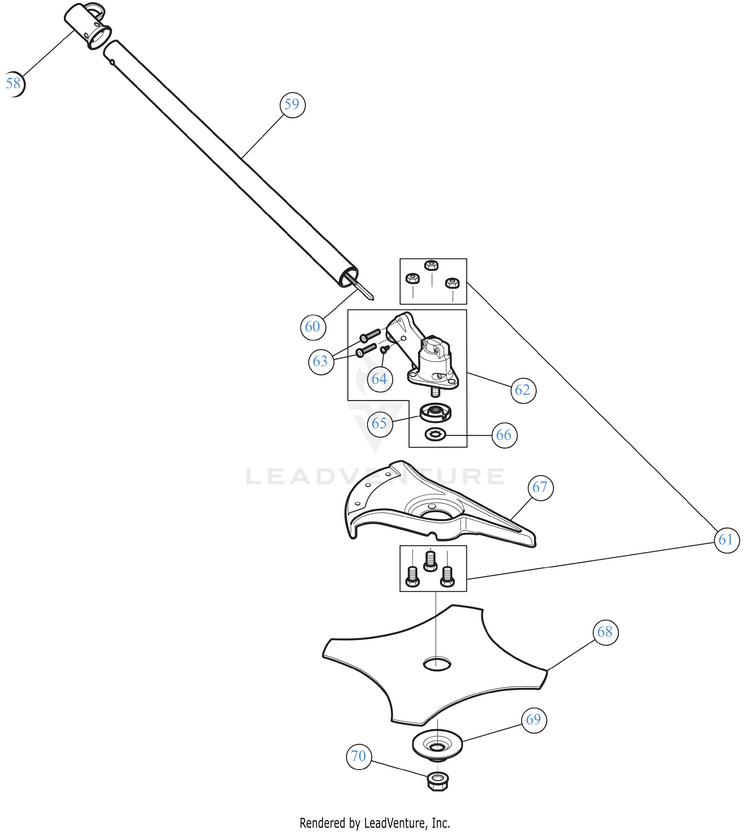

Brushcutter

...
...
58
HANGER MTD-731-08926
...
59
BOOM ASSEMBLY LOWER MTD-753-06789
...
60
LOWER DRIVE SHAFT MTD-753-05267
...
61
SCREW SET-GUARD MT MTD-791-182200
...
62
GEARBOX (Incl. 63 - 66) MTD-753-11244
...
63
SCREW #10-24X11/16 T-25 MTD-791-182195
...
64
SCREW, 8-32 x .312 P MTD-791-182519
...
65
SPACER-GEARBOX MTD-791-182196
...
66
PALNUT:3/8" DIAM MTD-753-04348
...
67
SHIELD-BLADE CAST MTD-791-147492
...
68
BLADE 4-TOOTH MTD-791-145873B
...
69
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
70
BLADE LOCK NUT MTD-712-04105
...
xx
KIT, BLADE RETAINING ST SHAFT (Incl. 69 and 70) MTD-791-180014B
...
xx
LOCKING ROD TOOL MTD-732-05168
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
