Troy-Bilt TB425XP 41AD254X966 Gas Trimmer

Model: TB425XP 41AD254X966

Back To Assemblies

Save Part Not Listed?
product name

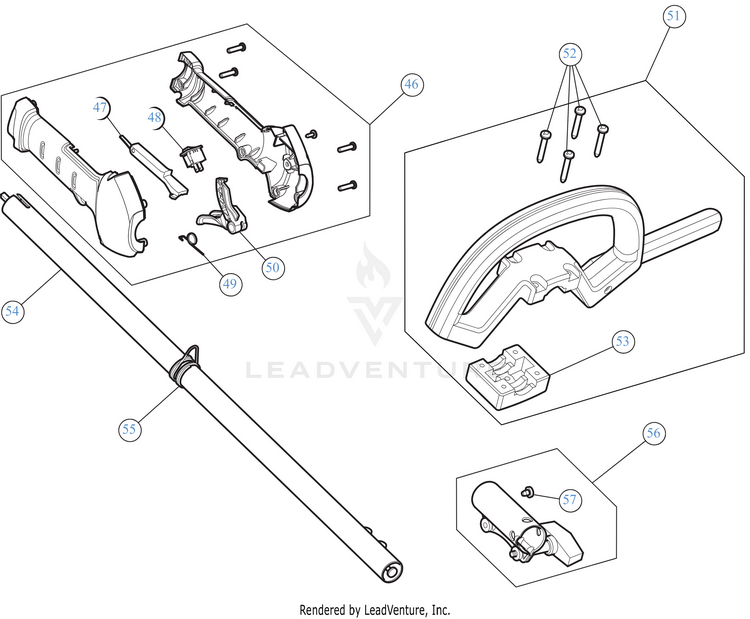

Handle Assembly

...
...
46
THROTTLE HOUSING ASSEMBLY (Incl. 47 - 50) MTD-753-08564
...
47
LEVER LOCK OUT MTD-731-08433C-10
...
48
SW, MOMENTARY ON/O MTD-791-182405
...
49
TRIGGER SPRING MTD-753-05007
...
50
THROTTLE TRIGGER MTD-731-11788-10
...
51
HANDLE:D (Incl. 52 & 53) MTD-753-05008
...
52
SCREW MTD-791-181070
...
53
Deluxe D-Handle Base MTD-753-05009
...
54
BOOM ASSEMBLY UPR MTD-753-06682
...
55
SHOULDER STRAP CLAMP MTD-4301A
...
55
CLAMP-SHOULDER STR MTD-791-610327
...
56
CLICK LINK (Incl. 57) MTD-753-10964
...
57
SCREW, 10-32X.250 TA MTD-791-182057
