Troy-Bilt TB425XP 41AD254X966 Gas Trimmer

Model: TB425XP 41AD254X966

Back To Assemblies

Save Part Not Listed?
product name

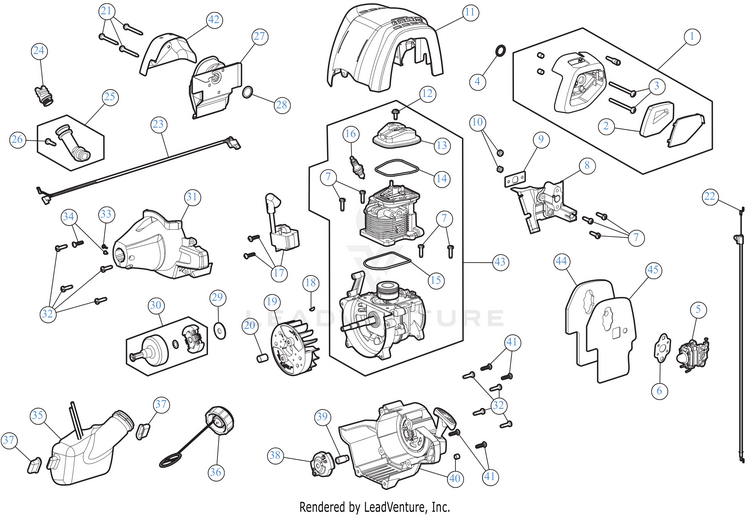

Engine Assembly

...
...
1
AIR CLEANER ASSEMBLY (Incl. 2 & 3) MTD-753-08380
...
2
AIR FILTER MTD-753-06085
...
3
SCREW 10-32X3 MTD-753-06939
...
4
O-RING MTD-791-181751
...
5
CARBURETOR ASSEMBLY MTD-753-06083
...
6
CARBURETOR GASKET MTD-791-181709
...
7
SCREW, M5 X18 MTD-9052-1
...
8
INSULATOR MTD-731-08964
...
9
INSULATOR GASKET MTD-753-05673
...
10
NUT 10-32 MTD-712-04099
...
11
ENGINE COVER MTD-731-07528-1
...
12
SCR, VALVE COVER MTD-791-181025
...
13
ROCKER COVER MTD-753-05901
...
14
O-RING MTD-753-05902
...
15
O-RING CYL AC5 MTD-753-05910
...
16
SPARK PLUG 4 CYCL MTD-794-00082
...
17
MODULE MA-95 MTD-753-05907
...
18
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
...
19
FLYWHEEL W/KEY MTD-753-09584
...
20
SPACER .591" MTD-753-05814
...
21
SCREW M5 x 44MM MTD-710-04809
...
22
THROTTLE CABLE MTD-753-06166
...
23
WIRE LEAD AC5 MTD-794-00047A
...
24
OIL PLUG MTD-753-05408
...
25
OIL FILL TUBE (Incl. 26) MTD-753-06087
...
26
SCR, M5 x 15.8MM MTD-9054
...
27
MUFFLER ASSEMBLY AC5.1 MTD-753-06334
...
28
GASKET/MUFFLER MTD-753-05244
...
29
WASH, CLUTCH O.D. 1.155 +/- .0 MTD-9162-1
...
30
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
31
CLUTCH COVER MTD-753-06335
...
32
SCREW M5X0.8 MTD-710-04604A
...
33
SCREW, 8-32 x .312 P MTD-791-182519
...
34
SCREW:CLMPNG W/NUT MTD-753-04291
...
35
FUEL TANK ASSEMBLY MTD-753-06093
...
36
FUEL CAP ASSEMBLY MTD-753-04084
...
37
FUEL TANK PADS MTD-753-05259
...
38
PAWL ASSEMBLY AC5 MTD-753-06091
...
39
ELECTRIC START ADP MTD-753-06104
...
40
STARTER HOUSING MTD-841-021101S
...
41
SCREW 8-16 x 3/4 MTD-710-04194
...
42
MUFFLER SHLD MTD-753-06101
...
43
SHORT BLOCK (Incl. 7, 12 - 16 & 25) MTD-753-06494
...
44
HEAT SHLD CARB AC5 MTD-753-06122
...
45
CARBURETOR GASKET MTD-721-04616
