Troy-Bilt TB425CS 41ADT42C711 Gas Trimmer

Model: TB425CS 41ADT42C711, 41ADT42C711 TB425CS

Back To Assemblies

Save Part Not Listed?
product name

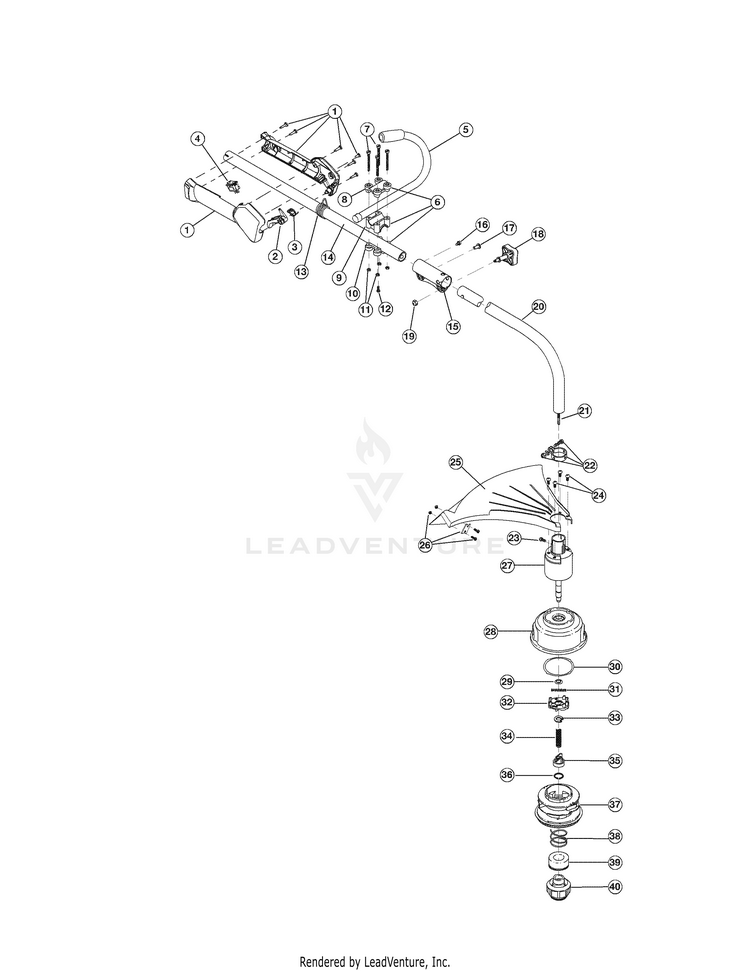

Boom & Trimmer Curved Shaft

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
ASSEMBLY, J-HANDLE (BLACK) MTD-791-180687
...
6
Handle Bracket Assembly (includes 7-12) MTD-791-683295
...
7
Screw MTD-791-181811
...
8
Upper Handle Clamp MTD-791-181812
...
9
Middle Handle Clamp MTD-791-181813
...
10
Lower Handle Clamp MTD-791-181814
...
11
Nut MTD-791-181815
...
12
Anti-Rotation Screw MTD-791-145569
...
13
SHOULDER STRAP CLAMP MTD-4301A
...
13
Harness Clip MTD-791-610327
...
14
DRIVE SHAFT HOUSING ASSEMBLY UPPER MTD-753-04503
...
15
Split Boom Coupler (includes 16-19) MTD-753-1190
...
16
Screw MTD-791-182057
...
17
Bolt MTD-791-181617
...
18
CLICK LINK CLAMP MTD-697-00661-9
...
19
Knob Retaining Nut MTD-712-04018A
...
20
Lower Drive Shaft Housing Assembly MTD-753-04304
...
21
Lower Flexible Drive Shaft MTD-791-181852
...
22
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
23
Anti-Rotation Screw MTD-791-145569
...
24
SCREW, #10-24X.50 M MTD-791-181858
...
25
SHIELD ASSEMBLY WITH BLADE MTD-791-181659
...
26
BLADE ASSEMBLY MTD-791-181823
...
27
BUSHING HO MTD-791-181857
...
28
Outer Spool Assembly (includes 29) MTD-791-181457
...
29
Retaining Ring MTD-791-181458
...
30
Thrust Washer MTD-791-181561
...
31
SPRING, SPEED SPOOL S MTD-791-181459
...
32
Slider MTD-753-04257
...
33
E-Clip MTD-791-181532
...
34
SPRING, PLUNGER MTD-791-181531
...
35
PLUNGER, SPEED SPO MTD-791-181462
...
36
C-CLIP MTD-791-181463
...
37
Reel and Line Assembly MTD-791-181460B
...
38
Large Spring MTD-791-181465B
...
39
SEAL, SPEED SPOOL MTD-791-181467
...
40
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel & Line Assembly MTD-953-1156
...
xx
REEL & LINE:RPL:09 MTD-753-04218
...
xx
Shoulder Strap Assembly (NOT SHOWN) MTD-791-682075B
