Troy-Bilt TB425CS 41ADT42C063 Gas Trimmer

Model: TB425CS 41ADT42C063, 41ADT42C063 TB425CS

Back To Assemblies

Save Part Not Listed?
product name

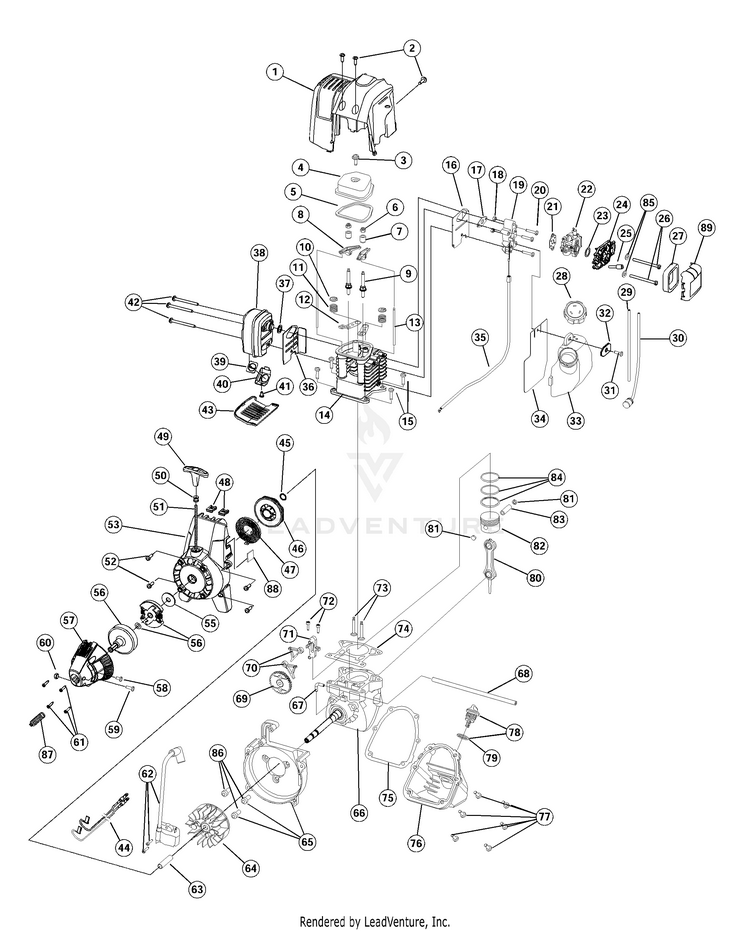

Engine Parts

...
...
1
ENGINE COVER MTD-753-04083
...
2
Engine Cover Screws MTD-753-04994
...
3
Valve Cover Screw MTD-791-181025
...
4
COVER, VALVE W/O BRE MTD-791-182098
...
5
Valve Cover Gasket MTD-791-182099
...
6
NUT, ROCKER ADJUST MTD-791-182340
...
7
PIVOT, ROCKER ARM MTD-791-182101
...
8
ARM, ROCKER MTD-791-182100
...
9
STUD, ROCKER ARM MTD-791-182341
...
10
RET, VALVE SPRING MTD-791-182103
...
11
SPRING, VALVE MTD-791-181038
...
12
GUIDE, PUSH ROD MTD-791-182102
...
13
ROD, PUSH MTD-791-181033
...
14
CYLINDER ASSEMB (includes 9 & 12) MTD-791-182745
...
15
SCREW, M5 X18 MTD-9052-1
...
16
BAFFLE, INTAKE GAS MTD-791-182345
...
17
Carburetor Mount Gasket MTD-791-182749
...
18
NUT-DEE HANDLE MTD-791-181034
...
19
Carburetor Mount (includes 18) MTD-791-182347
...
20
SCR, CARBU MTD-791-182348
...
21
CARBURETOR GASKET MTD-791-182732
...
22
Carburetor with Primer MTD-753-04296
...
23
O-Ring, Carburetor MTD-791-181751
...
24
AIR CLEANER & CHOKE COVER ASSEMBLY (includes 27) MTD-753-04305
...
25
Breather Tube MTD-791-182097
...
26
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
27
Air Filter MTD-791-181757
...
28
Fuel Cap MTD-753-1229
...
29
Fuel Return Line MTD-791-182352
...
30
Fuel Pick-Up Line with Filter MTD-791-182353
...
32
SCREW, FUEL TANK BRA MTD-791-181080
...
32
RET, LOWER STAMPIN MTD-791-182354
...
33
FUEL TANK ASSEMBLY (includes 28-30) MTD-753-1230
...
34
BAFFLE, FU MTD-791-182356
...
35
CBL:THROT:AC-2:TEC:BRL MTD-753-04297
...
36
BAFFLE, MUFFLER MTD-791-182358
...
37
MUFFLER GASKET MTD-9094-1
...
38
MUFFLER & GASKET (includes 37, 39-41) MTD-791-182359
...
39
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
40
COVER, SCREEN MTD-791-181045
...
41
SCREW, SCREEN COVER MTD-791-181046
...
42
SCREW, MUFFLER MTD-791-182361
...
43
CVR:MFLR MTD-753-04092
...
44
ASSEMBLY, SWIT MTD-791-182804
...
45
Push Nut MTD-753-04288
...
46
PULLEY:START MTD-753-1199
...
47
Recoil Spring MTD-753-04286
...
48
Nut Clip MTD-791-182366
...
49
Pull Handle MTD-631-04164B
...
50
Rope Guide MTD-791-611061
...
51
Rope MTD-791-613103
...
52
Screw MTD-9054
...
53
Starter Assembly (includes 45-51) MTD-753-04910
...
54
Washer MTD-9162-1
...
55
Clutch with Spacer MTD-753-1238
...
56
Clutch Drum MTD-791-153592
...
57
CLUTCH COVER MTD-753-1239
...
58
Anti-Rotation Screw MTD-791-145569
...
59
SCREW:8-32X1.00":MAC MTD-753-1240
...
60
NUT:#8-32: MTD-753-1241
...
61
Clutch Cover Screw MTD-791-181345
...
62
IGNITION MODULE WITH SCREWS MTD-753-04298
...
63
SPACER MTD-791-181065
...
64
FLYWHEEL MTD-753-04299
...
65
ASSEMBLY, SHROUD (AC-2. MTD-791-182743
...
66
ASSEMBLY, CRANKCASE & P (includes 67 & 68) MTD-791-182376
...
67
FITTING, BREATHER MTD-791-182375
...
68
Breather Hose MTD-791-182379
...
69
CAM GEAR MTD-791-181015
...
70
FOLLOWER, MTD-753-1242
...
71
BRACKET, CAM MTD-791-181013
...
72
SCR, CAM BRACKET MTD-791-181012
...
73
VALVE MTD-791-181040
...
74
GASKET, CYLINDER B MTD-791-182374
...
75
GASKET, OIL PAN MTD-791-181018
...
76
PAN, OIL W/ GASKET (includes 75 & 77) MTD-791-182377
...
77
Screw MTD-9054
...
78
Oil Cap Dipstick (includes 74) MTD-791-182378
...
79
O-Ring MTD-791-182290
...
80
ROD, CONNECTING MTD-791-181009
...
81
BUTTON, WRIST PIN MTD-791-181008
...
82
PISTON ASSEMBLY:PSTN MTD-753-1243
...
83
PIN, WRIST MTD-791-181006
...
84
RING SET:PISTON MTD-753-04801
...
85
Washer MTD-791-182409
...
86
SCREW, 1/4-20X.562 F MTD-791-181861
...
87
SPRING, COMPRESSION S MTD-791-612468
...
88
GROMMET, WIRE (AC- MTD-791-182537
...
89
AIR CLEANER & C MTD-753-04316
...
xx
Spark Plug not shown MTD-794-00082
...
xx
SHBLK ASSEMBLY: (includes 3-14, 65-84); not shown MTD-753-1245
...
xx
Flywheel Assembly not shown MTD-753-05240
...
xx
AC-10 Carburetor Repair Kit not shown MTD-753-04014
...
xx
REPAIR KIT-GSKT DI not shown MTD-753-1248
