Troy-Bilt TB4016CC 41BY06AR066 Chainsaw

Model: TB4016CC 41BY06AR066, 41BY06AR066 TB4016CC

Save Part Not Listed?
product name

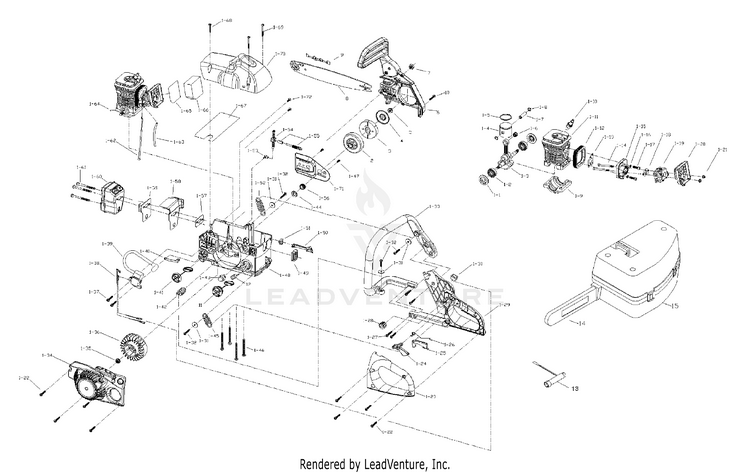

General Assembly Parts

...
...
1
ENG ASS'Y MTD-MC-9238-MD0701
...
1-1
CAP-BEARING MTD-MC-9157-310502
...
1-2
BEARING MTD-MC-9DB-620101
...
1-3
CRANK ROD ASSEMBLY MTD-MC-9228-310505
...
1-4
PISTON MTD-MC-9290-310502
...
1-5
RING-PISTO MTD-MC-9189-310502
...
1-6
ROLLER-PIS MTD-MC-9NB-K101410
...
1-7
PISTON PIN MTD-MC-9PC-10-34.5
...
1-8
RING MTD-MC-9CA-10.3
...
1-9
CASE-CRANK MTD-MC-9072-310501F
...
1-10
SPARK PLUG MTD-MC-9295-310502
...
1-11
CYLINDER MTD-MC-9292-310501F
...
1-12
RUBBER, ISOLATOR MTD-MC-9012-310502
...
1-13
SPACER MTD-MC-9082-310505
...
1-14
SCREW MTD-MC-9STDB-05-60
...
1-15
ISOLATOR-C MTD-MC-9082-310504
...
1-16
WASHER-SPR MTD-MC-6WSB-06
...
1-17
SCREW MTD-MC-9SACB-06-25
...
1-18
SPACER MTD-MC-9082-310506
...
1-19
CARBURETOR MTD-MC-9287-310501
...
1-20
FILTER ASSEMBLY MTD-MC-9228-310510
...
1-21
NUT MTD-MC-9NHZ-05
...
1-22
SCREW 10-14-0.625 MTD-710-04290
...
1-23
HANDLE-LEFT MTD-MC-9068-310501
...
1-24
TRIGGER, THROTTLE MTD-MC-9028-310502
...
1-25
TRIGGER-RE MTD-MC-9028-310501
...
1-26
SPRING MTD-MC-9024-310504
...
1-27
SCREW MTD-MC-9SKKBY1014-0.68
...
1-28
RUBBER ISOLATOR MTD-MC-9027-310101
...
1-29
HANDLE-REAR MTD-MC-9068-310502
...
1-30
SWITCH MTD-MC-9022-310501
...
1-31
WASHER MTD-MC-9WFB-05-21
...
1-32
SCREW 8/16-0.6 MTD-710-04494
...
1-33
FRONT HANDLE MTD-MC-9068-MD0701
...
1-34
STARTER HS MTD-MC-9228-MD0701
...
1-35
NUT MTD-MC-9NAB-516-24
...
1-36
FLYWHEEL MTD-MC-9169-310501
...
1-37
SCREW 8/16-0.75 MTD-710-04232
...
1-38
WIRE ASSEMBLY MTD-MC-9010-310503
...
1-39
IGNITION ASSEMBLY MTD-MC-9288-310501
...
1-40
PLATE-CONDUCTIVE MTD-MC-9051-310501
...
1-41
CAP-OIL MTD-MC-9228-310207
...
1-42
SPRING ASSEMBLY MTD-MC-9228-310514
...
1-43
PRIMER MTD-MC-9142-310002
...
1-44
FELT MTD-MC-9157-310501
...
1-45
SPRING MTD-MC-9024-310506
...
1-46
SCREW MTD-MC-9SFABJ06-55
...
1-47
SCREW MTD-MC-6SDABB04-08
...
1-48
HOUSING ASSEMBLY MTD-MC-9228-310511
...
1-49
HOLDER-CAB MTD-MC-9012-310503
...
1-50
CHOKE LEVER MTD-MC-9114-310510
...
1-51
CHOKE LEVE MTD-MC-9012-310504
...
1-52
SPRING MTD-MC-9024-310507
...
1-53
FITTING MTD-MC-9124-310102
...
1-54
OIL PIPE MTD-MC-9013-310501
...
1-55
PUMP ASS'Y MTD-MC-9228-310526
...
1-56
WORM MTD-MC-9073-310503
...
1-57
SPACER MTD-MC-9082-310507
...
1-58
BAFFLE MTD-MC-9082-310502
...
1-59
BAFFLE MTD-MC-9082-310501
...
1-60
MC-9228-31 MTD-MC-9228-310504
...
1-61
SCREW MTD-MC-9SXDB-06-70
...
1-62
THROTTLE CABLE MTD-MC-9010-310502
...
1-63
FUEL PIPE MTD-MC-9129-310504
...
1-64
KEY MTD-MC-9221-310001
...
1-65
MESH MTD-MC-9183-310502
...
1-66
AIR FILTER MTD-MC-9252-310501
...
1-67
BAFFLE MTD-MC-9082-310508
...
1-68
SCREW 8/16-1 MTD-710-04495
...
1-69
SCREW 8/16-1.4 MTD-710-04499
...
1-70
SHROUD MTD-MC-9017-310509
...
1-71
CAP-ANTI-D MTD-MC-9017-310508
...
1-72
SCREW 8/16-0.5 MTD-710-04493
...
2
DRUM ASSEMBLY MTD-MC-9228-310515
...
3
CLUTCH ASSEMBLY MTD-MC-9228-310528
...
4
CAP-ANTI D MTD-MC-9077-310501
...
5
NUT MTD-MC-9NHC-09
...
6
BRAKE KIT ASSEMBLY MTD-MC-9228-MD0702
...
7
NUT MTD-MC-9NAZ-516-18
...
8
BAR-16 (TB4016CC) MTD-MC-9040-MD0702
...
8
BAR-18 (TB4218CC) MTD-MC-9040-MD0703
...
9
CHAIN 16" (TB4016CC) MTD-MC-6220-210816
...
9
CHAIN 18" (TB4218CC) MTD-713-05042
...
10
SCREW 10/24-0.625 MTD-710-04288
...
11
FUEL CAP MTD-MC-9228-310206
...
12
FILTER MTD-MC-9182-310001
...
13
WRENCH MTD-MC-9042-310201
...
14
SCABBARD MTD-MC-9017-310214
...
15
CASE-CARRY MTD-MC-9120-MD0701
