Troy-Bilt TB400 41BR25BL766 Gas Blowers

Model: TB400 41BR25BL766

Save
 Part Not Listed?Part Not Listed?
product name

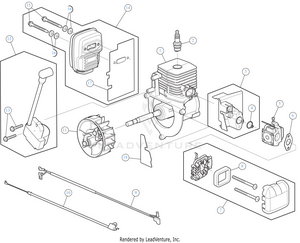

Engine Assembly

...
...
1
SHORT BLOCK MTD-753-09204
...
2
SPARK PLUG MTD-753-06847
...
3
INTAKE ASSEMBLY (Incl. 4) MTD-753-06189
...
4
O-RING MTD-753-06185
...
5
CARBURETOR MTD-753-06190
...
6
GASKET CARB MTD-753-06253
...
7
AIR CLEANER ASSEMBLY (Incl. 8) MTD-753-08498
...
8
AIR FILTER MTD-791-181757
...
9
WIRE LEAD MTD-725-06313
...
10
THROTTLE CABLE MTD-746-05226
...
11
FLYWHEEL ASSEMBLY MTD-753-08490
...
12
MODULE (Incl. 13) MTD-753-08489
...
13
SCREW 8-32X.750 MTD-710-06301
...
14
MUFFLER ASSEMBLY (Incl. 15 - 17) MTD-753-08488
...
15
MUFFLER SCREW MTD-753-06294
...
16
WASH, FLAT .480X.1 MTD-791-182568
...
17
GASKET MTD-721-04801
...
18
SHORTBLOCK GASKET MTD-721-04824

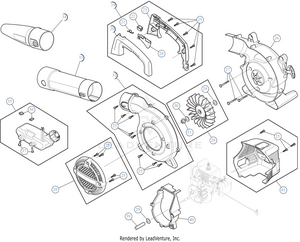

General Assembly

...
...
19
HANDLE ASSEMBLY (Incl. 20-25) MTD-753-08523
...
20
HANDLE (LH) MTD-731-11027-1
...
21
TRIGGER SPRING MTD-753-05007
...
22
SW, MOMENTARY ON/O MTD-791-182405
...
23
HANDLE ASSEMBLY (RH) MTD-731-10776A-1
...
24
TRIGGER MTD-731-09987-10
...
25
SCREW 8-16 x 3/4 MTD-710-04194
...
26
IMPELLER HOUSING (RH) MTD-841-014061S
...
27
SCREW 10/32 MTD-710-06341
...
28
IMPELLER ASSEMBLY MTD-753-08491
...
29
FLAT WASHER .401X.88 MTD-736-05080
...
30
LOCK WASHER MTD-736-04110A
...
31
NUT 3/8-24 MTD-712-04137
...
32
IMPELLER HOUSING ASSEMBLY (LH) (Incl. 25) MTD-753-08533
...
33
TUBE UPPER MTD-731-10598
...
34
NOZZLE MTD-731-10604
...
35
FUEL TANK ASSEMBLY (Incl. 36 & 37) MTD-753-08500
...
36
NUT, TINNERMAN U-T MTD-791-182366
...
37
SCREW:10-6 x .75 MTD-791-181930
...
38
INTAKE COVER (Incl. 25) MTD-753-08494
...
39
SPACER MTD-750-06367
...
40
ENGINE ADAPTER (Incl. 27) MTD-753-08496
...
41
ENGINE COVER (Incl. 25) MTD-753-08510
...
...
...
