Troy-Bilt TB3518CC 41AY38AR966 Chainsaw

Model: TB3518CC 41AY38AR966, 41AY38AR966 TB3518CC

Save
 Part Not Listed?Part Not Listed?
product name

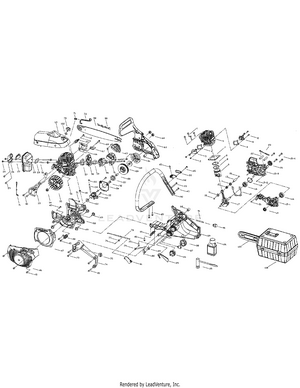

General Assembly TB3518CC

...
...
1
SCREW MTD-MC-9SGEB-05-20
...
2
SCREW MTD-MC-9SKKB-04-10
...
3
CAP MTD-MC-9067-310802
...
4
GASKET MTD-MC-9014-310803
...
5
CYLINDER MTD-MC-9292-311001F
...
6
CAP MTD-MC-9067-310801
...
7
GASKET MTD-MC-9014-310801
...
8
PISTON RING MTD-MC-9189-311001
...
9
PISTON MTD-MC-9290-311001
...
10
RING MTD-MC-9CA-10.3
...
11
WASHER MTD-MC-9131-310801
...
12
ROLLER MTD-MC-9NR-K101411
...
13
PIN, PISTON MTD-MC-9PC10-32
...
14
SEAL MTD-MC-9157-332101
...
15
CLY CASE ASS'Y MTD-MC-9228-310819
...
15-1
CLY CASE, LEFT MTD-MC-9072-310802F
...
15-2
PIN MTD-MC-9PA-03-08S
...
15-3
CLY CASE, RIGHT MTD-MC-9072-310801F
...
15-4
SCREW MTD-MC-9SKKB-05-27
...
16
CEARING MTD-MC-9DB-620101
...
17
CRANK/ROD ASS'Y MTD-MC-9228-310801-A
...
18
GASKET MTD-MC-9014-310802
...
19
RING MTD-MC-9CB-32
...
20
SEAL MTD-MC-9157-310801
...
21
BUSH MTD-MC-9059-311001
...
22
SCREW MTD-MC-9191-310802
...
23
WIRE MTD-MC-9010-311002
...
24
NUT MTD-MC-9NCC-05U
...
25
SCREW MTD-MC-9SKKB-05-14
...
26
COVER, MESH MTD-MC-9014-310810
...
27
SPARK ARRESTER MTD-MC-9016-310801
...
28
MUFFLER ASS'Y MTD-MC-9228-311005
...
29
BAFFLE MTD-MC-9014-310804
...
30
SCREW MTD-MC-9191-310803
...
31
WIRE MTD-MC-9010-311003
...
32
SCREW MTD-MC-9SKKB-04-14
...
33
IGNITION ASS'Y MTD-MC-9288-310801
...
34
Nut MTD-MC-9NAC-08
...
35
FLYWHEEL ASS'Y MTD-MC-9169-310801
...
36
WOODRUFF KEY MTD-MC-6221-830301
...
37
SPACER MTD-MC-9014-310805
...
38
ISOLATER, CARBURETER MTD-MC-9082-311001
...
39
SPACER MTD-MC-9014-310006
...
40
RUBBER PLUG MTD-MC-9013-311003
...
41
AIR GUIDE ASS'Y MTD-MC-9228-311006
...
42
SCREW MTD-MC-9SKKB-04-70
...
43
SPONGE MTD-MC-9183-311201
...
45
Screw MTD-710-04232
...
46
STARTER HOUSING ASS'Y MTD-MC-9228-311102
...
47
CAP, AIRWAY MTD-MC-9211-311001
...
48
SPRING MTD-MC-9024-311001
...
49
SCREW MTD-MC-9191-311001
...
50
BRACKET MTD-MC-9004-311001
...
51
BUSH MTD-MC-9079-311002
...
52
SPACER MTD-MC-9WFB-10-18
...
53
PUMP ASS'Y MTD-MC-9228-310805
...
54
PIPE MTD-MC-9129-311005
...
55
CONNECTOR MTD-MC-9154-310802
...
56
CAP, ANTI-DUST MTD-MC-9072-310806
...
57
WORM MTD-MC-9073-310803
...
58
ROLLER MTD-MC-9NR-K101313
...
59
DRUM ASS'Y MTD-MC-9200-310801
...
60
WASHER MTD-MC-9014-310807
...
61
CLUTCH ASS'Y MTD-MC-9228-311004
...
62
RUBBER PLUG MTD-MC-9013-311002
...
63
BRAKE KIT ASS'Y MTD-MC-9228-311007
...
64
NUT MTD-MC-9NAZ-516-18
...
66
SPACER MTD-MC-9014-310811
...
67
CATCH:CHAIN MTD-MC-9263-310801
...
68
SCREW MTD-MC-9SKKB-05-32
...
69
SHROUD MTD-MC-9067-311001
...
70
KNOB MTD-MC-9134-310801
...
71
HOLDER, CHOKE LEVER MTD-MC-9072-311001
...
72
LEVER, CHOKE MTD-MC-9114-311001
...
73
SCREW MTD-MC-9SKKBB05-27
...
74
HANDLE ASS'Y (L) MTD-MC-9068-311002
...
75
SWITCH MTD-MC-9022-310701
...
76
SCREW MTD-MC-9SKKBB04-10
...
77
WASHER MTD-MC-9WFZ-04-12
...
78
CABLE, THROTTLE MTD-MC-9010-311001
...
79
SPRING MTD-MC-9024-311005
...
80
SPRING MTD-MC-9024-310803
...
81
TRIGGER, THROTTLE MTD-MC-9028-311001
...
82
TRIGGER, THROTTLE MTD-MC-9028-311002
...
83
SPRING MTD-MC-9024-311003
...
84
RUBBER PLUG MTD-MC-9013-311001
...
85
TRIGGERELEASE MTD-MC-9028-310801
...
86
OIL CAP ASS'Y MTD-MC-9228-310809
...
87
FUEL FILTER MTD-MC-9182-310101
...
88
FUEL CAP ASS'Y MTD-MC-9228-310821
...
89
HANDLE ASS'Y ( R ) MTD-MC-9228-311003
...
90
PRIMER MTD-MC-9142-310002
...
91
PIPE MTD-MC-9129-311002
...
92
HANDLE, FRONT MTD-MC-9068-311001
...
93
SCREW MTD-MC-9SKKBY05-32
...
94
SPRING MTD-MC-9024-311002
...
95
CAP, SPRING MTD-MC-9043-311002
...
96
CARBURETER WT-808A MTD-MC-9287-311001
...
97
SPARK PLUG CHAMPION R27C MTD-MC-9295-310801
...
98
BAR MTD-MC-9040-310816F
...
99
CHAIN MTD-MC-6220-310815
...
100
SPANNER MTD-MC-9042-310201
...
101
OIL MTD-MC-9066-310101
...
102
SPACER MTD-MC-9014-311003
...
103
SCABBARD MTD-MC-9101-310803
...
104
CARRY CASE MTD-MC-9120-311001
...
...
...
