Troy-Bilt TB32EC 41ADZ32C766 Gas Trimmer

Model: TB32EC 41ADZ32C766, 41ADZ32C766 TB32EC

Back To Assemblies

Save Part Not Listed?
product name

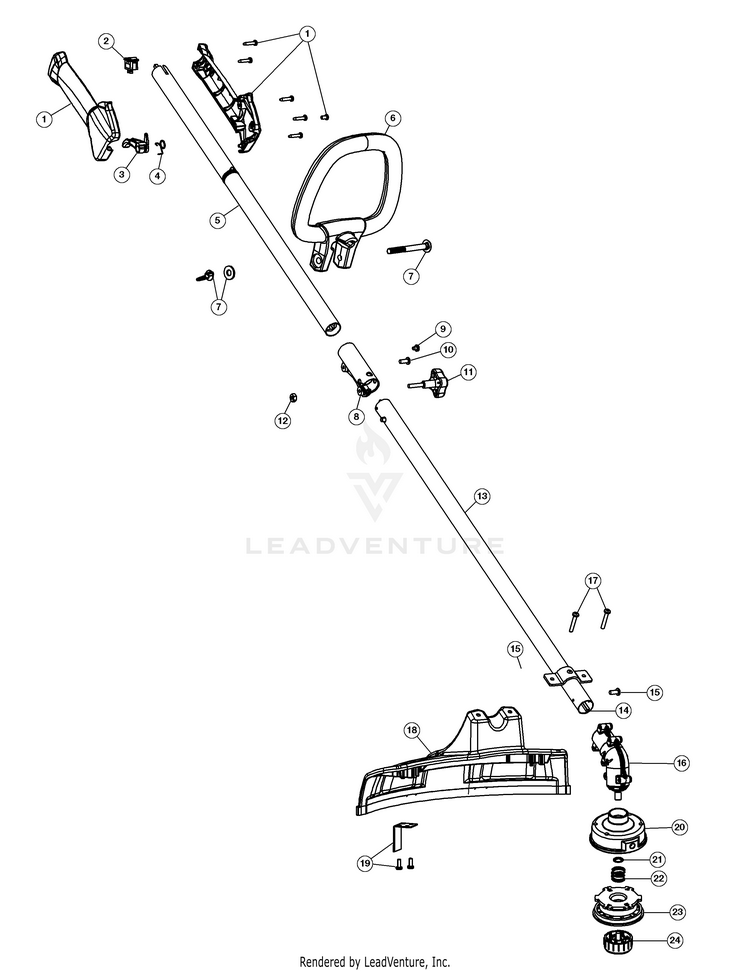

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-04234
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-05461
...
7
D-Handle Hardware Assembly MTD-791-181587
...
8
Split Boom Coupler (Incl. 9-12) MTD-753-1190
...
9
Screw MTD-791-182057
...
10
Bolt MTD-791-181617
...
11
ADJUSTMENT KNO MTD-791-181618B
...
12
Knob Retaining Nut MTD-712-04018A
...
13
Lower Drive Shaft Housing Assembly MTD-753-06139
...
14
LOWER DRIVE SHAFT MTD-753-05267
...
15
Anti-Rotation Screw MTD-7039
...
16
GEARBOX ASSEMBLY MTD-753-06571
...
17
Shield Mounting Screws MTD-753-06125
...
18
Shield Assembly (Incl. 17 & 19) MTD-753-06123
...
19
Blade Assembly MTD-753-06126
...
20
OUTER REEL W/RETAINING RING Incl. Ref 21 MTD-753-04284
...
21
Retainer MTD-791-610660
...
22
Spring MTD-791-610317B
...
23
Inner Reel MTD-753-1155
...
24
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly (Not shown) MTD-953-1156
