Troy-Bilt TB32CS 41AC132C966 Trimmer

Model: TB32CS 41AC132C966, 41AC132C966 TB32CS

Back To Assemblies

Save Part Not Listed?
product name

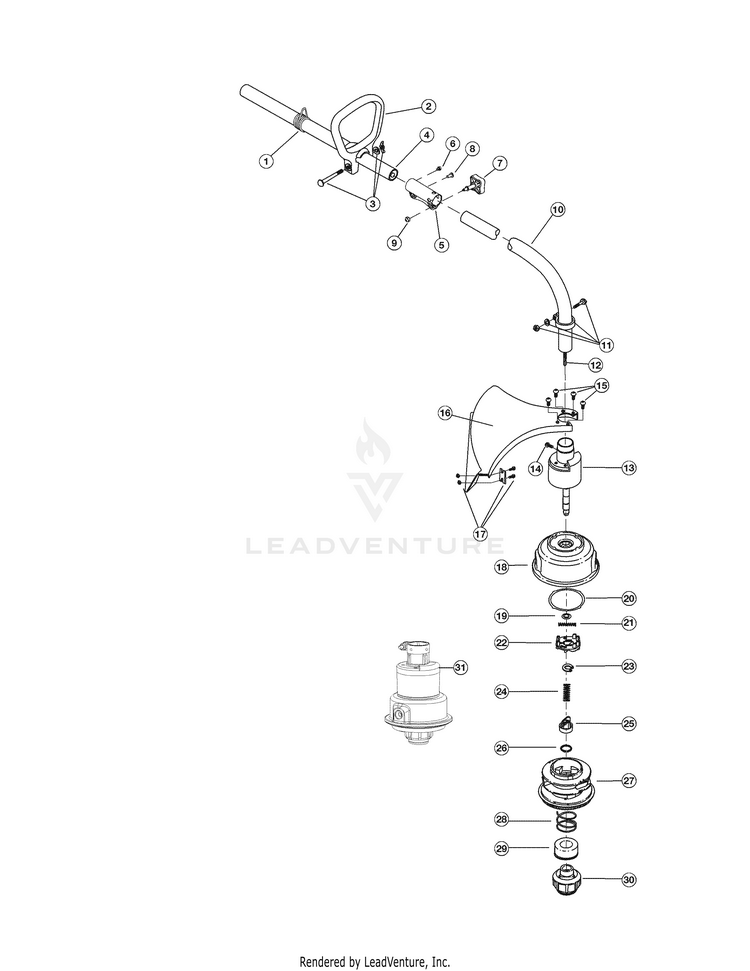

Boom and Trimmer

...
...
1
SHOULDER STRAP CLAMP MTD-4301A
...
1
Shoulder Harness Clamp MTD-791-610327
...
2
D-HANDLE AND HARDWARE MTD-791-153064
...
3
D-Handle Hardware Assembly MTD-791-181587
...
4
HOUSING ASSEMBLY UPPER W/FLEXSHAFT MTD-753-04345
...
5
ASSEMBLY, CLICK LINK CL MTD-791-182928
...
6
Screw MTD-791-182057
...
7
ADJUSTMENT KNO MTD-791-181951
...
8
Bolt MTD-791-181617
...
9
Knob Retaining Nut MTD-712-04018A
...
10
Lower Drive Shaft Assembly MTD-753-1218
...
11
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
12
Flexible Drive Shaft MTD-791-181852
...
13
BUSHING HO MTD-791-181857
...
14
Anti-Rotation Screw MTD-791-145569
...
15
SCREW, #10-24X.50 M MTD-791-181858
...
16
Guard Assembly (includes 17) MTD-791-683274
...
17
Blade Assembly MTD-791-682061
...
18
Outer Spool Assembly (includes 19) MTD-791-181457
...
19
Retainer MTD-791-181458
...
20
Thrust Washer MTD-791-181561
...
21
SPRING, SPEED SPOOL S MTD-791-181459
...
22
Slider MTD-753-04257
...
23
E-Clip MTD-791-181532
...
24
SPRING, PLUNGER MTD-791-181531
...
25
PLUNGER, SPEED SPO MTD-791-181462
...
26
C-CLIP MTD-791-181463
...
27
Reel and Line Assembly MTD-791-181460B
...
28
Large Spring MTD-791-181465B
...
29
SEAL, SPEED SPOOL MTD-791-181467
...
30
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
31
SPEED SPOOL HEAD ASSEMBLY MTD-791-181469B
...
xx
Shoulder Harness MTD-791-682075B
...
xx
Reel and Line Assembly MTD-791-181460B
