Troy-Bilt TB320BV 41AS320G711 Gas Blower

Model: TB320BV 41AS320G711, 41AS320G711 TB320BV

Save Part Not Listed?
product name

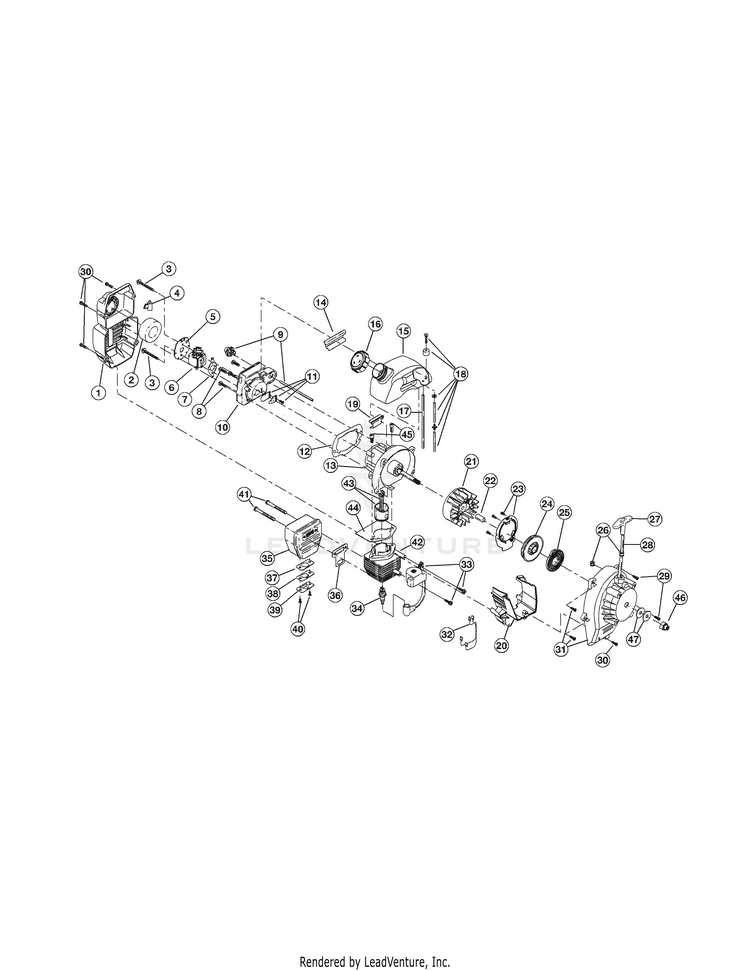

Engine Parts

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer & Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE ASSEMBLY MTD-753-04747
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:BK CAP W/ MTD-753-04310
...
16
Fuel Cap MTD-753-04084
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-791-682039
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXT ASSEMBLY:SHRD MTD-753-05091
...
21
Flywheel Assembly MTD-753-05240
...
22
Spacer MTD-750-04260
...
23
RETAINER ASSEMBLY-PULLE MTD-753-04705
...
24
START ASSEMBLY:S/A:PUL MTD-753-04823
...
25
Recoil Spring MTD-753-04286
...
26
Rope Guide MTD-791-611061
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
SCREW:10-32X.5 MTD-1964
...
30
Cover Screw MTD-791-181345
...
31
STARTER ASSEMBLY MTD-753-04749
...
32
LEAD, WIRE 10.5" B MTD-791-182402
...
33
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
33
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
34
Spark Plug MTD-791-610311B
...
35
MUFFLER ASM CAT NLAUD MTD-753-05169
...
36
Exhaust Gasket MTD-753-04619
...
37
SCREEN-SPA MTD-753-04689
...
38
SEAL MTD-753-04690
...
39
HOOD MTD-753-04691
...
40
MUFFLER ASSEMBLY MTD-753-04315
...
41
Muffler Screws MTD-710-04188A
...
42
Cylinder Assembly (includes 40 & 41) MTD-753-04814
...
43
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
44
Cylinder Gasket MTD-753-04182
...
45
Cylinder Bolt MTD-791-182723
...
46
NUT, DRIVE IMPELLE MTD-791-181524
...
47
Washer MTD-9162-1
...
xx
Piston Ring (NOT SHOWN) MTD-753-1209
...
xx
SHORTBLOCK:31C MTD-753-04750

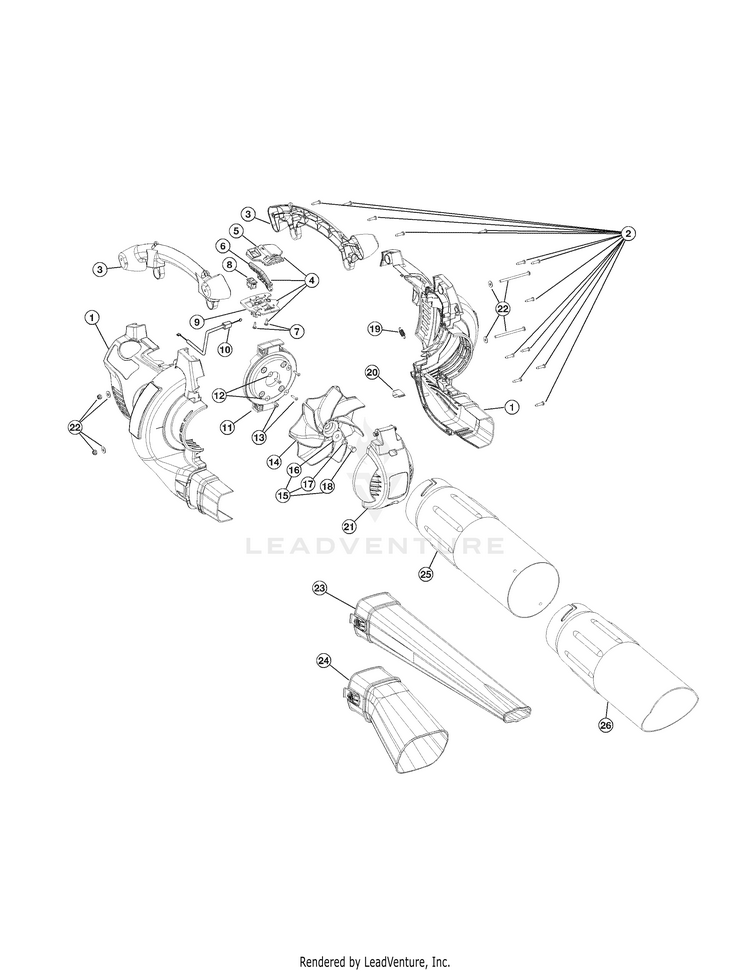

Housing Parts

...
...
1
ENGINE COVER ASSEMBLY MTD-753-04452
...
2
Screw MTD-791-181345
...
3
BLOWER HANDLE ASSEMBLY MTD-753-05047
...
4
LEVER ASSEMBLY:THRO MTD-753-04756
...
5
LEVER ASSEMBLY:THRO MTD-791-182420
...
6
Throttle Control Lever MTD-791-00048
...
7
SCREW, 6X.375X1/2 PL MTD-791-182423
...
8
Rocker Switch Assm MTD-791-182405
...
9
LEVER ASSEMBLY:THRO MTD-791-182422
...
10
THROTTLE CABLE MTD-791-00049
...
11
PLATE ASSEMBLY: MTD-753-04809
...
12
Washer MTD-791-182409
...
13
Screw MTD-710-04215A
...
14
Impeller Blade MTD-731-04275
...
15
HDWE-IMPELLER MTD-753-04482
...
16
Washer MTD-736-04107
...
17
Lock Washer MTD-736-04110A
...
18
Bolt MTD-791-182414
...
19
SPRING-DOOR MTD-753-04456
...
20
DOOR LOCK CLIP MTD-732-04092A
...
21
DOOR-VAC MTD-753-04454
...
22
MOUNTING PLATE HARDWARE MTD-791-182424
...
23
TUBE, BLOWER (HIGH MTD-791-182647
...
24
Vacuum Bag Adapter MTD-791-182477
...
25
TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466
...
26
Lower Vacuum Tube MTD-791-180467
...
xx
CLAMP, BAG NYLON MTD-791-612930
...
xx
BAG ASSEMBLY-VAC W/BAG & CABLE TIE MTD-753-04458
...
xx
Shoulder Strap (NOT SHOWN) MTD-791-682075B
