Troy-Bilt TB310QS 41BSGBPG966 Gas Blower

Model: TB310QS 41BSGBPG966, 41BSGBPG966 TB310QS

Save Part Not Listed?
product name

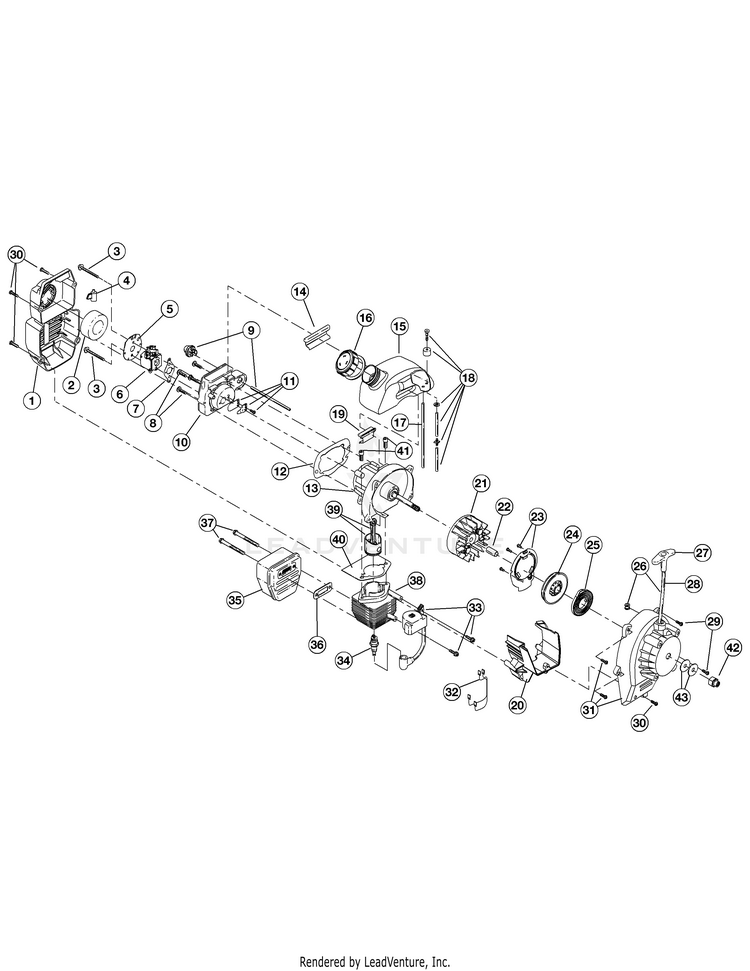

Engine Parts

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE ASSEMBLY MTD-753-04747
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:BK CAP W/ MTD-753-04310
...
16
Fuel Cap Assembly MTD-791-182529
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-791-682039
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXTENSION, SHROUD MTD-791-182401
...
21
Flywheel Assembly MTD-753-05240
...
22
Spacer MTD-750-04260
...
23
RETAINER ASSEMBLY-PULLE MTD-753-04705
...
24
START ASSEMBLY:S/A:PUL MTD-753-04823
...
25
Recoil Spring MTD-753-04286
...
26
Rope Guide MTD-791-611061
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
SCREW:10-32X.5 MTD-1964
...
30
Cover Screw MTD-791-181345
...
31
STARTER ASSEMBLY MTD-753-04749
...
32
LEAD, WIRE 10.5" B MTD-791-182402
...
33
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
34
Spark Plug MTD-791-610311B
...
35
MUFFLER ASM CAT NLAUD MTD-753-05169
...
35
MUFFLER ASM CAT NLAUD MTD-753-05169
...
36
Exhaust Gasket MTD-753-04619
...
37
Muffler Screws MTD-710-04188A
...
38
Cylinder Assembly (includes 40 & 41) MTD-753-04814
...
39
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
40
Cylinder Gasket MTD-753-04182
...
41
Cylinder Bolt MTD-791-182723
...
42
NUT, DRIVE IMPELLE MTD-791-181524
...
43
Washer MTD-9162-1
...
xx
Piston Ring Set Not Shown MTD-753-1209
...
xx
SCREEN-SPA MTD-753-04689
...
xx
SHORTBLOCK:31CC:BLO:-9 MTD-753-04924

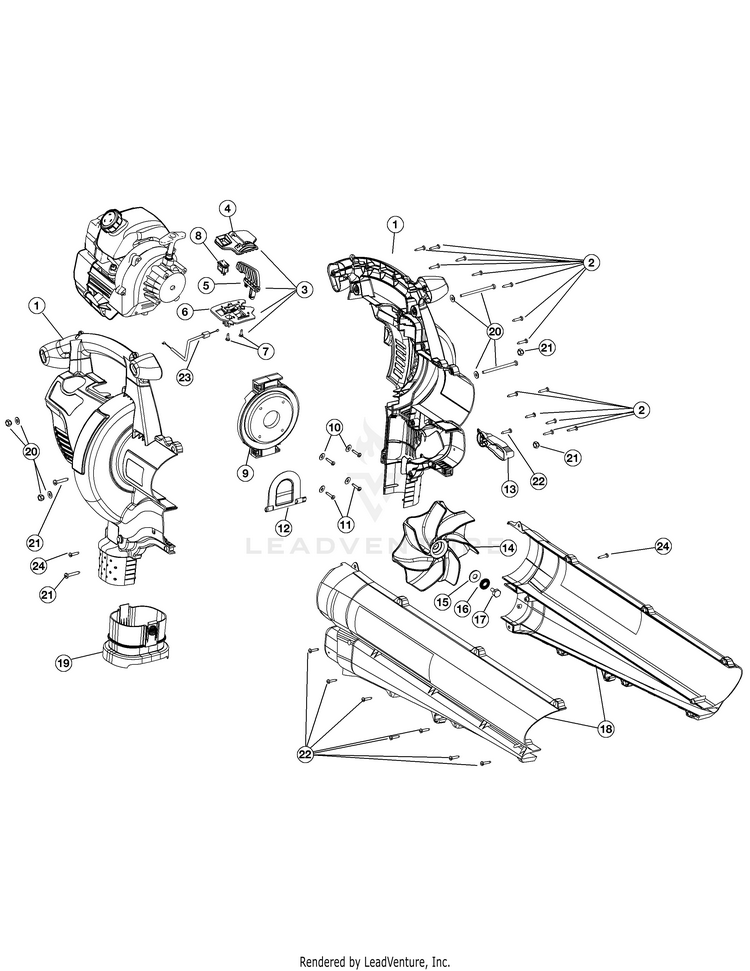

Housing Parts

...
...
1
COVER ASSEMBLY:ENG:GBV310 MTD-753-05061
...
2
Cover Screw MTD-710-04194
...
3
LEVER ASSEMBLY:THRO MTD-753-04756
...
4
LEVER ASSEMBLY:THRO MTD-791-182420
...
5
Throttle Control Lever MTD-791-00048
...
6
LEVER ASSEMBLY:THRO MTD-791-182422
...
7
SCREW, 6X.375X1/2 PL MTD-791-182423
...
8
Rocker Switch Assembly MTD-791-182405
...
9
PLATE ASSEMBLY: MTD-753-04809
...
10
Washer MTD-791-182409
...
11
Screw MTD-710-04215A
...
12
Mode Control Flapper MTD-791-182410
...
13
LEVER MTD-791-00050
...
14
Impeller Blade MTD-731-04275
...
15
Washer MTD-736-04107
...
16
Lock Washer MTD-736-04110A
...
17
Bolt MTD-791-182414
...
18
Blower/Vac Tube Assembly (includes 22) MTD-791-00051
...
19
ADAPTER MTD-791-182417
...
20
MOUNTING PLATE HARDWARE MTD-791-182424
...
21
ASSEMBLY, TUBE MOUNTING MTD-791-182425
...
22
Screw MTD-791-181482
...
23
THROTTLE CABLE MTD-791-00049
...
24
Screw MTD-791-181345
...
xx
CLAMP, BAG NYLON MTD-791-612930
...
xx
Vacuum Bag Assembly (includes 19, Vacuum Bag & Cable Tie) (not shown) MTD-753-04465
...
xx
Patio Head (not shown) MTD-753-04325
