Troy-Bilt TB30R (13CC26JD211) (2016) Lawn Tractor

Model: TB30R (13CC26JD211) (2016)

Back To Assemblies

Save Part Not Listed?
product name

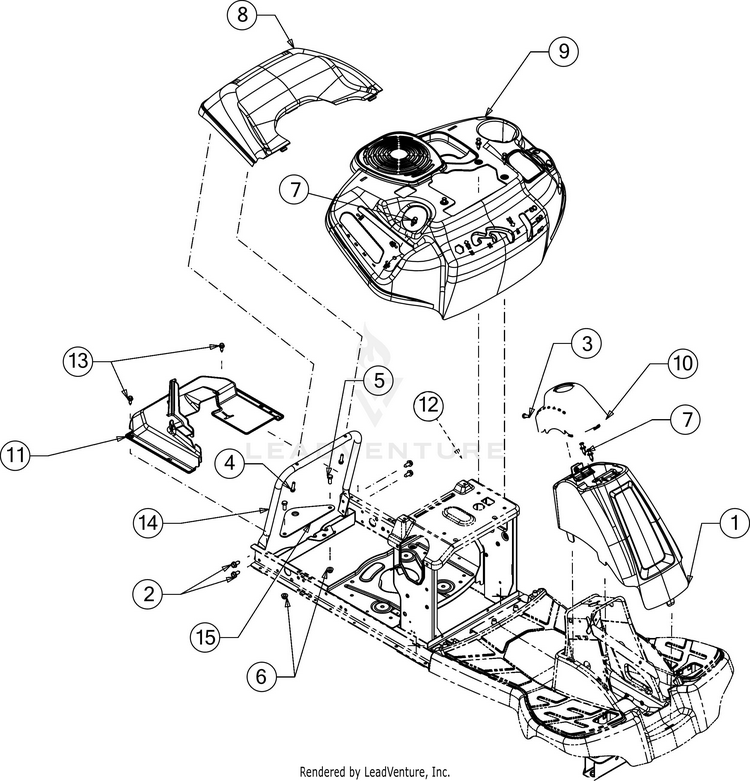

Fender

...
...
1
COLUMN COVER ASSEMBLY (MTD RED) MTD-631-05038
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
SCREW 1/4-20X.75 MTD-710-0924
...
4
SCREW 1/4-15 x 1.00 MTD-710-1241
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
7
PLASTIC RIVET MTD-728-0199
...
8
REAR COVER MTD-731-08620A
...
9
FENDER (W/RMC) MTD-931-08708B
...
10
COLUMN STEERING CAP MTD-731-09382
...
11
DRIVE OVER REAR MTD-731-10504
...
12
BUMPER .62 DIA x .50 MTD-735-05006
...
13
SHOULDER SCREW MTD-738-04184A
...
14
REAR SUPPORT TUBE MTD-749-04932-0637
...
15
HITCH PLATE MTD-783-07208A-0637
