Troy-Bilt TB30R (13CC26JD211) (2016) Lawn Tractor

Model: TB30R (13CC26JD211) (2016)

Back To Assemblies

Save Part Not Listed?
product name

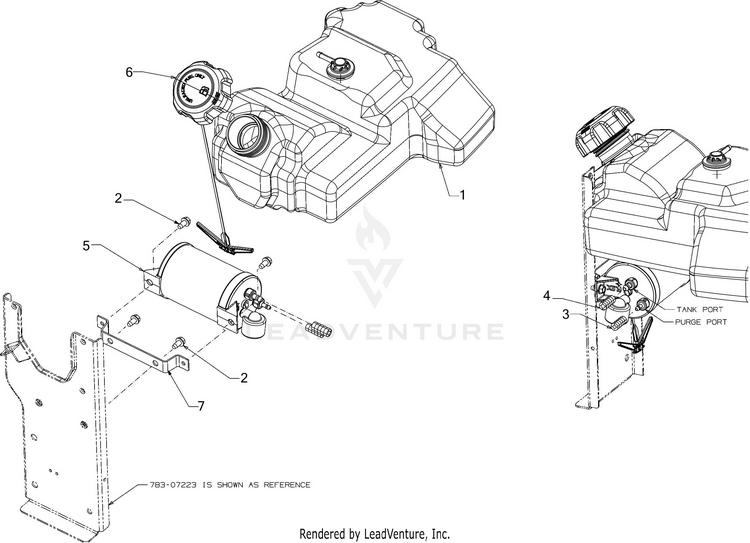

Fuel Tank

...
...
1
RUBBER GROMMET 23.0 ID x 35.5 OD Not Shown MTD-735-04081
...
1
ROLLOVER FUEL VALVE Not Shown MTD-751-12118
...
1
FUEL TANK ASSEMBLY MTD-651P08861
...
2
SCREW 1/4-20 X.500 MTD-710-0599
...
3
FUEL HOSE LOW PERMEATION MTD-751-10749-22
...
4
FUEL HOSE LO PERMEATION 28" MTD-751-10750A-28
...
5
CARBON CANISTER MTD-951-12372A
...
6
Fuel Cap MTD-951-12426B
...
7
CARBON CANISTER BRACKET MTD-783-09289
