Troy-Bilt TB304BC 41BD304S866 Handheld Product

Model: TB304BC 41BD304S866

Save
 Part Not Listed?Part Not Listed?
product name

Engine Assembly

...
...
1
REAR ENGINE COVER (Incl. 2 & 3) MTD-753-09884
...
2
SCREW 8-16 x 3/4 MTD-710-04194
...
3
SCREW M5-0.8 x 19 MTD-710-04604
...
4
ROCKER COVER MTD-753-05901
...
5
O-RING MTD-753-05902
...
6
O-RING CYL AC5 MTD-753-05910
...
7
BREATHER HOSE MTD-753-10205
...
8
OIL PLUG (Incl. 9) MTD-753-05408
...
9
RING, OIL PLUG (AC MTD-791-182290
...
10
CRANKCASE COVER (Incl. 11) MTD-841-020721S
...
11
O-RING CRNKCSE CVR MTD-753-05238
...
12
FLYWHEEL ASSEMBLY AC3.1 MTD-753-06221
...
13
LEAD WIRE MTD-725-15385
...
14
MODULE ASSEMBLY MTD-753-11264
...
15
MUFFLER ASSEMBLY (Incl. 16 & 17) MTD-753-05245
...
16
GASKET/MUFFLER MTD-753-05244
...
17
SCREW M5 x 44MM MTD-710-04809
...
18
SPARK PLUG 4 CYCL MTD-794-00082
...
19
GASKET/INSULATOR MTD-753-05247
...
20
NUT 10-32 MTD-712-04099
...
21
CARB INSULATOR MTD-841-020801S
...
22
GASKET MTD-753-06948
...
23
CARBURETOR MTD-753-11331
...
24
SCREW, M5 X18 MTD-9052-1
...
25
AIR CLEANER COVER (Incl. 26) MTD-841-036210S
...
26
AIR FILTER MTD-753-05254
...
27
SCREW 10-32X2.5 MTD-710-04517
...
28
FUEL TANK ASSEMBLY (Incl. 29) MTD-753-06797
...
29
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-753-1229
...
30
FUEL TANK PADS MTD-753-05259
...
31
STARTER HOUSING (MTD RED) (Incl. 3 & 38) MTD-753-10204
...
32
CLUTCH ASSEMBLY MTD-753-06281
...
33
CLUTCH COVER (Incl. 2) MTD-753-09887
...
34
SCREW, 8-32 x .312 P MTD-791-182519
...
35
SCREW MTD-9689A
...
36
HEX NUT MTD-712-0161
...
37
SHORT BLOCK (Incl. 3-11, 18, 24 & 39) MTD-841P020761S
...
38
SPACER :2.165" MTD-750-04434
...
39
SCR, VALVE COVER MTD-791-181025
...
40
HEAT SHIELD MTD-753-06949
...
41
CARBURETOR GASKET MTD-791-181709
...
42
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
...
43
BREATHER HOUSING MTD-753-10844

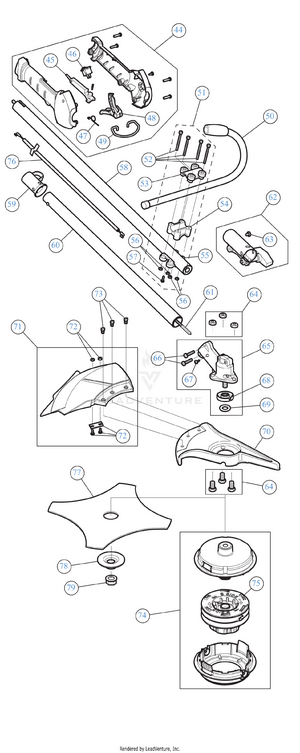

General Assembly

...
...
44
THROTTLE GRIP ASM (Incl. 44 - 49) MTD-753-09888
...
45
LEVER LOCK OUT MTD-731-08433C-10
...
46
SW, MOMENTARY ON/O MTD-791-182405
...
47
TRIGGER SPRING MTD-753-05007
...
48
THROTTLE TRIGGER MTD-731-04970B-10
...
49
SHOULDER STRAP CLIP MTD-732-06186
...
50
HANDLE ASSEMBLY-JAY MTD-791-181099
...
51
HANDLE BRACKET ASSEMBLY (Incl. 52 - 57) MTD-791-683295
...
52
CLAMP SCREW MTD-791-181811
...
53
HANDLE UPPER CLAMP MTD-791-181812
...
54
HANDLE MIDDLE CLAMP MTD-791-181813
...
55
HANDLE LOWER CLAMP MTD-791-181814
...
56
NUT-CLAMP MTD-791-181815
...
57
SCREW, 8-32 x .312 P MTD-791-182519
...
58
BOOM ASSEMBLY UPR MTD-753-06682
...
59
HANGER MTD-731-08926
...
60
BOOM ASSEMBLY LOWER MTD-753-06789
...
61
LOWER DRIVE SHAFT MTD-753-05267
...
62
SPLIT BOOM COUPLER KIT (Incl. 63) MTD-753-1190
...
63
SCREW, 10-32X.250 TA MTD-791-182057
...
64
SCREW SET-GUARD MT MTD-791-182200
...
65
GEARBOX (Incl. 66 - 69) MTD-753-11244
...
66
SCREW #10-24X11/16 T-25 MTD-791-182195
...
67
SCREW, 8-32 x .312 P MTD-791-182519
...
68
SPACER-GEARBOX MTD-791-182196
...
69
PALNUT:3/8" DIAM MTD-753-04348
...
70
SHIELD-BLADE CAST MTD-791-147492
...
71
SHIELD ASSEMBLY WITH BLADE (Incl. 72) MTD-753-1191
...
72
BLADE ASSEMBLY MTD-791-682061
...
73
SCREW-GUARD MTG PK MTD-791-683304
...
74
HEAD ASSEMBLY CNT/AF (LH) LRG (Incl. 75) MTD-841-012478S
...
75
BUMP KNOB MTD-753-08563
...
76
THROTTLE CABLE MTD-746P04758
...
77
BLADE 4-TOOTH MTD-791-145873B
...
78
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
79
BLADE LOCK NUT MTD-712-04105
...
xx
KIT, BLADE RETAINING ST SHAFT (Incl. 78 and 79) MTD-791-180014B
...
xx
TOOL-LOCKING ROD MTD-791-613226
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
...
...
...
