Troy-Bilt TB2SC 41AS2SCG966 Gas Blower

Model: TB2SC 41AS2SCG966, 41AS2SCG966 TB2SC

Back To Assemblies

Save Part Not Listed?
product name

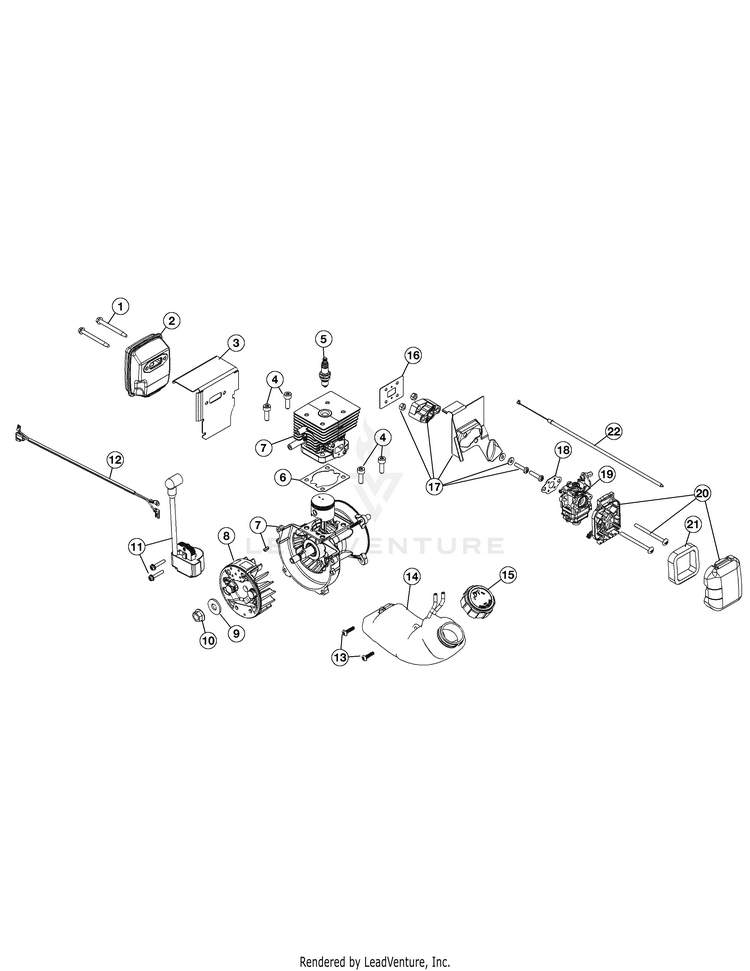

Engine Assembly

...
...
1
Muffler Screws MTD-710-04188A
...
2
Muffler Assembly (Incl. Ref No. 1 & 3) MTD-753-06027
...
3
Muffler Gasket MTD-753-05946
...
4
Screw MTD-710-04715
...
5
Spark Plug MTD-794-00082
...
6
CYLINDER GASKET MTD-753-05704
...
7
SHORT BLOCK (Incl. Ref No. 4, 6 & 8-11) MTD-753-06028
...
8
FLYWHEEL ASSEMBLY MTD-753-05948
...
9
Washer MTD-736-04107
...
10
Nut MTD-712-04137
...
11
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
12
Lead Wire MTD-753-05949
...
13
Screw MTD-710-04194
...
14
FUEL TANK ASSEMBLY (Incl. Ref No. 13 & 15) MTD-753-05950
...
15
Fuel Cap MTD-791-182529
...
16
INSULATOR GASKET MTD-753-05702
...
17
INSULATOR ASSEMBLY BKPK (Incl. Ref No. 16) MTD-753-05632
...
18
Carburetor Gasket MTD-791-181709
...
19
Carburetor Assembly (Incl. Ref No. 18) MTD-753-05951
...
20
Aircleaner Assembly (Incl. Ref No. 21) MTD-753-05634
...
21
Air Filter MTD-791-181757
...
22
THROTTLE CABLE MTD-753-05952
