Troy-Bilt TB2MB 41BS2MEB866 Gas Blower

Model: TB2MB 41BS2MEB866, 41BS2MEB866 TB2MB

Save Part Not Listed?
product name

Engine Assembly

...
...
1
Adapter MTD-753-05705
...
2
Bearing Holder Assembly (Incl. 3 and 4) MTD-753-08280
...
3
Screw (4) MTD-710-04742A
...
4
BEARING HOLDER MTD-753-08281
...
5
Front Engine Cover Assembly MTD-753-08282
...
6
Muffler Assembly MTD-751-14556
...
7
Spark Plug Cover MTD-753-06362
...
8
SHORT BLOCK MTD-753-08283
...
9
Spark Plug MTD-753-06847
...
10
Module Assembly MTD-753-08369
...
11
Rear Engine Cover Assembly MTD-753-08370
...
12
Insulator Assembly (Incl. 13 and 14) MTD-753-08287
...
13
Insulator O-Ring MTD-753-06184
...
14
Carburetor O-Ring MTD-753-06185
...
15
Gasket MTD-721-04721
...
16
Carburetor MTD-753-06288
...
17
Carburetor Gasket MTD-753-06253
...
18
Air Cleaner Assembly MTD-753-06500
...
19
Air Cleaner Filter MTD-753-06417
...
20
Lead Wire Assembly MTD-753-08289
...
21
Fuel Tank Assembly (Incl. 22) MTD-753-08288
...
22
Screw (x2) MTD-791-181930
...
23
Throttle Cable MTD-946-05128

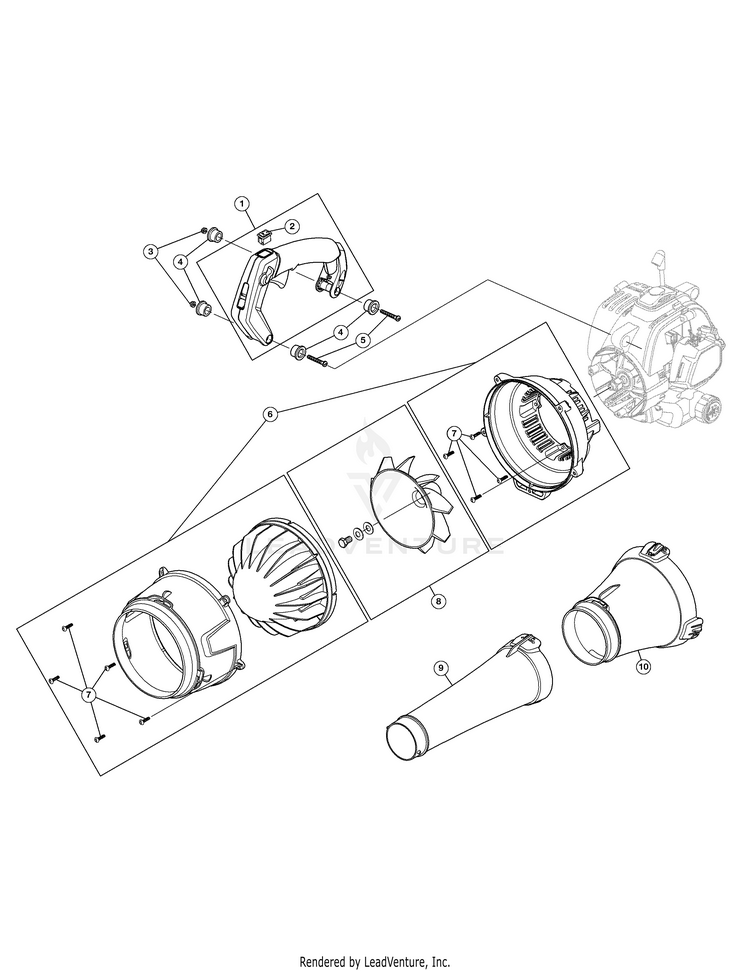

General Assembly

...
...
1
Handle Assembly MTD-753-08292
...
2
Switch MTD-791-182405
...
3
Nut (x2) MTD-712-0161
...
4
Isolator (x4) MTD-753-08293
...
5
Clamp Screw MTD-9689A
...
6
FAN ASSEMBLY HOUSING FR/RR MTD-753-08296
...
7
Screw (x9) MTD-710-04194
...
8
FAN ASSEMBLY BLOWER MTD-753-08290
...
9
Lower Tube MTD-931-09977A
...
10
UPPER BLOWER TUBE MTD-931-09978
...
xx
STARTER ACCS - ELEC TROY-BILT (Optional Accessory) MTD-49M2027P966
...
xx
LITHIUM BATTERY STARTER (Optional Accessory) MTD-49MRBESY953
...
xx
START CHUCK (TROY-BILT) (Optional Accessory) MTD-49MASCBP966
...
xx
Oil, 2-Cycle 16 OZ. (Optional Accessory) MTD-OL-216-OM
