Troy-Bilt TB27PHEC 41AD27PH766 Gas Trimmer

Model: 1156793

Back To Assemblies

Save Part Not Listed?
product name

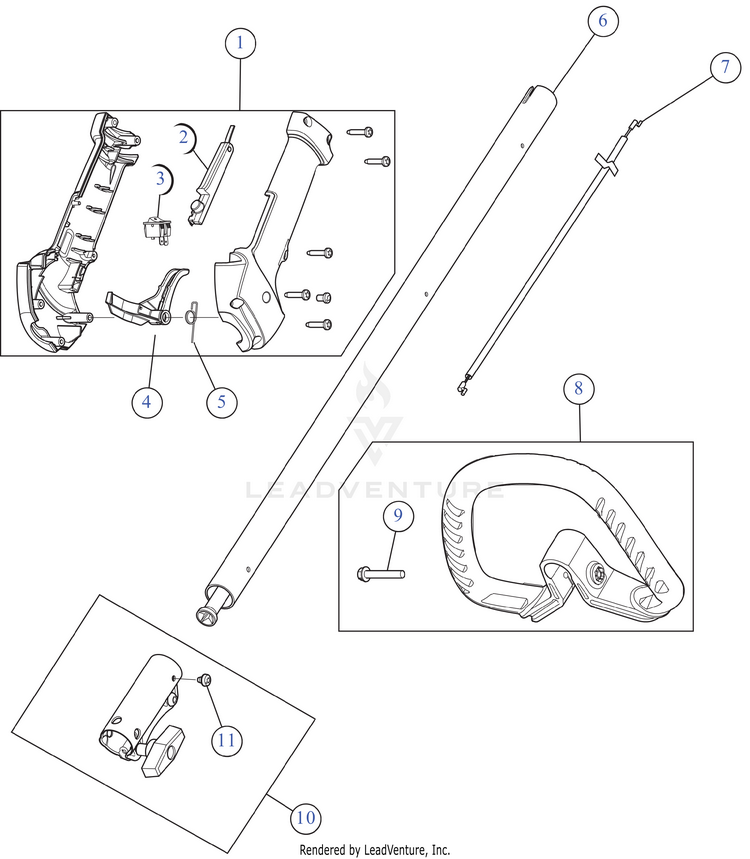

General Assembly

...
...
1
THROTTLE GRIP ASSEMBLY (Incl. 2 - 5) MTD-753-08344
...
2
LEVER LOCK OUT MTD-731-08433C-10
...
3
SW, MOMENTARY ON/O MTD-791-182405
...
4
THROTTLE TRIGGER MTD-731-04970B-10
...
5
TRIGGER SPRING MTD-753-05007
...
6
BOOM ASSEMBLY UPR MTD-753-06880
...
7
THROTTLE CABLE MTD-753-06825
...
8
HANDLE ASSEMBLY (Incl. 9) MTD-753-06039
...
9
BOLT 1/4-20X1 1/2 MTD-753-06040
...
10
SPLIT BOOM COUPLER KIT (Incl. 11) MTD-753-1190
...
11
SCREW, 10-32X.250 TA MTD-791-182057
