Troy-Bilt TB227XP 41AD272X966 Gas Trimmer

Model: TB227XP 41AD272X966

Back To Assemblies

Save Part Not Listed?
product name

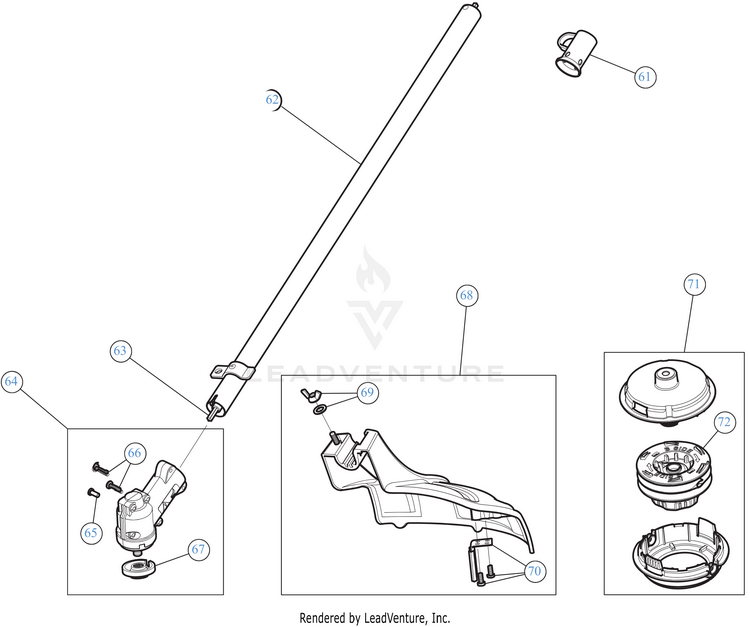

Trimmer

...
...
61
HANGER MTD-731-08926
...
62
LOWER SHAFT HOUSING (Incl. 63) MTD-841-034294S
...
63
LOWER DRIVE SHAFT MTD-753-05267
...
64
GEARBOX LCBC (Incl. 65 - 67) MTD-753-08180
...
65
SCREW, 8-32 x .312 P MTD-791-182519
...
66
SCREW #10-24X11/16 T-25 MTD-791-182195
...
67
CUTTING HEAD SPACER MTD-748-05052
...
68
GUARD/BLADE ASM (Incl. 69 & 70) MTD-841-032093S
...
69
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
70
BLADE ASSEMBLY W/HDW MTD-753-08355
...
71
COMPLETE HEAD ASSEMBLY (Incl. 72) MTD-841-013303S
...
72
BUMP KNOB MTD-753-08563
