Troy-Bilt TB227XP 41AD272X966 Gas Trimmer

Model: TB227XP 41AD272X966

Back To Assemblies

Save Part Not Listed?
product name

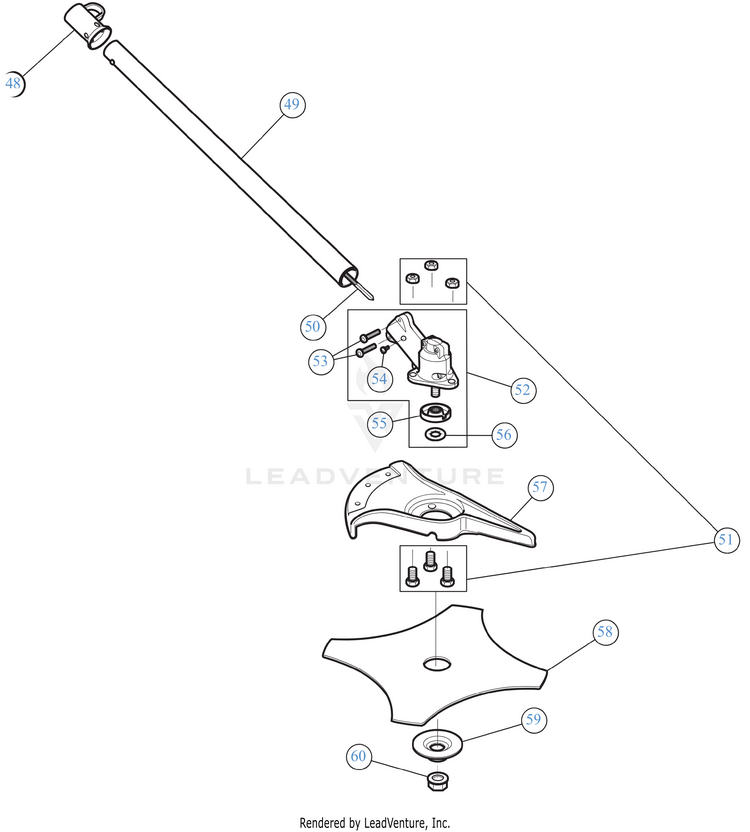

Brushcutter

...
...
48
HANGER MTD-731-08926
...
49
BOOM ASM:LWR:SS:SLVR:29.375" 8/1/22 & After MTD-753-11387
...
49
BOOM ASSEMBLY LOWER MTD-753-06789
...
50
LOWER DRIVE SHAFT MTD-753-05267
...
51
SCREW SET-GUARD MT MTD-791-182200
...
52
GEARBOX (incl. 53 - 56) MTD-753-11244
...
53
SCREW #10-24X11/16 T-25 MTD-791-182195
...
54
SCREW, 8-32 x .312 P MTD-791-182519
...
55
SPACER-GEARBOX MTD-791-182196
...
56
PALNUT:3/8" DIAM MTD-753-04348
...
57
SHIELD-BLADE CAST MTD-791-147492
...
58
BLADE 4-TOOTH MTD-791-145873B
...
59
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
60
BLADE LOCK NUT MTD-712-04105
...
xx
KIT, BLADE RETAINING ST SHAFT (Incl. 59 and 60) MTD-791-180014B
...
xx
LOCKING ROD TOOL MTD-732-05168
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
