Troy-Bilt TB227XP 41AD272X966 Gas Trimmer

Model: TB227XP 41AD272X966

Back To Assemblies

Save Part Not Listed?
product name

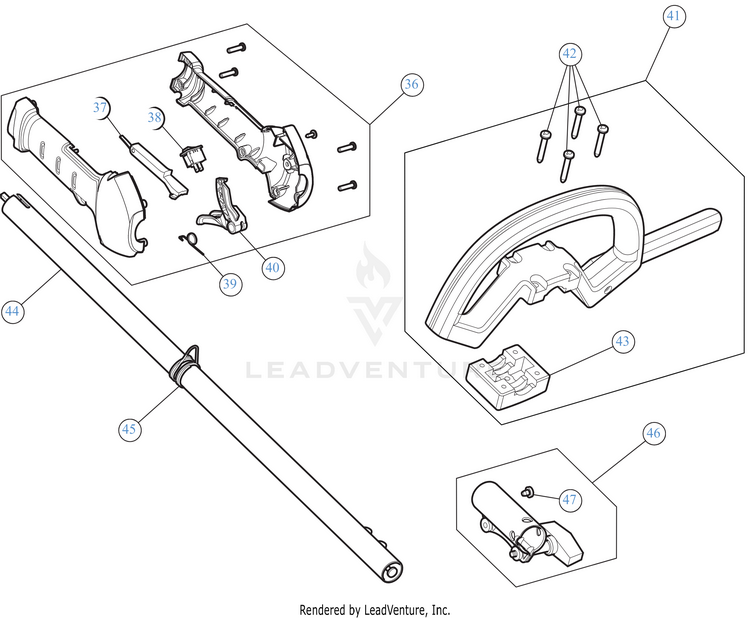

Handle Assembly

...
...
36
THROTTLE HOUSING ASSEMBLY (incl. 37 - 40) MTD-753-08564
...
37
LEVER LOCK OUT MTD-731-08433C-10
...
38
SW, MOMENTARY ON/O MTD-791-182405
...
39
TRIGGER SPRING MTD-753-05007
...
40
THROTTLE TRIGGER MTD-731-11788-10
...
41
HANDLE:D (Incl. 42 & 43) MTD-753-05008
...
42
SCREW MTD-791-181070
...
43
Deluxe D-Handle Base MTD-753-05009
...
44
BOOM ASSEMBLY UPR MTD-753-06682
...
45
SHOULDER STRAP CLAMP MTD-4301A
...
45
CLAMP-SHOULDER STR MTD-791-610327
...
46
CLICK LINK (Incl. 47) MTD-753-10964
...
47
SCREW, 10-32X.250 TA MTD-791-182057
