Troy-Bilt TB227XP 41AD272X966 Gas Trimmer

Model: TB227XP 41AD272X966

Back To Assemblies

Save Part Not Listed?
product name

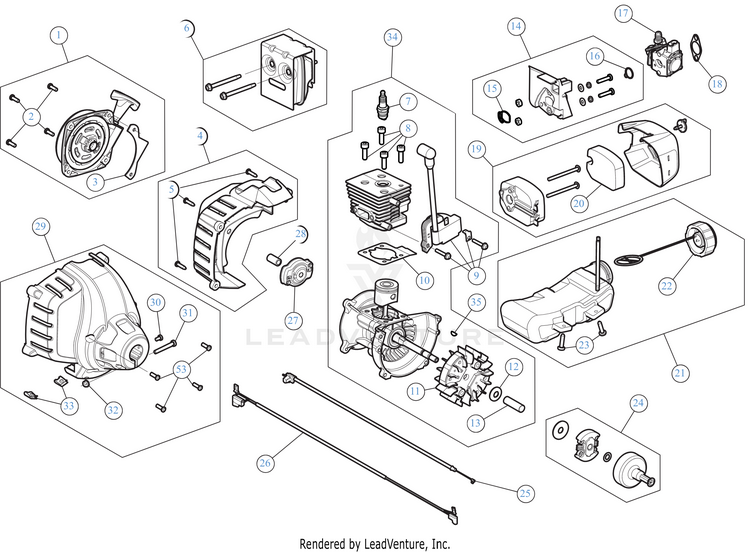

Engine Assembly

...
...
1
STARTER ASSEMBLY MTD-841-015769S
...
2
SCREW:10-32X.5 MTD-1964
...
3
STARTER GUARD (Incl. 2) MTD-753-06244
...
4
REAR ENGINE COVER (Incl. 5) MTD-753-06245
...
5
SCREW, #8-16X.750 PH MTD-791-181345
...
6
MUFFLER ASSEMBLY MTD-753-08745
...
7
SPARK PLUG MTD-753-06847
...
8
SCREW 1/4 x 20 x .8125 MTD-710-04715
...
9
MODULE MTD-753-06892
...
10
GASKET CYL MTD-753-06827
...
11
FLYWHEEL ASSEMBLY 27CC MTD-753-06246
...
12
BELL WASHER MTD-753-06247
...
13
SPACER MTD-753-06248
...
14
INTAKE ASSEMBLY (Incl. 15 & 16) MTD-753-06189
...
15
O-RING MTD-753-06184
...
16
O-RING MTD-753-06185
...
17
CARBURETOR MTD-753-06190
...
18
GASKET CARB MTD-753-06253
...
19
AIR CLEANER ASSEMBLY (Incl. 20) MTD-753-06913
...
20
AIR FILTER MTD-753-06954
...
21
FUEL TANK ASSEMBLY (Incl. 22 & 23) MTD-753-06250
...
22
FUEL CAP MTD-753-06857
...
23
SCREW:10-6 x .75 MTD-791-181930
...
24
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
25
THROTTLE CABLE MTD-753-06570
...
26
LEAD WIRES MTD-753-05877
...
27
PAWL ASSEMBLY AC5 MTD-753-06091
...
28
ELECTRIC START ADP MTD-753-06104
...
29
CLUTCH COVER (incl. 30 - 33 & 53) MTD-841-015771S
...
30
SCREW, 8-32 x .312 P MTD-791-182519
...
31
SCREW MTD-9689A
...
32
HEX NUT MTD-712-0161
...
33
NUT, TINNERMAN U-T MTD-791-182366
...
34
SHORT BLOCK ASSEMBLY (incl. 7 - 13 & 35) MTD-753-08582
...
35
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
