Troy-Bilt TB20CS 41CDT20C966 Gas Trimmer

Model: TB20CS 41CDT20C966, 41CDT20C966 TB20CS

Back To Assemblies

Save Part Not Listed?
product name

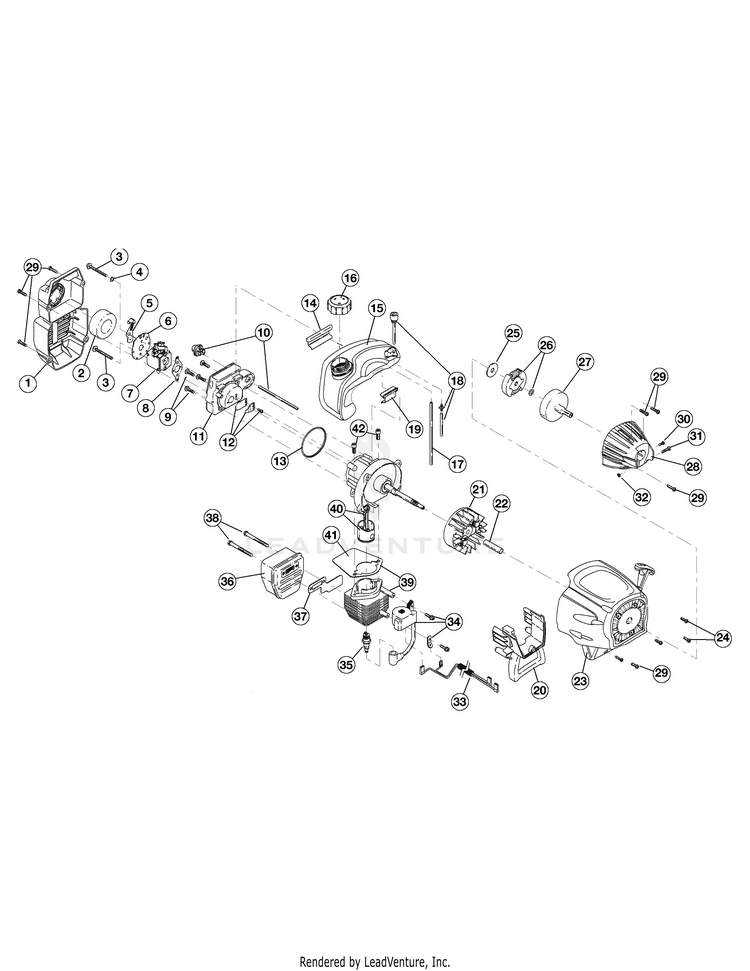

Engine Assembly

...
...
1
Air Cleaner Cover Assembly (Incl. Ref No. 2 & 29) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
PLATE ASSEMBLY:CHOKE:WV (Incl. Ref No. 5) MTD-753-04419
...
7
DUAL CARBURETOR ASSEMBLY (Incl. Ref No. 8 & 18) MTD-753-05133
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
Primer & Hose Assembly MTD-791-683974B
...
11
CARBURETOR MOUNT ASSEMBLY (Incl. Ref No. 9, 12 & 13) MTD-753-1196
...
12
REED VALVE ASSEMBLY MTD-791-684451
...
13
O-Ring MTD-721-04163
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:BK CAP W/ (Incl. Ref No. 16-18) MTD-753-04307
...
16
Fuel Cap Assembly MTD-791-182529
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-753-04233
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXT ASSEMBLY:SHRD (Incl. Ref No. 29) MTD-753-05091
...
21
Flywheel Assembly MTD-753-05240
...
21
Woodruff Key.125 x .375 Not shown MTD-914-04016
...
22
Spacer MTD-791-181525
...
23
STARTER HOUSING (Incl. Ref No. 24 & 29) MTD-753-05775
...
24
SCREW:10-32X.5 MTD-1964
...
25
Washer MTD-9162-1
...
26
CLUTCH ASSEMBLY 3/8-24 NORAM MTD-753-05722
...
27
CLUTCH DRUM ASSEMBLY MTD-753-05723
...
28
CLUTCH HOUSING (Incl. Ref No. 29-32) MTD-753-04403
...
29
Cover Screw MTD-791-181345
...
30
Anti-Rotation Screw MTD-791-182519
...
31
Clamp Screw MTD-9689A
...
32
Nut-Hex Ins L-#10- MTD-712-0161
...
33
WIRE:LEAD:RED/BK MTD-753-05025
...
34
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
35
Spark Plug MTD-791-610311B
...
36
MUFFLER ASM CAT NLAUD (Incl. Ref No. 37, 38 & Spark Arrestor) MTD-753-05169
...
37
Exhaust Gasket MTD-753-04619
...
38
Muffler Screws MTD-710-04188A
...
39
Cylinder Assembly (Incl. Ref No. 41 & 42) MTD-753-04814
...
40
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
41
Cylinder Gasket MTD-753-04182
...
42
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring Set Not Shown MTD-753-1209
...
xx
SHORT BLOCK Not Shown (includes Crankcase, 9, 35 & 39-42) MTD-753-04812
...
xx
Clutch Springs Not Shown MTD-791-181599
