Troy-Bilt TB20CS 41CDT20C966 Gas Trimmer

Model: TB20CS 41CDT20C966, 41CDT20C966 TB20CS

Back To Assemblies

Save Part Not Listed?
product name

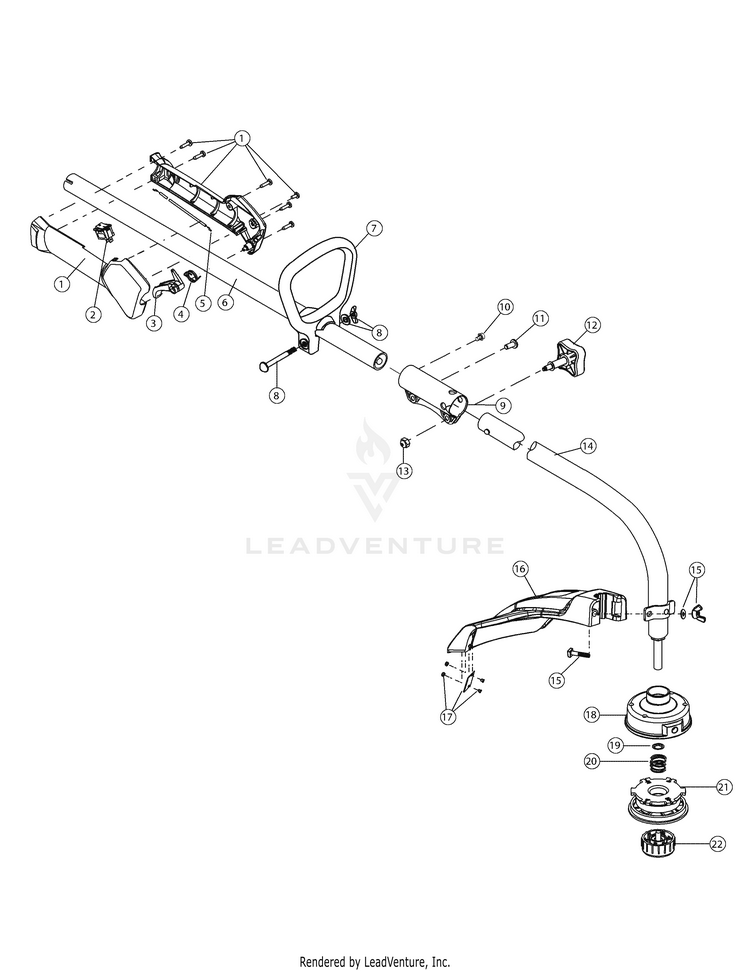

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Throttle Cable MTD-753-04405
...
6
Upper Drive Shaft Housing Assembly MTD-753-04344
...
7
D-HANDLE AND HARDWARE (Incl. Ref No. 8) MTD-791-153064
...
8
D-Handle Hardware MTD-791-181587
...
9
Split Boom Coupler (Incl. Ref No. 10-13) MTD-753-1190
...
10
Screw MTD-791-182057
...
11
Bolt MTD-791-181617
...
12
ADJUSTMENT KNO (Incl. Ref No. 13) MTD-791-181951
...
13
Knob Retaining Nut MTD-712-04018A
...
14
Lower Drive Shaft Housing Assembly MTD-753-04508
...
15
Guard Mounting Hardware MTD-753-04282
...
16
Guard Assembly (Incl. Ref No. 17) MTD-753-04283
...
17
Blade Assembly MTD-791-180553
...
18
OUTER REEL W/RETAINING RING (Incl. Ref No. 19) MTD-753-04284
...
19
Retainer MTD-791-610660
...
20
Spring MTD-791-610317B
...
21
Inner Reel MTD-753-1155
...
22
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Not Shown MTD-953-1156
...
xx
Fixed Line Insert Not Shown MTD-753-05778
