Troy-Bilt TB20CS 41ADT20C711 Gas Trimmer

Model: TB20CS 41ADT20C711, 41ADT20C711 TB20CS

Back To Assemblies

Save Part Not Listed?
product name

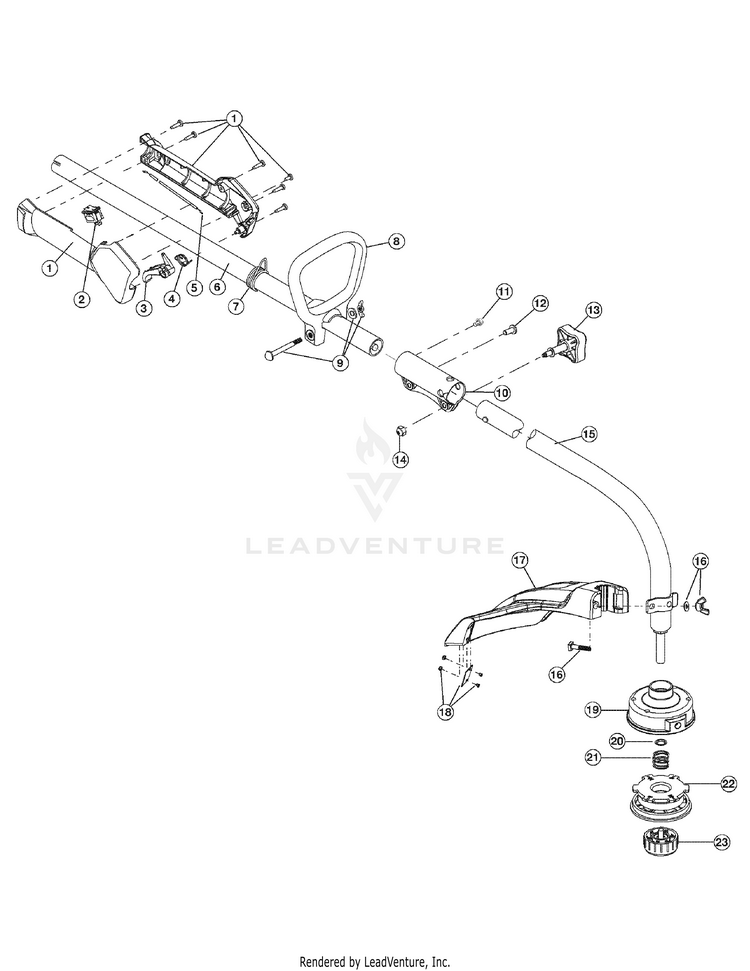

Boom and Trimmer Parts

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04829
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Throttle Cable MTD-753-04405
...
6
Upper Drive Shaft Housing Assembly MTD-753-04236
...
7
SHOULDER STRAP CLAMP MTD-4301A
...
7
Harness Clip MTD-791-610327
...
8
D-HANDLE AND HARDWARE MTD-791-153064
...
9
Handle Hardware MTD-791-181587
...
10
Split Boom Coupler (includes 11-14) MTD-753-1190
...
11
Screw MTD-791-182057
...
12
Bolt MTD-791-181617
...
13
CLICK LINK CLAMP MTD-697-00661-9
...
14
Knob Retaining Nut MTD-712-04018A
...
15
Lower Drive Shaft Housing Assembly MTD-753-04508
...
16
Guard Mounting Hardware MTD-753-04282
...
17
Guard (includes 18) MTD-753-04283
...
18
Blade Assembly MTD-791-180553
...
19
OUTER REEL W/RETAINING RING MTD-753-04284
...
20
Retainer MTD-791-610660
...
21
Spring MTD-791-610317B
...
22
Inner Reel MTD-753-1155
...
23
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel and Line Assembly (NOT SHOWN) MTD-791-153577B
...
xx
Shoulder Strap Assembly (NOT SHOWN) MTD-791-682075B
