Troy-Bilt TB2040XP 41AD2040766 Gas Trimmer

Model: TB2040XP 41AD2040766, 41AD2040766 TB2040XP

Back To Assemblies

Save Part Not Listed?
product name

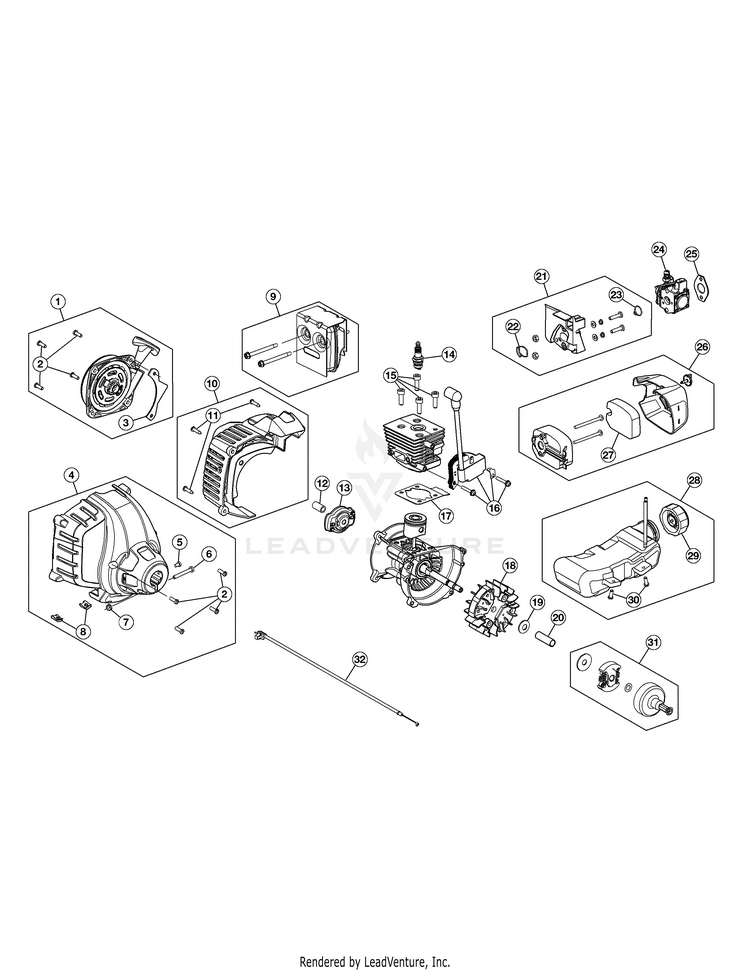

Engine Assembly

...
...
1
Starter Assembly (Incl. 2 & 3) MTD-753-06878
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. 2) MTD-753-06244
...
4
Clutch Cover Assembly (Incl. 2, 5 - 8) MTD-753-06879
...
5
Anti-rotation Screw MTD-791-182519
...
6
Clamp Screw MTD-9689A
...
7
Clamp Nut MTD-712-0161
...
8
U-shaped Nut MTD-791-182366
...
9
Muffler Assembly MTD-753-08745
...
10
REAR ENGINE COVER MTD-753-06245
...
11
Cover Screw MTD-791-181345
...
12
Adapter MTD-753-06104
...
13
Pawl Assembly MTD-753-06091
...
14
Spark Plug MTD-753-06847
...
15
Cylinder Bolt MTD-710-04715
...
16
Module Assembly MTD-753-06303
...
17
Cylinder Gasket MTD-753-06827
...
18
Flywheel Assembly MTD-753-06246
...
19
Washer MTD-753-06247
...
20
Spacer MTD-753-06248
...
21
Insulator Assembly (Incl. 22 and 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06288
...
25
Carburetor Gasket MTD-753-06253
...
26
AIRCLEANER ASSEMBLY MTD-753-06953
...
27
Air Cleaner Filter MTD-753-06954
...
28
Fuel Tank Assembly (Incl. 18 and 19) MTD-753-06250
...
29
Fuel Cap MTD-753-06857
...
30
Fuel Tank Screw MTD-791-181930
...
31
Clutch Assembly MTD-753-05860
...
32
Lead Wires MTD-753-05877
...
xx
SHORT BLOCK (Incl. Crankcase, Cylinder, Piston, 8 - 11, 23 - 26)(not shown) MTD-753-06885
