Troy-Bilt TB2040XP 41AD2040766 Gas Trimmer

Model: TB2040XP 41AD2040766, 41AD2040766 TB2040XP

Back To Assemblies

Save Part Not Listed?
product name

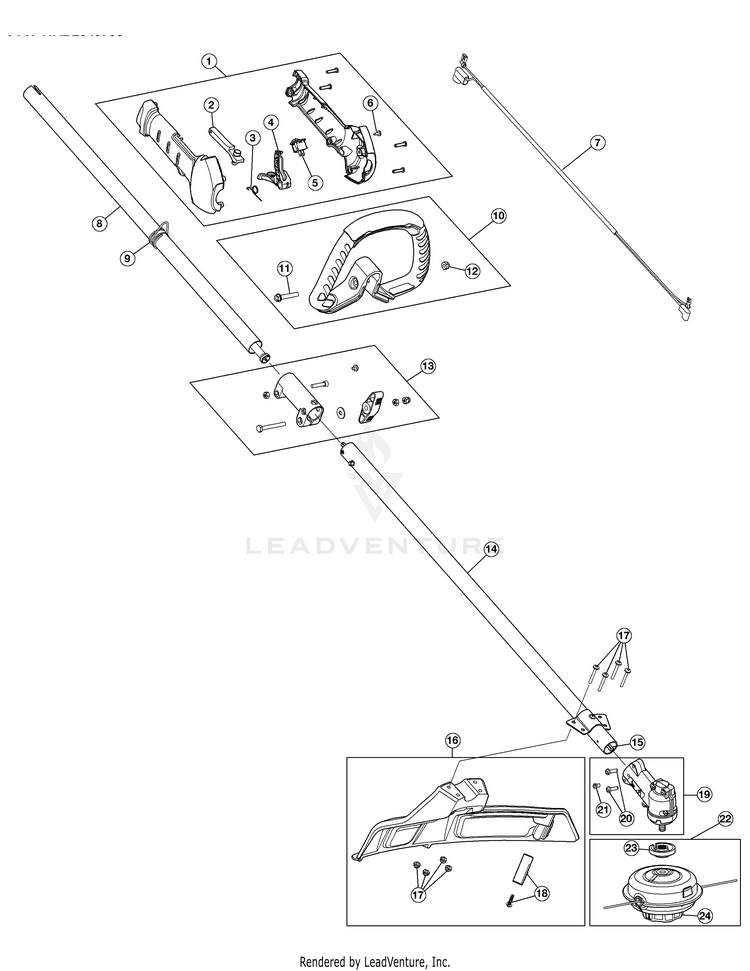

General Assembly

...
...
1
THROTTLE GRIP ASSEMBLY MTD-753-06887
...
2
LOCK OUT LEVER MTD-731-04971B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
Throttle Housing Assembly (Incl. 2 - 5) MTD-753-08564
...
5
Switch MTD-791-182405
...
6
Grip Anti-Rotation Screw MTD-791-182519
...
7
Throttle Cable MTD-946-04824
...
8
Upper Drive Shaft Housing MTD-753-06682
...
9
SHOULDER STRAP CLAMP MTD-4301A
...
9
Shoulder Strap Clip MTD-791-610327
...
10
D-Handle Assembly (Incl. 11 and 12) MTD-753-06889
...
11
Bolt MTD-753-06040
...
12
Nut MTD-712-0324
...
13
Split Boom Coupler MTD-753-06886
...
14
BOOM ASSEMBLY LOWER SLVR MTD-753-08162
...
15
LOWER DRIVE SHAFT MTD-753-05267
...
16
Shield Assembly (Incl. 17) MTD-753-05820
...
17
Shield Mounting Screws and Nuts MTD-753-06125
...
18
Blade Assembly MTD-753-05821
...
19
Gearbox Assembly (Incl. 20 - 24) MTD-753-08180
...
20
SCREW #10-24X11/16 T-25 MTD-791-182195
...
21
Anti-Rotation Screw MTD-791-182519
...
22
Cutting Head Assembly MTD-841-032392S
...
23
Cutting Head Driver MTD-748-05052
...
24
Bump Knob MTD-753-08163
...
xx
STARTER ACCS - ELEC TROY-BILT (Optional Accessory) MTD-49M2027P966
...
xx
LITHIUM BATTERY STARTER (Optional Accessory) MTD-49MRBESY953
...
xx
START CHUCK (TROY-BILT) (Optional Accessory) MTD-49MASCBP966
...
xx
ROUND LINE-.095 (Optional Accessory) MTD-49U2341K953
...
xx
Oil, 2-Cycle 16 OZ. (Optional Accessory) MTD-OL-216-OM
