Troy-Bilt TB125QS 41ABESPG766 Electric Blower

Model: TB125QS 41ABESPG766, 41ABESPG766 TB125QS

Save Part Not Listed?
product name

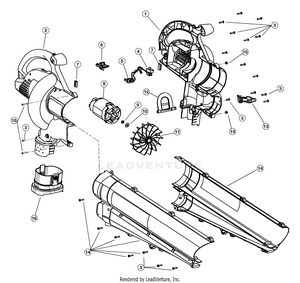

Electric Blower/Vac 120 Volt

...
...
1
MOTOR HOUSING (LH) RED MTD-753-04752
...
2
MOTOR HOUSING (RH) RED MTD-753-04751
...
3
Housing Screw MTD-791-181482
...
4
SW, ELEC. MTD-791-182546
...
5
Power Connection Wire Assembly MTD-791-182547
...
6
CVR, ELECTRIC BLWR MTD-791-180509
...
7
PAD, 1" ELEC. BLWR MTD-791-180503
...
8
MOTOR ASSEMBLY MTD-791-182548
...
9
SPACER, STEEL ELECTR MTD-791-182549
...
10
WASH, FLAT (ELEC B MTD-791-180505
...
11
Impeller MTD-791-182550
...
12
Mode Control Flapper MTD-791-182410
...
13
LEVER (includes 3) MTD-791-00050
...
14
Blower/Vac Tube Assembly (includes 22) (includes 3) MTD-791-00051
...
15
ASSEMBLY, TUBE MOUNTING MTD-791-182425
...
16
ADAPTER MTD-791-182417
...
xx
CLAMP, BAG NYLON Not Shown MTD-791-612930
...
xx
Vacuum Bag Assembly (includes 19, Vacuum Bag & Cable Tie) (not shown) (includes 16, Vacuum Bag & Cable Tie); Not Shown MTD-753-04465
...
xx
Shoulder Harness Not Shown MTD-791-682075B
...
xx
Carbon Brush Set Not Shown MTD-791-182036
...
xx
Patio Head Not Shown MTD-753-04325
