Troy-Bilt TB10CS 41ADT10G966 Gas Trimmer

Model: TB10CS 41ADT10G966, 41ADT10G966 TB10CS

Back To Assemblies

Save Part Not Listed?
product name

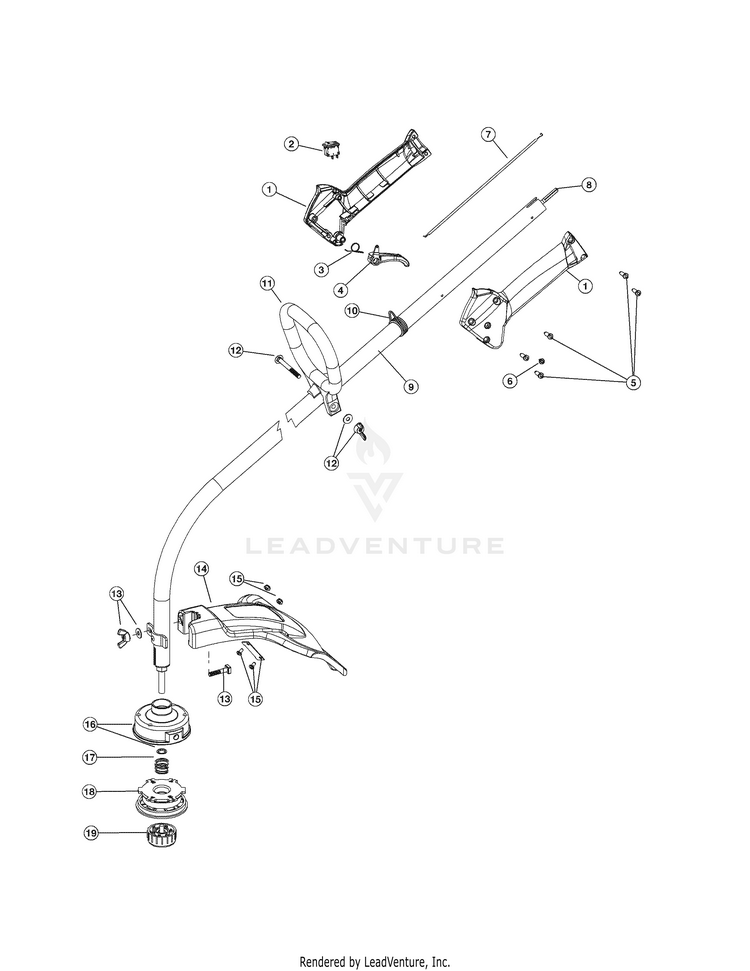

Boom and Trimmer Parts

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Switch MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Throttle Trigger MTD-753-04119
...
5
SCREW, 10-9X.750 PH MTD-791-181844
...
6
SCREW:8-18 MTD-753-04466
...
7
Throttle Cable MTD-753-04405
...
8
Flexible Drive Shaft MTD-753-04830
...
9
BOOM ASSEMBLY W/FLEX DRIVE SHAFT MTD-753-04831
...
10
SHOULDER STRAP CLAMP MTD-4301A
...
10
Harness Clip MTD-791-610327
...
11
D-HANDLE AND HARDWARE MTD-791-153064
...
12
Handle Hardware MTD-791-181587
...
13
Guard Mounting Hardware MTD-753-04282
...
14
Guard (includes 15) MTD-753-04283
...
15
Blade Assembly MTD-791-180553
...
16
OUTER REEL W/RETAINING RING MTD-753-04284
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Knob MTD-791-153066B
...
xx
Reel and Line Assembly - Optional Accessories Optional Accessories MTD-791-153577B
...
xx
Shoulder Harness Optional Accessories MTD-791-682075B
...
xx
ASSEMBLY-TWIST Optional Accessories MTD-MC-9228-332619
