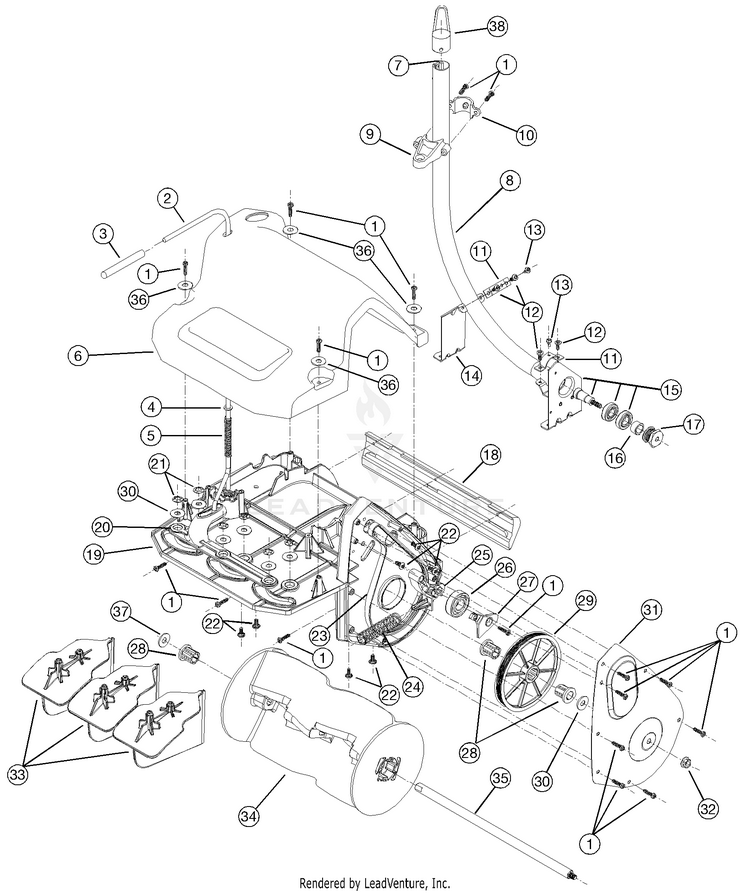

Troy-Bilt ST720r 41AJST-B054 Handheld Add Ons

Model: ST720r 41AJST-B054, 41AJST-B054 ST720r

Save Part Not Listed?
product name

Snowthrower Add-On

...
...
1
Screw MTD-791-181345
...
2
CONT:VANE:THRWR:SN MTD-791-00000
...
3
FOAM GRIP MTD-791-00001
...
4
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
5
SPRING:CONT:VANE:THRW MTD-791-00002
...
6
COVER:ATCH:SNOWTHWR MTD-753-04447
...
7
Flex Shaft MTD-791-181852
...
8
ASSEMBLY, DRIVE HOUSING MTD-791-181352
...
9
CLAMP, (LH) MTD-791-00004
...
10
CLAMP, (RH) MTD-791-00005
...
11
CLAMP MTD-791-181355
...
12
SCR, SHEET MTD-791-181353
...
13
SCREW, #10-16 x 3/8" MTD-791-181607
...
14
BRACKET, DRIVE HOU MTD-791-00006
...
15
BRACKET, DRIVE HOU MTD-791-00007
...
16
SPACER MTD-791-00008
...
17
PULLEY:DR: MTD-791-00009
...
18
SCRAPER MTD-791-00010
...
19
HOUSING:ATCH:SNOWTHWR MTD-753-04446
...
20
VANE CONTROL MTD-791-00012
...
21
PUSH NUT MTD-791-00013
...
22
SCREW, SHEET METAL/P MTD-791-181372
...
23
Drive Belt MTD-791-00014
...
24
SPRING MTD-791-00015
...
25
IDLER ARM MTD-791-00016
...
26
BALL BEARING MTD-941-0600
...
27
KEEPER MTD-791-00017
...
28
Hex Flange Brg. .504" I.D. MTD-741-0503
...
29
DRIVEN PULLEY MTD-791-00018
...
30
Washer MTD-736-0159
...
31
Belt Case Cover MTD-791-00019
...
32
Flange Lock Nut MTD-753-04056
...
33
VANE MTD-791-00020
...
34
SNOWTHOWER AUGE MTD-791-00021
...
35
ROTOR SHAFT MTD-791-00022
...
36
Washer MTD-791-182409
...
37
Washer MTD-791-182910
...
38
Hanger MTD-731-08926
