product name

Troy-Bilt OEM-290-259 Dozer-Snow Blade 290-259-081

Model: OEM-290-259 Dozer-Snow Blade, 290-259-081

Save
 Part Not Listed?Part Not Listed?
product name

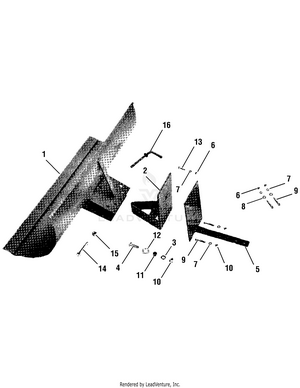

General Assembly

...
...
1
Dozer/Snow Blade MTD-GW-1157
...
2
Swivel Bracket, (A-Frame) MTD-1909773
...
3
Lockwasher, 1/2" MTD-736-0921
...
4
Hex Head Bolt, 1/2--13 x 1-1/2, MTD-710-3181
...
5
Blade Mounting Brack MTD-1909774
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
LOCK WASHER 5/16 MTD-936-0119
...
8
FLAT WASHER MTD-736-0275
...
9
SCREW 5/16-18 x 1.75 GR5 MTD-710-3180
...
10
HEX NUT MTD-712-0206
...
11
Bushing MTD-GW-1416
...
12
Flat Washer, 1/2" MTD-1100257
...
13
Hex Head Screw, 5/16-18 x 1-1/4 MTD-710-0874
...
14
SCREW-HEX 1/2-13 X 3.00 MTD-710-0182A
...
15
Hex Lock Nut, 1/2-13 MTD-912-0384
...
16
Index Pin MTD-GW-1158
...
...
...
