Troy-Bilt OEM-190-824 Electric Sleeve Hitch 190-824

Model: OEM-190-824 Electric Sleeve Hitch, 190-824

Save Part Not Listed?
product name

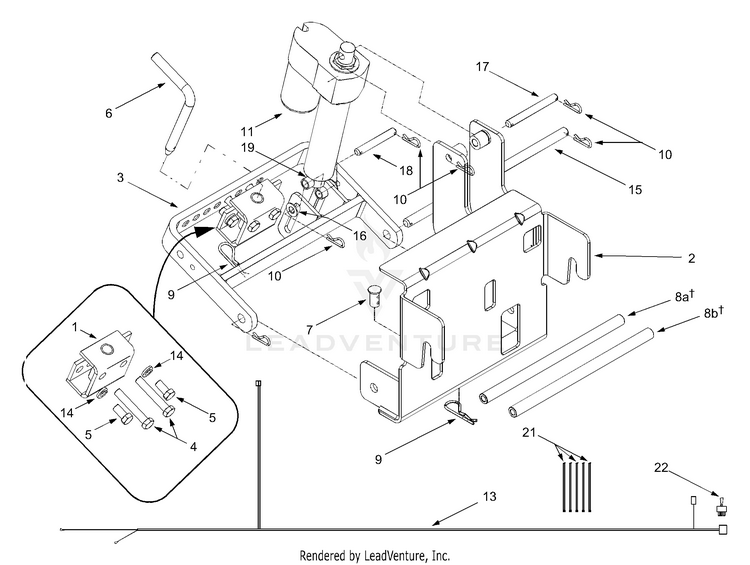

General Assembly

...
...
1
BRACKET ASSEMBLY-H MTD-13269
...
2
FAST ATTACH BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0272A-0637
...
3
HITCH SLEEVE ASSEMBLY (POWDER BLACK) MTD-683-0273-0637
...
4
SCREW-HEX 1/2-13 X 3.00 MTD-710-0182A
...
5
Hex Cap Screw, 1/2-13 x 1 (Grade 5) MTD-710-3131
...
6
HITCH PIN MTD-711-0282
...
7
Clevis Pin MTD-711-0309A
...
8A
SUPPORT ROD Tapped to accept 7/16"-20 shoulder bolts. MTD-711-1440
...
8B
ROD 3/4 x 13 x 3/8-16 Tapped to accept 3/8"-16 shoulder bolts. MTD-711-04188-0637
...
9
Internal Cotter Pin, .148 x 3 MTD-714-0117
...
10
Internal Cotter Pin MTD-714-0149B
...
11
ELECTRIC ACTUATOR MTD-917-0620
...
12
FLAT WASHER .510 x .995 MTD-736-0272
...
13
WIRE ASSEMBLY MTD-929-0919
...
14
Lock Washer, 1/2 MTD-736-0921
...
15
HITCH ROD MTD-738-0482
...
16
Flat Washer, .51 x 1.12 x .060 MTD-736-3084
...
17
UPPER CYLINDER SUPPORT ROD MTD-747-1170
...
18
LOWER CYLINDER SUPPORT ROD MTD-747-1171
...
19
Spacer, .542 x .750 x .5 MTD-750-1206
...
20
HITCH PLATE MTD-783-0668
...
21
Cable Tie MTD-725-0157
...
22
On-Off-On Toggle Switch MTD-925-1053
