Troy-Bilt OEM-190-182 Twin Bagger (2006)

Model: OEM-190-182 Twin Bagger (2006)

Save Part Not Listed?
product name

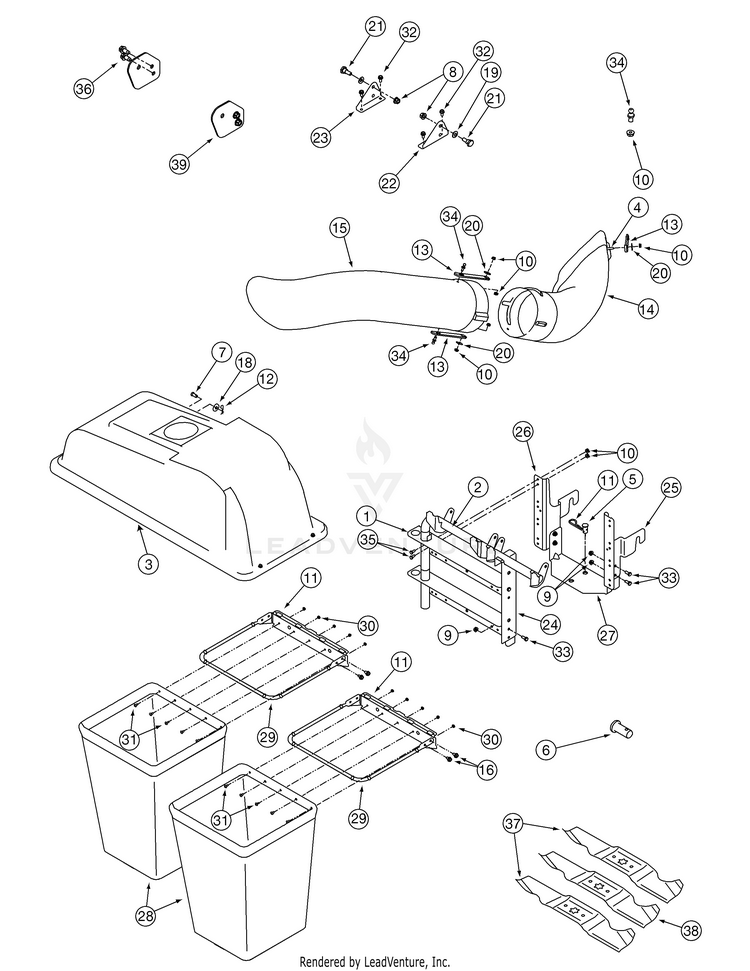

General Assembly

...
...
1
Support Bracket: Bagger MTD-16587D-0637
...
2
Support Tube Assembly MTD-16592-0637
...
3
COVER ASSEMBLY- MTD-664-04017
...
4
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
5
Clevis Pin MTD-711-0309A
...
6
Clevis Pin (on older model tractors) MTD-711-0310
...
7
Clevis Pin MTD-711-1421
...
8
Lock Nut 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
LOCK NUT 1/4 MTD-912-3027
...
11
Hairpin Clip MTD-714-0117
...
12
Click Pin MTD-714-0145
...
13
Chute Strap MTD-723-04008A
...
14
Discharge Chute Elbow, 46" Deck MTD-931-04159A
...
15
Catcher Tube MTD-731-0926B
...
16
Self-Tapping Screw 5/16-18 MTD-710-0604A
...
17
Bag Hanger Bracket MTD-16591A-0637
...
18
Bell Washer MTD-736-0331
...
19
Bell Washer MTD-736-0407
...
20
Flat Washer MTD-736-3092
...
21
Shoulder Screw MTD-738-1020
...
22
SUPPORT BRACKET (RH) MTD-983-04132A
...
23
SUPPORT BRACKET MTD-783-04137A
...
24
Mounting Bracket MTD-783-0601-0637
...
25
Mounting Bracket RH MTD-783-0673B-0637
...
26
Mounting Bracket LH MTD-783-0764B-0637
...
27
Bracket: Cross Support MTD-783-0765-0637
...
28
Grass Catcher Bag MTD-964-0221
...
29
Grass Bag Frame MTD-749-0701A-0637
...
30
Hex Sems Nut, #10-24 MTD-712-0272
...
31
Machine Screw, , #10-24 x .5 MTD-710-0473
...
32
AB Screw 5/16-12 MTD-710-0726
...
33
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
34
Grass-catcher Pin MTD-911-04069
...
35
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
36
Self-tapping Screw 3/8-16 x 0.75" MTD-710-0623
...
37
46" BLADE (STAR) MTD-742-0611A-0637
...
38
Blade, 14.88 Lg., Star 2-in-1 MTD-942-0645
...
39
SUPPORT BRACKET MTD-783-04138
...
40
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
